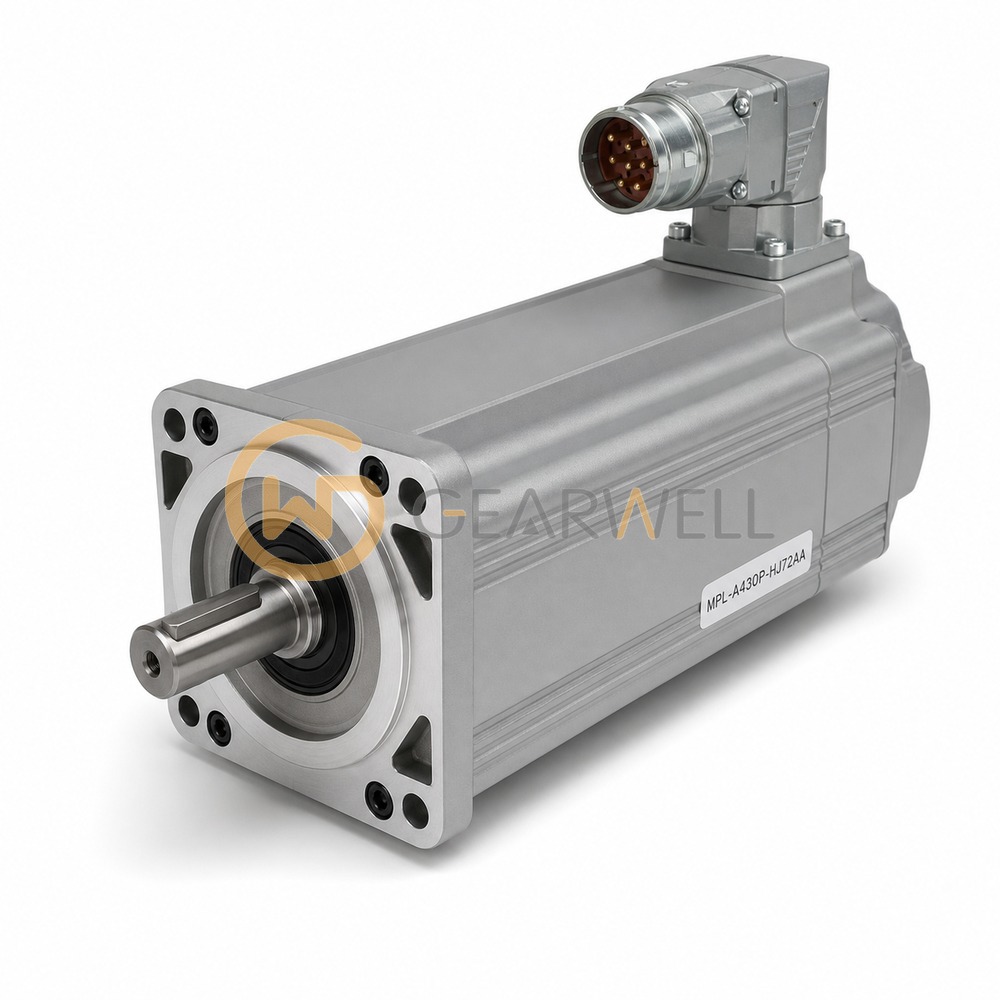

Allen-Bradley MPL-A430P-HJ72AA MP-Series Low-Inertia Servo Motor

Product overview

The Allen-Bradley MPL-A430P-HJ72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 115 mm frame, rated 2.2 kW at 5000 rpm with 5.99 N·m continuous stall torque and 19.8 N·m peak stall torque. This version has a 2000 line incremental encoder, a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
