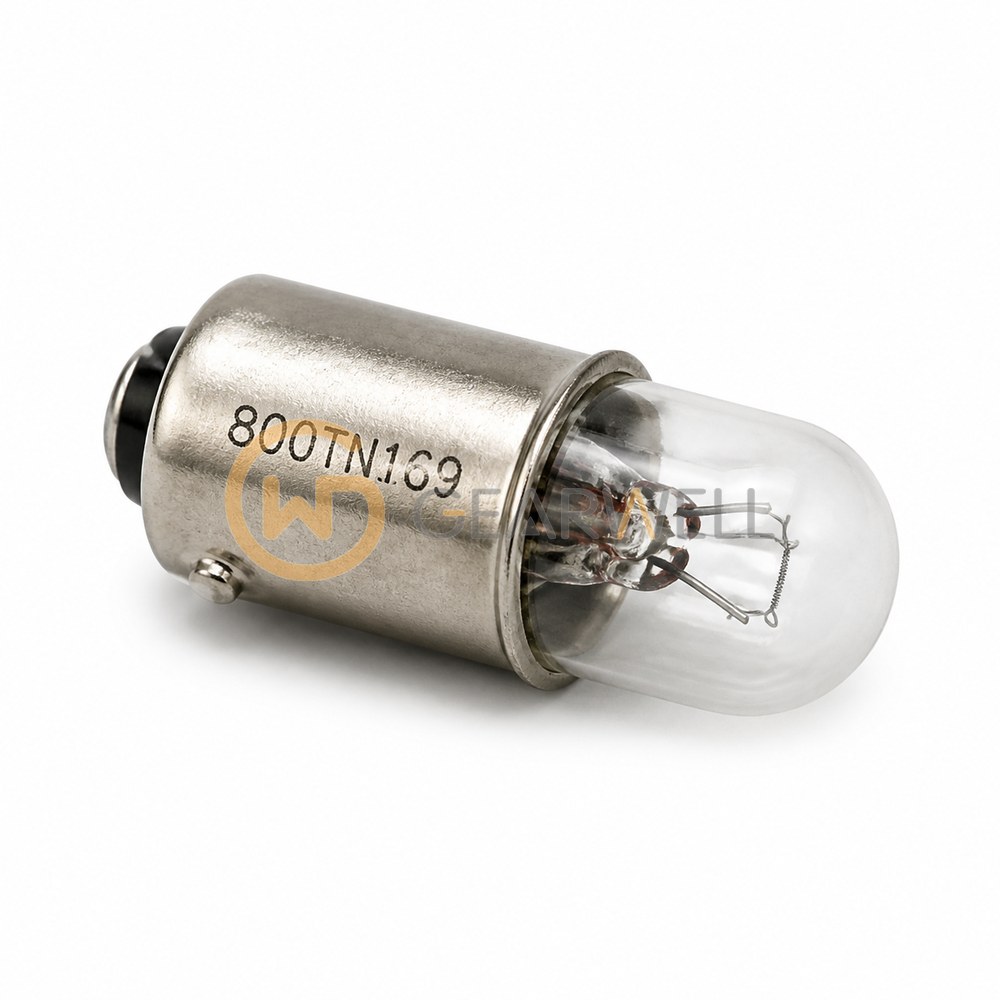

Allen-Bradley 800T-N169 Incandescent Replacement Lamp, 120 V AC/DC
- Brand
- Allen-Bradley
- Model
- 800TN169
- GEARWELL SKU
- GWP-000000195
- Category
- Industrial Automation Parts
Key specifications
- Operator series size
- 30 mm operator family; not the lamp diameter
- Lamp current, typical
- 22 mA
- Lamp voltage
- 120 V AC/DC (800-TD009L, Table 32)
- Product type
- Incandescent replacement lamp
- ANSI lamp number
- 949
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800T-N169 is an incandescent replacement lamp for 800T and 800H illuminated push buttons, selector switches and pilot lights.
Technical reference
| Product name | Allen-Bradley 800T-N169 Incandescent Replacement Lamp, 120 V AC/DC |
|---|---|
| Brand | Allen-Bradley |
| Model | 800TN169 |
| Category | Industrial Automation Parts |
| Operator series size | 30 mm operator family; not the lamp diameter |
| Lamp current, typical | 22 mA |
| Lamp voltage | 120 V AC/DC (800-TD009L, Table 32) |
| Product type | Incandescent replacement lamp |
| ANSI lamp number | 949 |
| Lifecycle status | Active |
| Lamp circuit type | Full-voltage resistor |
| Application | Replacement illumination for Bulletin 800T/800H push buttons, selector switches and pilot lights |
