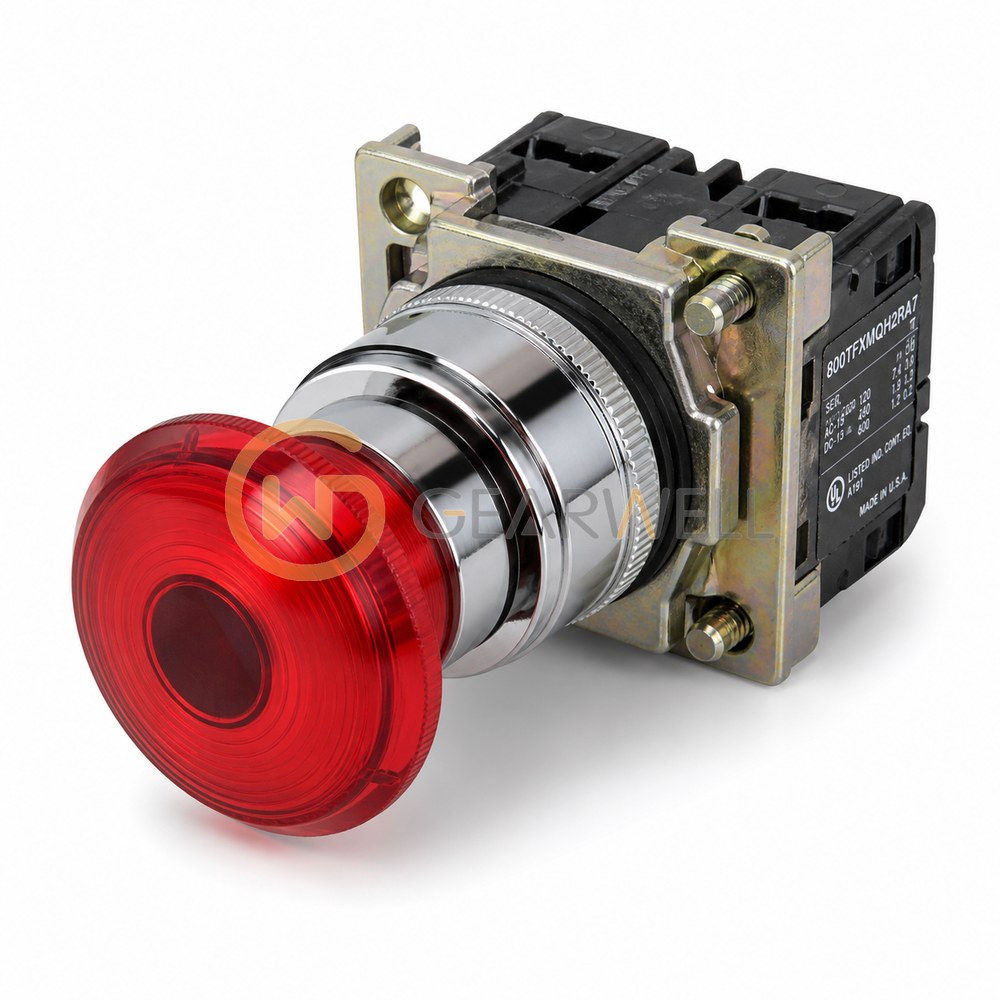

Allen-Bradley 800T-FXMQH2RA7 Red Illuminated Push-Pull Button
- Brand
- Allen-Bradley
- Model
- 800TFXMQH2RA7
- GEARWELL SKU
- GWP-000001711
- Category
- Industrial Automation Parts
Key specifications
- Type
- 30 mm three-position illuminated push-pull button
- Operator function
- OUT: momentary; CENTER: maintained; IN: maintained
- Operator cap color
- Red
- Contact configuration
- 1 N.C.L.B. + 1 N.C. (800T-XA7 standard contact block)
- Illumination lamp type
- LED
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800T-FXMQH2RA7 is an 800T 30.5 mm Type 4/13 three-position push-pull operator with a 40mm red illuminated mushroom head (out momentary, center and in maintained), a full voltage LED for 12-130V AC/DC, and 1 N.C.L.B. - 1 N.C. contacts.
Technical reference
| Product name | Allen-Bradley 800T-FXMQH2RA7 Red Illuminated Push-Pull Button |
|---|---|
| Brand | Allen-Bradley |
| Model | 800TFXMQH2RA7 |
| Category | Industrial Automation Parts |
| Type | 30 mm three-position illuminated push-pull button |
| Operator function | OUT: momentary; CENTER: maintained; IN: maintained |
| Operator cap color | Red |
| Contact configuration | 1 N.C.L.B. + 1 N.C. (800T-XA7 standard contact block) |
| Illumination lamp type | LED |
| Mounting hole diameter | 30.5 mm |
| Mushroom head diameter | 40 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Illumination module input voltage | 12...130V AC/DC |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block continuous thermal current | 10 A AC / 2.5 A DC; not the rated switching current |
| Contact block operational voltage, maximum | 600 V AC / 600 V DC; load limits depend on utilization category |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
