Allen-Bradley 800Z-GP2064 PNP Zero-Force Touch Button
- Brand
- Allen-Bradley
- Model
- 800ZGP2064
- GEARWELL SKU
- GWP-000003199
- Category
- Industrial Automation Parts
Key specifications
- Application
- General-purpose operator touch control
- Output type
- PNP sourcing transistor output
- Product type
- Zero-force electronic palm button
- Input voltage
- 10 to 30 V DC
- Product family
- Bulletin 800Z general-purpose line
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

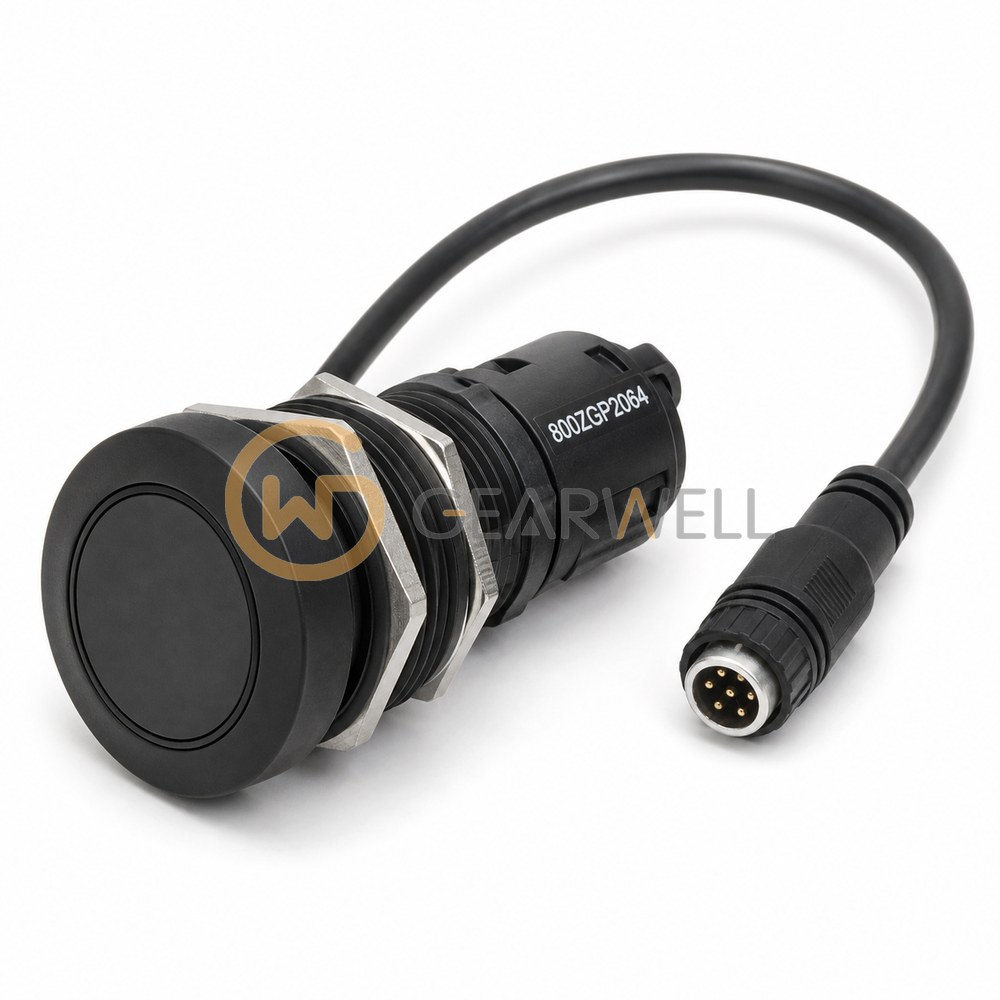

The Allen-Bradley 800Z-GP2064 is an 800Z 22.5mm zero-force momentary touch button, Type 4/4X/13 and IP66, for 10-30V DC with a PNP (sourcing) output and a 6 ft. (1.8m) cable.
Technical reference
| Product name | Allen-Bradley 800Z-GP2064 PNP Zero-Force Touch Button |
|---|---|
| Brand | Allen-Bradley |
| Model | 800ZGP2064 |
| Category | Industrial Automation Parts |
| Application | General-purpose operator touch control |
| Output type | PNP sourcing transistor output |
| Product type | Zero-force electronic palm button |
| Input voltage | 10 to 30 V DC |
| Product family | Bulletin 800Z general-purpose line |
| Switching delay, maximum | ON: 76 ms; OFF: 60 ms |
| Enclosure rating | IP66; NEMA Type 4, 4X and 13 |
| Operating action | Momentary, non-latching |
| Electrical connection | 6 ft (1.8 m), 4-wire cable |
| Mounting hole diameter | 22.5 mm |
