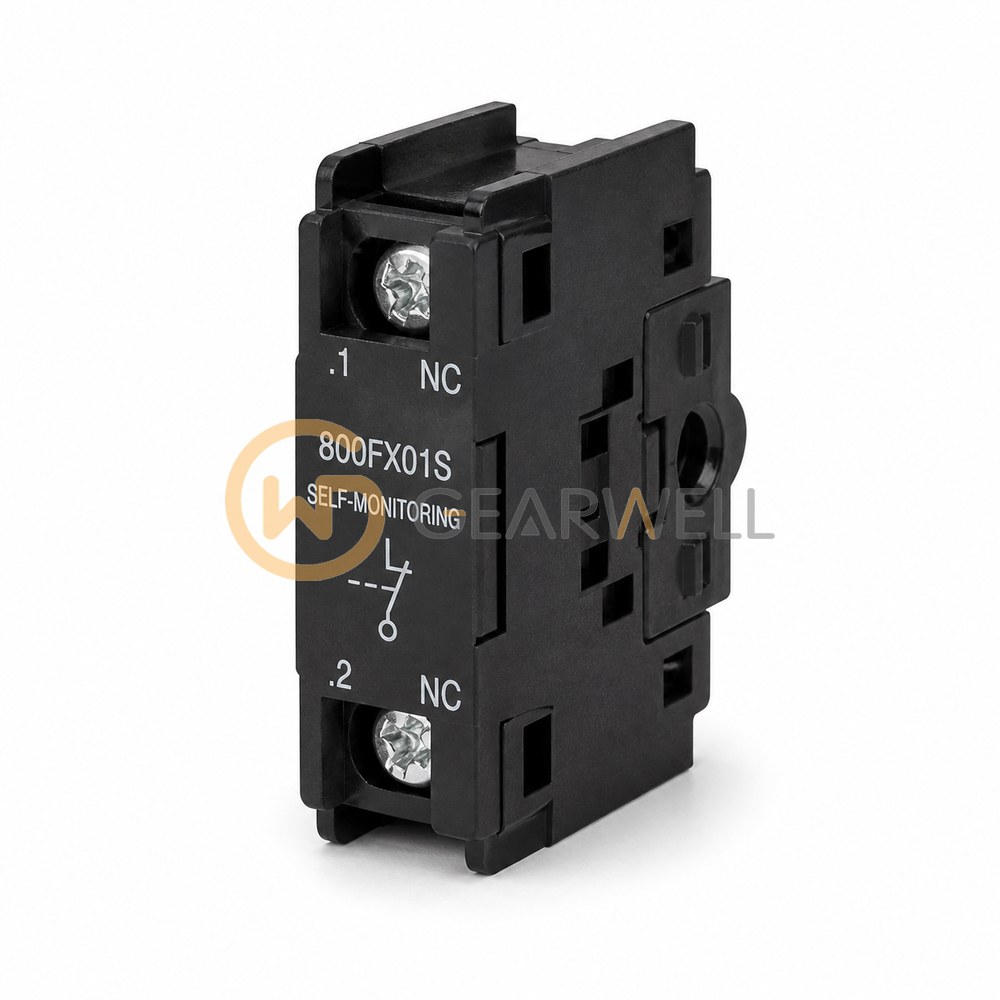

Allen-Bradley 800FX01S Self-Monitoring 1 NC Contact Block
- Brand
- Allen-Bradley
- Model
- 800FX01S
- GEARWELL SKU
- GWP-000000722
- Category
- Industrial Automation Parts
Key specifications
- Type
- 22mm Contact Block
- Mounting latch
- Not included
- Contact block type
- Self monitoring
- Contact termination
- Screw
- Contact configuration
- 1 NC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800F-X01S is a Bulletin 800F self-monitoring N.C. contact block, sold in packages of 10 (latch not included). It cannot be stacked.
Technical reference
| Product name | Allen-Bradley 800FX01S Self-Monitoring 1 NC Contact Block |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FX01S |
| Category | Industrial Automation Parts |
| Type | 22mm Contact Block |
| Mounting latch | Not included |
| Contact block type | Self monitoring |
| Contact termination | Screw |
| Contact configuration | 1 NC |
| Operating temperature (manufacturer-listed value) | -25 °C |
| Operator mounting hole dimension | 22.5 mm |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
