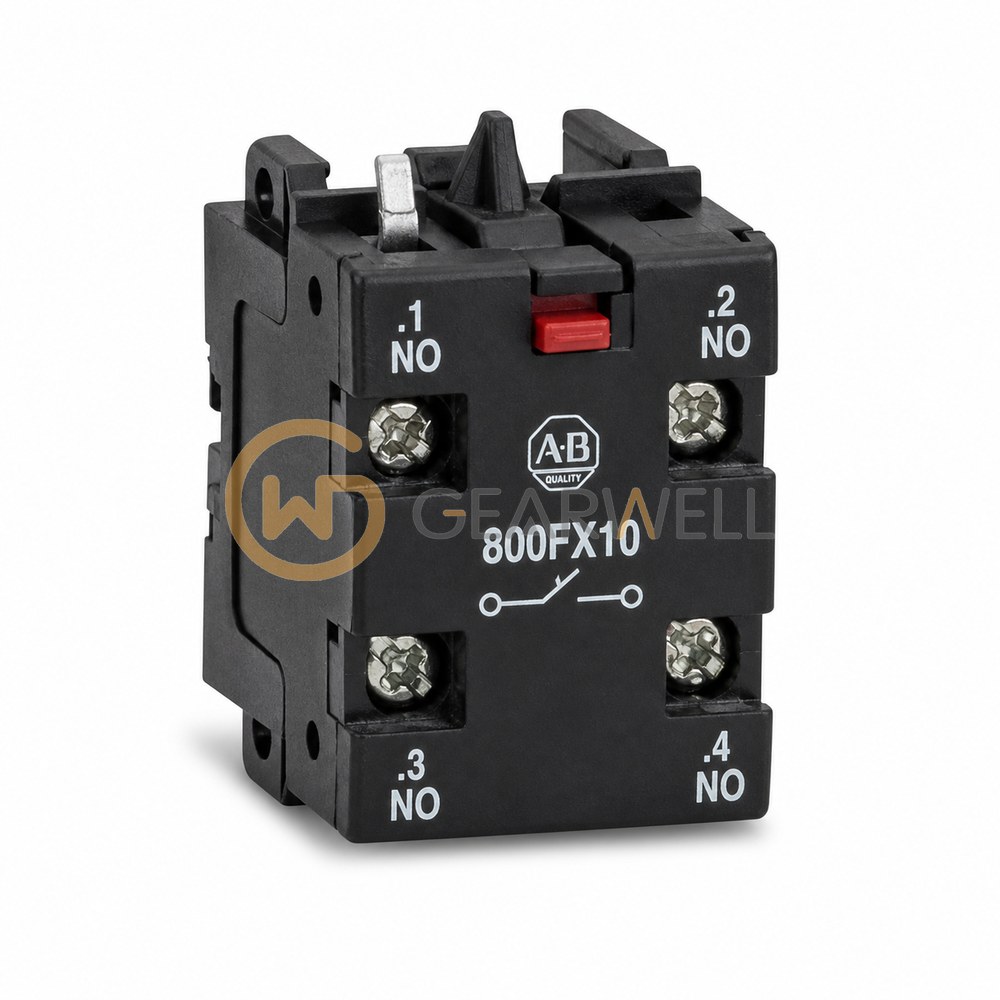

Allen-Bradley 800FX10 1 NO Screw-Terminal Contact Block
- Brand
- Allen-Bradley
- Model
- 800FX10
- GEARWELL SKU
- GWP-000002548
- Category
- Industrial Automation Parts
Key specifications
- Mounting latch
- Not included
- Contact block type
- Standard
- Contact termination
- Screw
- Storage temperature (manufacturer-listed value)
- -40 °C
- Contact configuration
- 1 NO
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800F-X10 is a Bulletin 800F standard contact block with 1 N.O. contact and screw terminals, sold in packages of 10 (latch not included). It is rated A600 and Q600 with 10 A thermal current and has a contact life of 10,000,000 cycles.
Technical reference
| Product name | Allen-Bradley 800FX10 1 NO Screw-Terminal Contact Block |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FX10 |
| Category | Industrial Automation Parts |
| Mounting latch | Not included |
| Contact block type | Standard |
| Contact termination | Screw |
| Storage temperature (manufacturer-listed value) | -40 °C |
| Contact configuration | 1 NO |
| Operating temperature (manufacturer-listed value) | -25 °C |
| Operator mounting hole dimension | 22.5 mm |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
