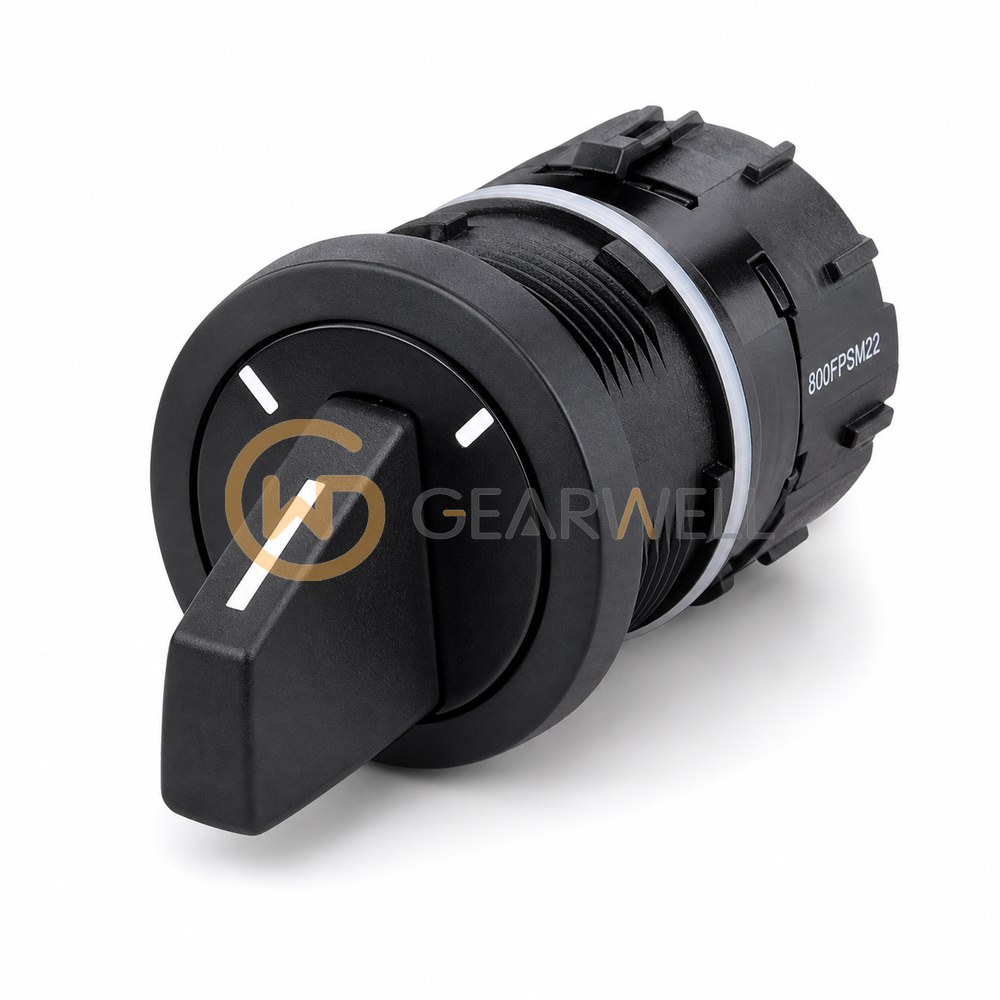

Allen-Bradley 800FPSM22 2-Position Maintained Selector Switch Operator
- Brand
- Allen-Bradley
- Model
- 800FPSM22
- GEARWELL SKU
- GWP-000001250
- Category
- Industrial Automation Parts
Key specifications
- Type
- 22mm Selector Switch
- Positions
- 2
- Mounting hole
- 22.5 mm
- Operator type
- Selector switch - standard knob
- Operator action
- Maintained, 2 position
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800FP-SM22 is a Bulletin 800F 22.5 mm 2-position selector switch operator with a black standard knob and white insert, maintained, with a 60° switching angle. It is a round plastic operator rated IP66, Type 4/4X/13, with a mechanical life of 1,000,000 cycles. The mounting ring is included with the operator.
Technical reference
| Product name | Allen-Bradley 800FPSM22 2-Position Maintained Selector Switch Operator |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FPSM22 |
| Category | Industrial Automation Parts |
| Type | 22mm Selector Switch |
| Positions | 2 |
| Mounting hole | 22.5 mm |
| Operator type | Selector switch - standard knob |
| Operator action | Maintained, 2 position |
| Short-term storage temperature | -40...+85 °C |
| Operating temperature | -25...+70 °C; below 0 °C requires no freezing moisture or liquids; UL recognized to 55 °C |
| Colour control element | Black |
| Enclosure compatibility | IP66, Type 4/4X/13 (round plastic operator) |
| Included contact blocks | None (operator only) |
| Type of control element | Short thumb-grip |
| Hazardous location rating | false |
