Allen-Bradley 800FPSB32 3-Position Spring-Return Selector Switch Operator
- Brand
- Allen-Bradley
- Model
- 800FPSB32
- GEARWELL SKU
- GWP-000004338
- Category
- Industrial Automation Parts
Key specifications
- Type
- 22mm Selector Switch
- Positions
- 3
- Mounting hole
- 22.5 mm
- Operator type
- Selector switch - standard knob
- Operator action
- Spring return from both, 3 position
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

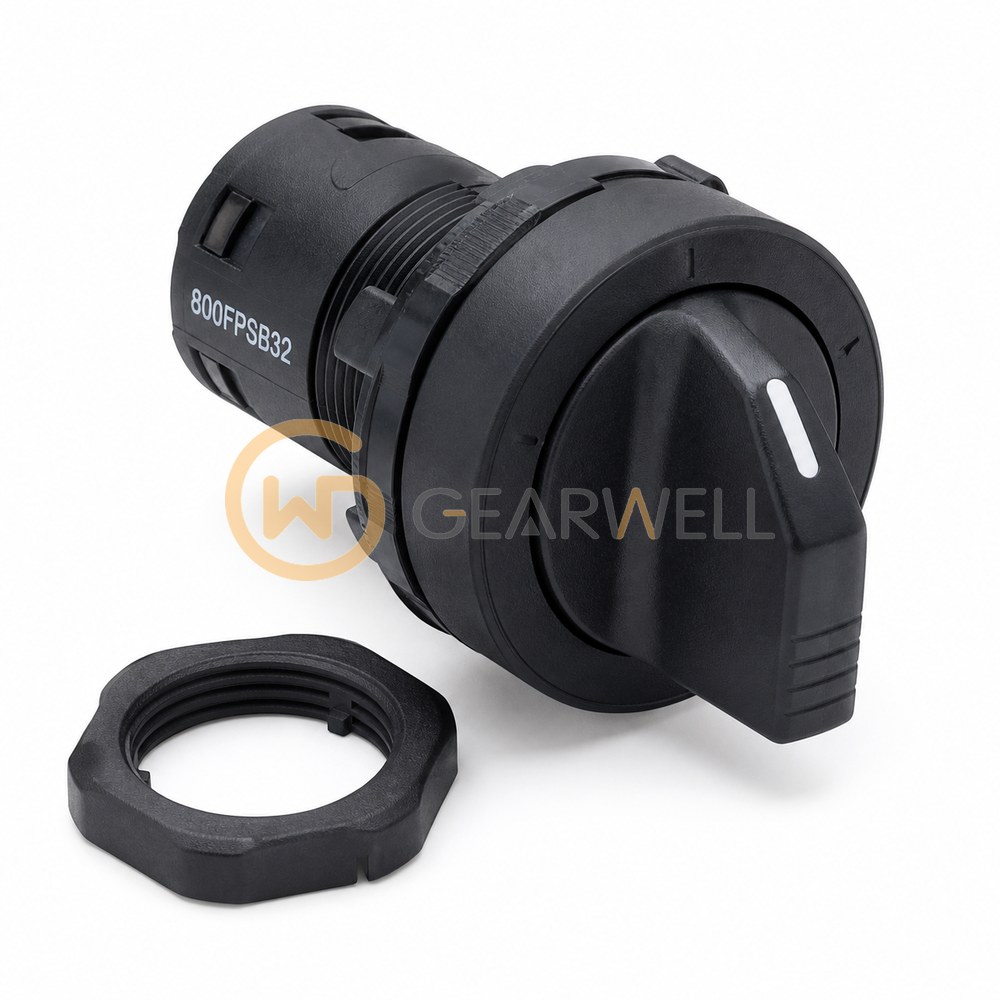

The Allen-Bradley 800FP-SB32 is a Bulletin 800F 22.5 mm 3-position selector switch operator with a black standard knob and white insert that springs back to the center from left and right. It is a round plastic operator rated IP66, Type 4/4X/13. The mounting ring is included with the operator.
Technical reference
| Product name | Allen-Bradley 800FPSB32 3-Position Spring-Return Selector Switch Operator |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FPSB32 |
| Category | Industrial Automation Parts |
| Type | 22mm Selector Switch |
| Positions | 3 |
| Mounting hole | 22.5 mm |
| Operator type | Selector switch - standard knob |
| Operator action | Spring return from both, 3 position |
| Short-term storage temperature | -40...+85 °C |
| Operating temperature | -25...+70 °C; below 0 °C requires no freezing moisture or liquids; UL recognized to 55 °C |
| Colour control element | Black |
| Enclosure compatibility | IP66, Type 4/4X/13 (round plastic operator) |
| Included contact blocks | None (operator only) |
| Type of control element | Short thumb-grip |
| Hazardous location rating | false |
