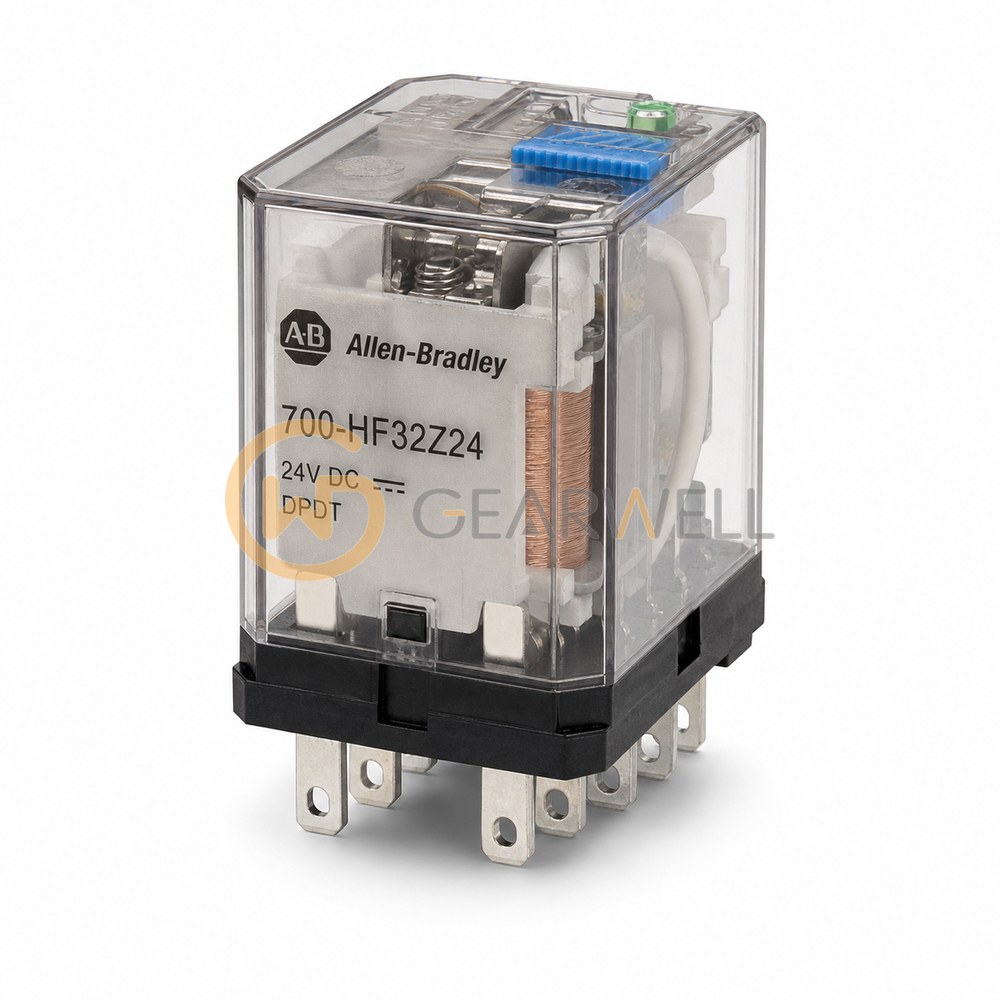

Allen-Bradley 700-HF32Z24 24 V DC DPDT Square-Base Relay

Key specifications

Relay depth, approx.: 27.7 mm
Overall height including blades, approx.: 44.2 mm
DC coil power, 2-pole version: 1 W
Factory option configuration: No additional options; no LED or manual override
Resistive contact rating, per pole: 12 A at 250 V AC or 30 V DC

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

The Allen-Bradley 700-HF32Z24 is a 700-HF general purpose miniature square base relay with DPDT 12 A contacts and a 24V DC coil.

Product name	Allen-Bradley 700-HF32Z24 24 V DC DPDT Square-Base Relay
Brand	Allen-Bradley
Model	700HF32Z24
Category	Industrial Automation Parts
Relay depth, approx.	27.7 mm
Overall height including blades, approx.	44.2 mm
DC coil power, 2-pole version	1 W
Factory option configuration	No additional options; no LED or manual override
Resistive contact rating, per pole	12 A at 250 V AC or 30 V DC
Contact material	Silver cadmium oxide (AgCdO)
Storage temperature, minimum	-50 °C
Compatible sockets, ordered separately	700-HN116 or 700-HN262 for 700-HF DPDT relays
Contact configuration	DPDT (2 Form C)
Operating temperature	-40 to +70 °C
Relay housing protection	IP40
Protection with guarded terminal socket	IP20 with a suitable guarded terminal socket; socket not included
DC coil voltage	24 V DC
