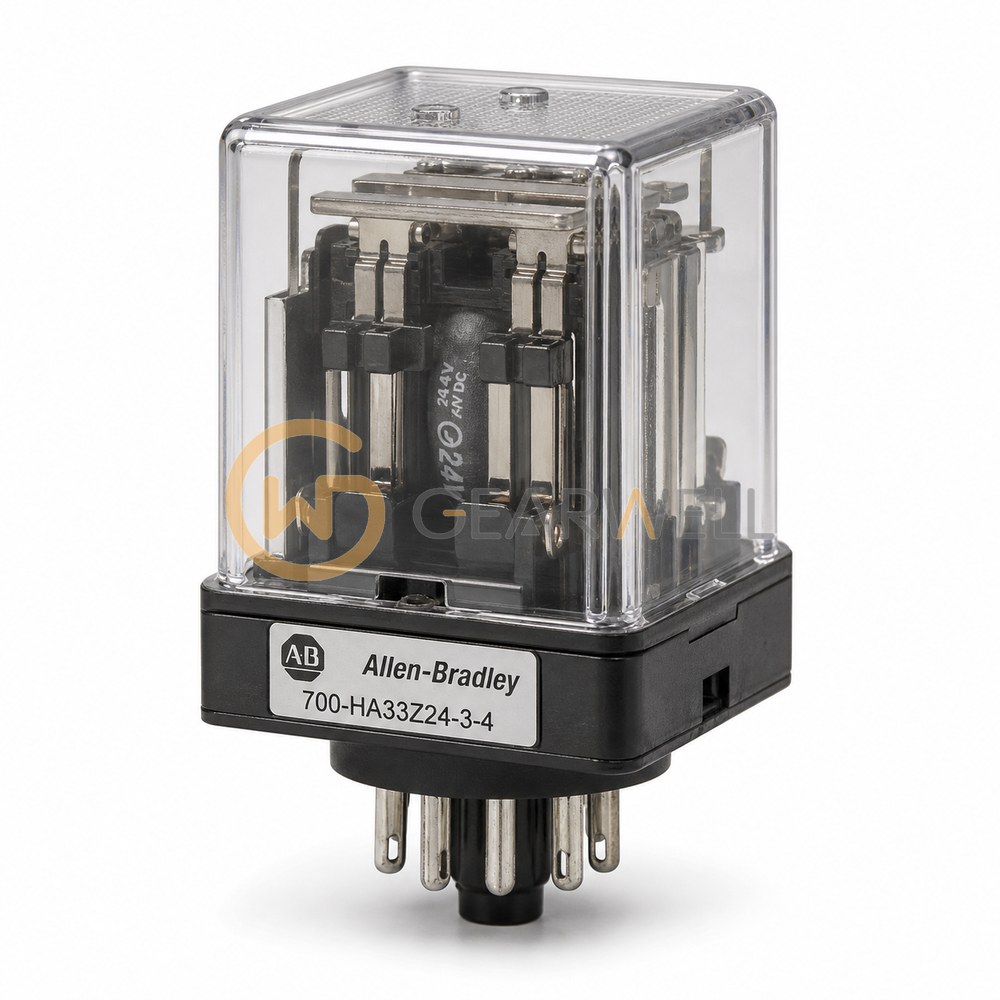

Allen-Bradley 700-HA33Z24-3-4 24 V DC 3PDT Tube-Base Relay with LED
- Brand
- Allen-Bradley
- Model
- 700HA33Z2434
- GEARWELL SKU
- GWP-000002413
- Category
- Industrial Automation Parts
Key specifications
- Relay depth, approx.
- 36.5 mm
- Relay height excluding pins, approx.
- 54.1 mm
- DC coil voltage
- 24 V DC
- Factory option configuration
- Push-to-test, manual override and LED (-3-4 option)
- Contact load ratings
- 10 A at 240 V AC general-purpose; 10 A at 30 V DC resistive
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 700-HA33Z24-3-4 is a 700-HA general purpose tube base relay with 3PDT 10 A contacts and a 24V DC coil, fitted with push-to-test and manual override and a pilot light.
Technical reference
| Product name | Allen-Bradley 700-HA33Z24-3-4 24 V DC 3PDT Tube-Base Relay with LED |
|---|---|
| Brand | Allen-Bradley |
| Model | 700HA33Z2434 |
| Category | Industrial Automation Parts |
| Relay depth, approx. | 36.5 mm |
| Relay height excluding pins, approx. | 54.1 mm |
| DC coil voltage | 24 V DC |
| Factory option configuration | Push-to-test, manual override and LED (-3-4 option) |
| Contact load ratings | 10 A at 240 V AC general-purpose; 10 A at 30 V DC resistive |
| Contact material | Silver nickel (AgNi) |
| Compatible 11-pin sockets, ordered separately | 700-HN101, 700-HN126 or 700-HN205 |
| Contact configuration | 3PDT (3 Form C) |
| Operating temperature | -40 to +70 °C |
| Relay housing protection | IP40 |
| Protection with guarded terminal socket | IP20 with a suitable guarded terminal socket; socket not included |
| AC coil supply, 50 Hz | Not applicable; this model has a 24 V DC coil |
| AC coil supply, 60 Hz | Not applicable; this model has a 24 V DC coil |
