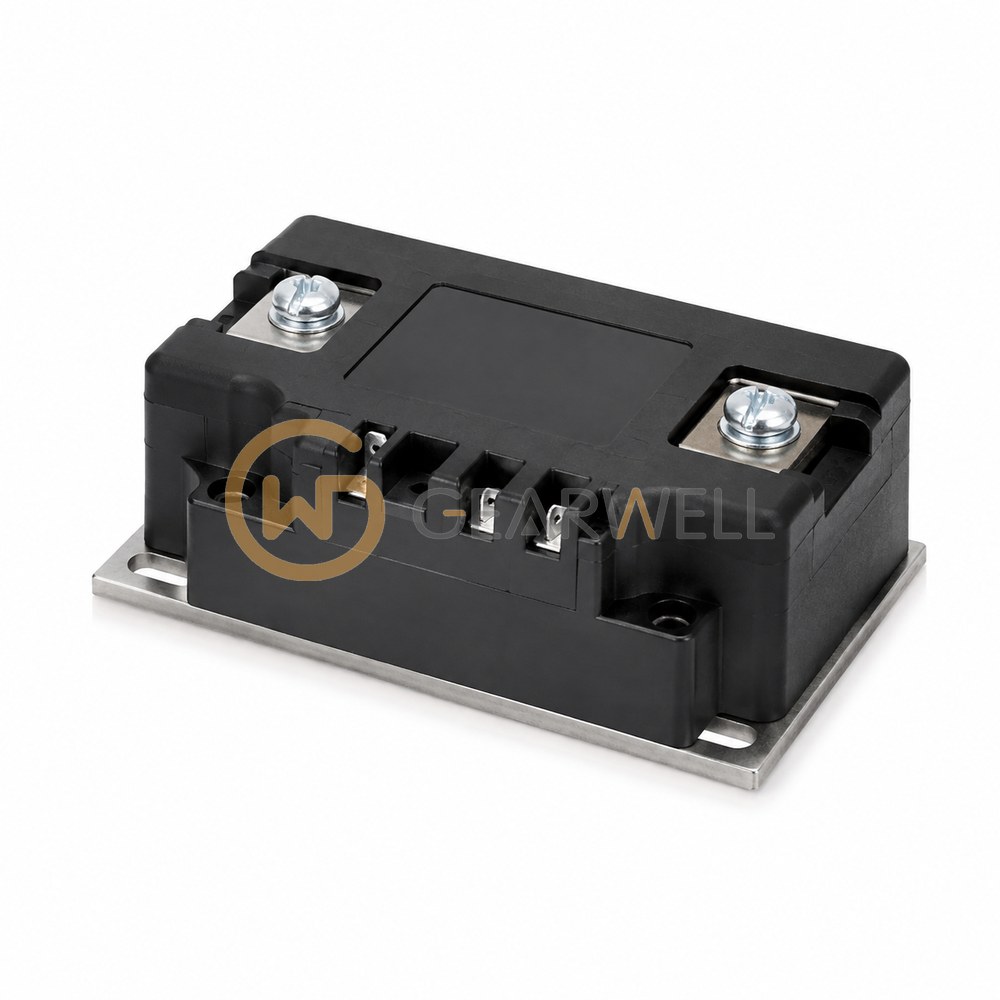

Allen-Bradley 700-SH25GA24 Solid-state relay
- Brand
- Allen-Bradley
- Model
- 700-SH25GA24
- GEARWELL SKU
- GWP-000003276
- Category
- Industrial Automation Parts
Key specifications
- Weight
- Approximately 60 g
- Input current
- 20 mA @ maximum 48V DC
- Leakage current
- <3 mA RMS, 100 MΩ minimum @ 500V DC
- Ambient temperature
- Storage: -40...100 °C (-40...212 °F) with no icing or condensation
- Input/Control Voltage
- 20...280V AC/22..48V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 700-SH25GA24 is a 700-SH hockey puck solid-state relay rated 25 A at 24…265V AC, with zero-cross switching, optocoupler isolation and an LED indicator. Its control input accepts 20…280V AC, and Rockwell also lists a DC control input range.
Technical reference
| Product name | Allen-Bradley 700-SH25GA24 Solid-state relay |
|---|---|
| Brand | Allen-Bradley |
| Model | 700-SH25GA24 |
| Category | Industrial Automation Parts |
| Weight | Approximately 60 g |
| Input current | 20 mA @ maximum 48V DC |
| Leakage current | <3 mA RMS, 100 MΩ minimum @ 500V DC |
| Ambient temperature | Storage: -40...100 °C (-40...212 °F) with no icing or condensation |
| Input/Control Voltage | 20...280V AC/22..48V DC |
| Rated control supply voltage at DC | 22 V |
| Rated control supply voltage at AC 50 Hz | 20 V |
| Rated control supply voltage at AC 60 Hz | 20 V |
