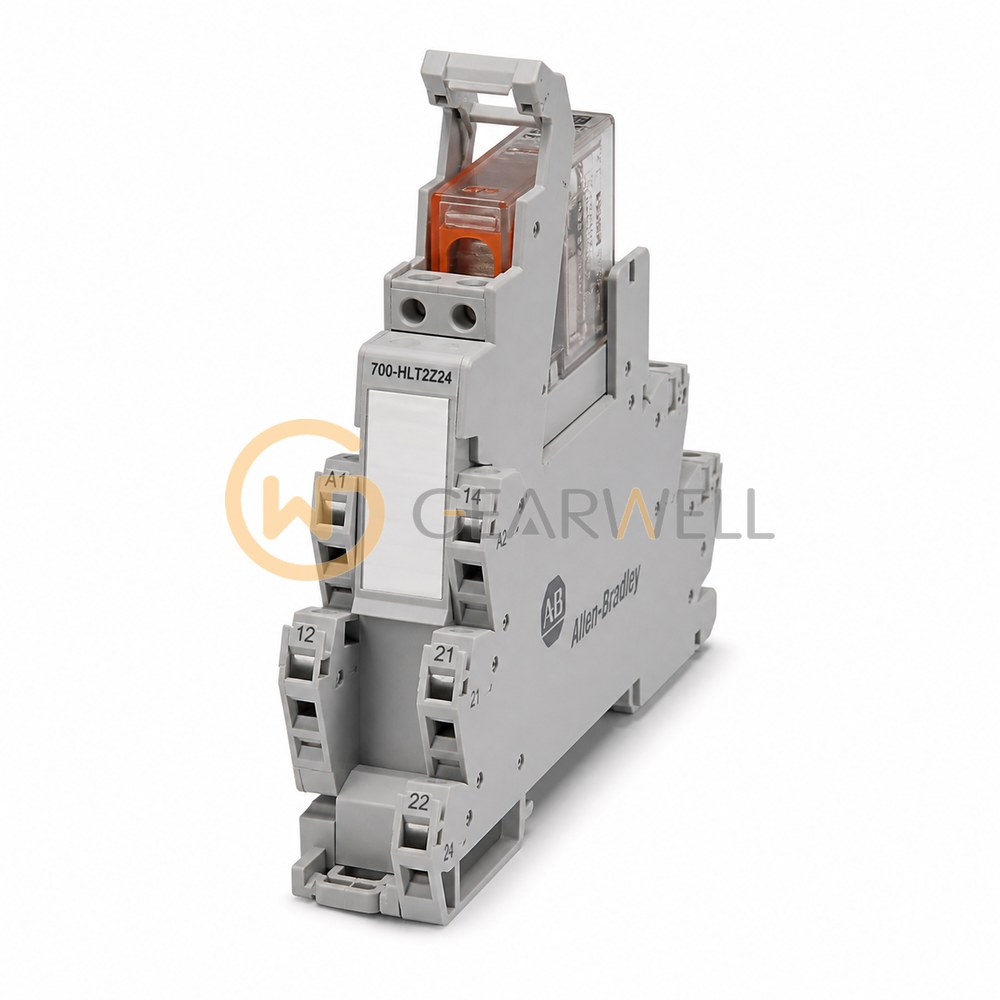

Allen-Bradley 700-HLT2Z24 24 V DC SPDT Spring-Clamp Terminal-Block Relay
- Brand
- Allen-Bradley
- Model
- 700HLT2Z24
- GEARWELL SKU
- GWP-000002546
- Category
- Industrial Automation Parts
Key specifications
- Connections
- Spring-clamp terminals
- DC coil voltage
- 24 V DC
- Status indicator
- LED included
- Contact configuration
- SPDT (1 C/O)
- Contact material
- Silver tin oxide (AgSnO2)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 700-HLT2Z24 is a 700-HL electromechanical relay output with one SPDT (1 C/O) silver contact, a 24V DC coil and touch-safe spring clamp connections. It is sold in packs of 10.
Technical reference
| Product name | Allen-Bradley 700-HLT2Z24 24 V DC SPDT Spring-Clamp Terminal-Block Relay |
|---|---|
| Brand | Allen-Bradley |
| Model | 700HLT2Z24 |
| Category | Industrial Automation Parts |
| Connections | Spring-clamp terminals |
| DC coil voltage | 24 V DC |
| Status indicator | LED included |
| Contact configuration | SPDT (1 C/O) |
| Contact material | Silver tin oxide (AgSnO2) |
| Output type | Electromechanical relay |
| Operating temperature | -40 to +55 °C |
| Relay/socket assembly protection | IP20 |
| Resistive contact rating | 6 A at 24 V DC or 250 V AC; 0.1 A at 240 V DC |
| Built-in 2.2 mA leakage-current suppression | No |
