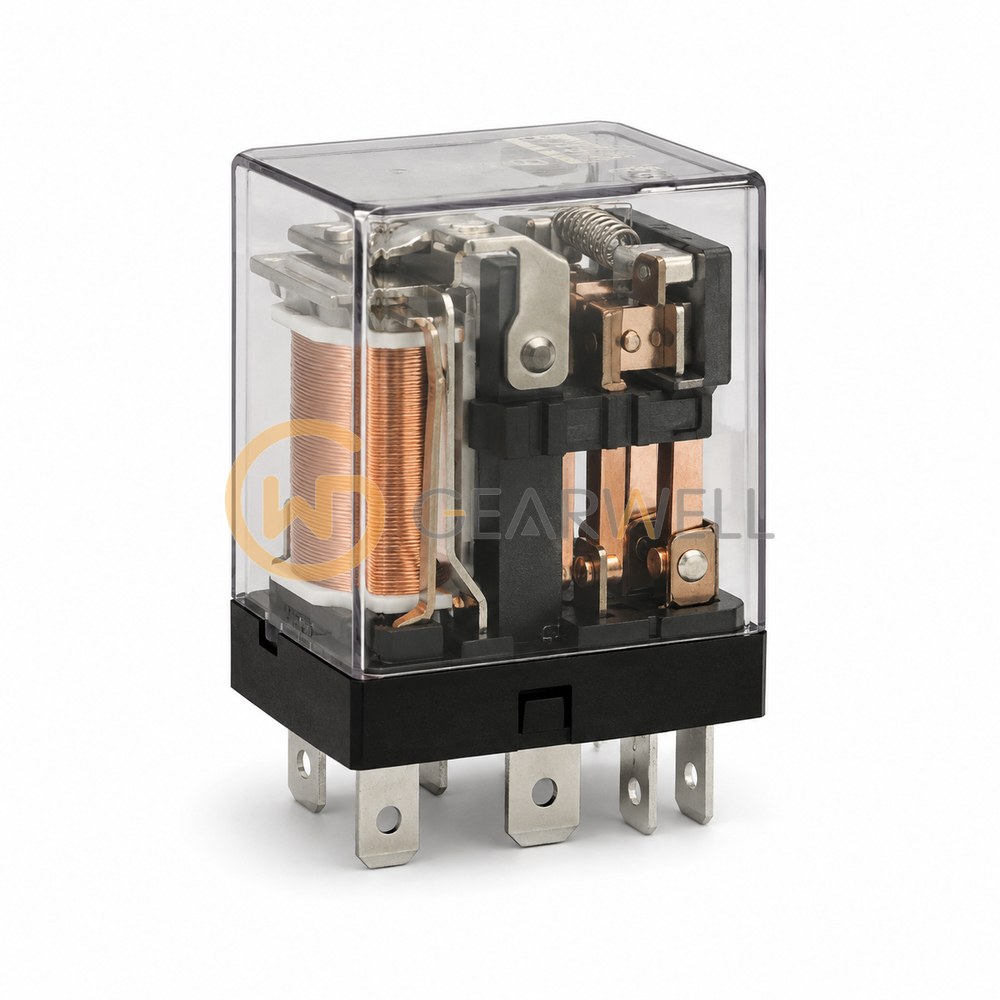

Allen-Bradley 700-HC24A1 NSNP
- Brand
- Allen-Bradley
- Model
- 700-HC24A1
- GEARWELL SKU
- GWP-000004170
- Category
- Industrial Components
Key specifications
- Depth
- 20.7 mm
- Width
- 27.7 mm
- Height
- 37.2 mm
- Nominal current
- 7 A
- Operating temperature
- -30 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 700-HC24A1 is a 700-HC general purpose miniature square relay with blade terminals and 4PDT 7A silver contacts (low energy rating 10V, 10mA), with a 120V 50/60Hz coil.
Technical reference
| Product name | Allen-Bradley 700-HC24A1 NSNP |
|---|---|
| Brand | Allen-Bradley |
| Model | 700-HC24A1 |
| Category | Industrial Components |
| Depth | 20.7 mm |
| Width | 27.7 mm |
| Height | 37.2 mm |
| Nominal current | 7 A |
| Operating temperature | -30 °C |
| Degree of protection (IP) | IP20 |
| List of degrees of protection (IP) | IP20 with guarded terminal socket |
| Rated control supply voltage at AC 50 Hz | 120 V |
