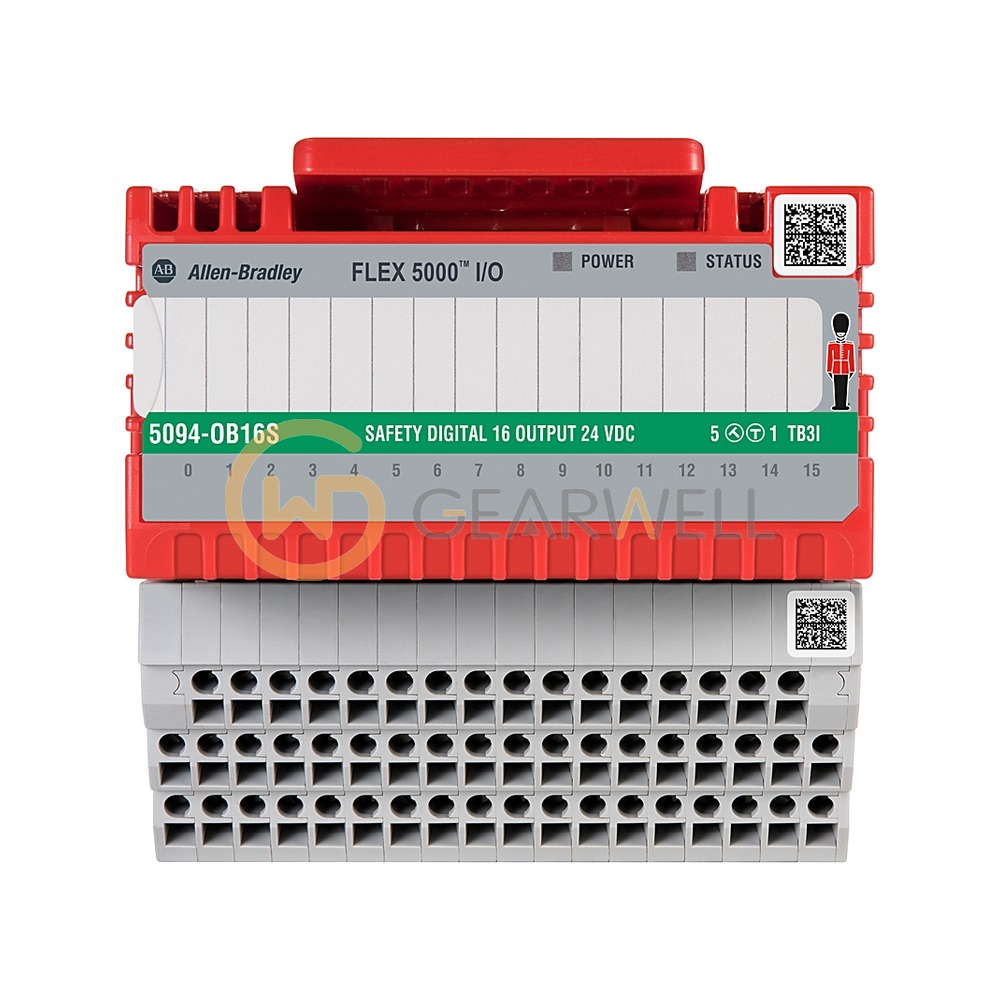

Allen-Bradley 5094-OB16S FLEX 5000 Safety Digital Output Module
- Brand
- Allen-Bradley
- Model
- 5094-OB16S
- GEARWELL SKU
- GWP-000006731
- Category
- PLCs & I/O
Key specifications
- Digital outputs
- 16
- Rated output voltage
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5094-OB16S is a FLEX 5000 safety digital output module with 16 sourcing outputs for 18…32V DC, rated 0.5 A per point. It is rated up to Cat. 4 / PLe (EN ISO 13849-1), SIL CL 3 (EN 62061) and SIL 3 (IEC 61508), with per-point open-load and short-circuit diagnostics. It draws 100 mA from the 15V DC backplane, needs a 5094-MB mounting base and RTB ordered separately, and is rated for -40…+70 °C.
Technical reference
| Product name | Allen-Bradley 5094-OB16S FLEX 5000 Safety Digital Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 5094-OB16S |
| Category | PLCs & I/O |
| Digital outputs | 16 |
| Rated output voltage | 24 V DC |
