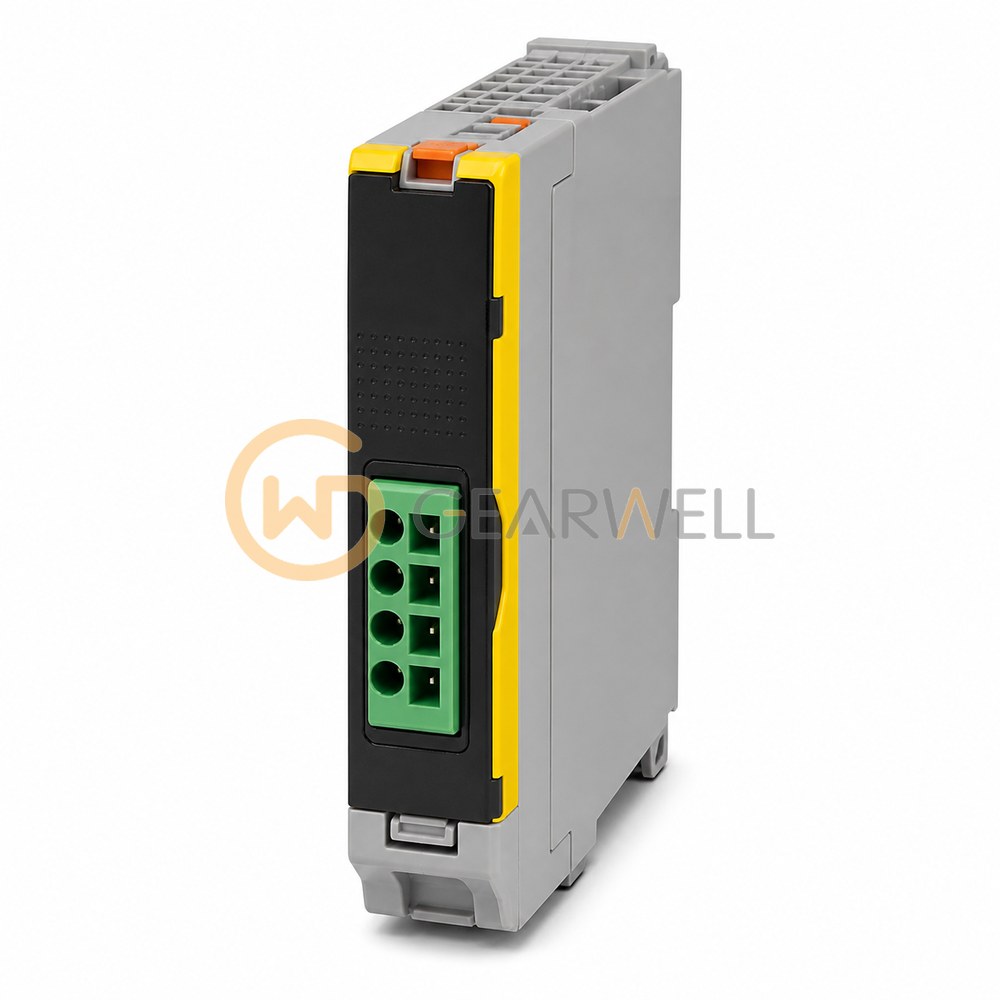

Allen-Bradley 5069-OBV8SK Compact 5000 8-Channel Safety Output Module, Conformal Coated
- Brand
- Allen-Bradley
- Model
- 5069OBV8SK
- GEARWELL SKU
- GWP-000001757
- Category
- PLCs & I/O
Key specifications
- MOD power consumption
- 75 mA at 18-32 V DC
- Maximum output delay
- 4 ms, off-to-on and on-to-off
- Output modes
- Bipolar or sourcing
- Product type
- Conformal-coated Compact 5000 safety output module
- Safety output channels
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-OBV8SK is a Compact 5000 18…32V DC 8-point conformal coated safety output module, bipolar or sourcing. Compact 5000 I/O modules work as local I/O in CompactLogix 5380 and Compact GuardLogix 5380 systems and as remote I/O behind a 5069 EtherNet/IP adapter, and Producer/Consumer technology lets several Logix 5000 controllers share their data. Configure it in Studio 5000 Logix Designer and order the field wiring terminal block separately as a 5069-RTB18-SCREW or 5069-RTB18-SPRING.
Technical reference
| Product name | Allen-Bradley 5069-OBV8SK Compact 5000 8-Channel Safety Output Module, Conformal Coated |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069OBV8SK |
| Category | PLCs & I/O |
| MOD power consumption | 75 mA at 18-32 V DC |
| Maximum output delay | 4 ms, off-to-on and on-to-off |
| Output modes | Bipolar or sourcing |
| Product type | Conformal-coated Compact 5000 safety output module |
| Safety output channels | 8 |
| Supported safety category | Up to Category 4 with the specified wiring, diagnostics and safety-controller configuration |
| LA field-power voltage | 18-32 V DC |
| Nominal output voltage | 24 V DC |
| Maximum power dissipation | 6.5 W |
| Safety reaction time | 4.5 ms |
| Output current per module | 8 A horizontal; 5.6 A in other supported mounting orientations |
| Output current per channel | 1 A horizontal; 0.7 A in other supported mounting orientations |
