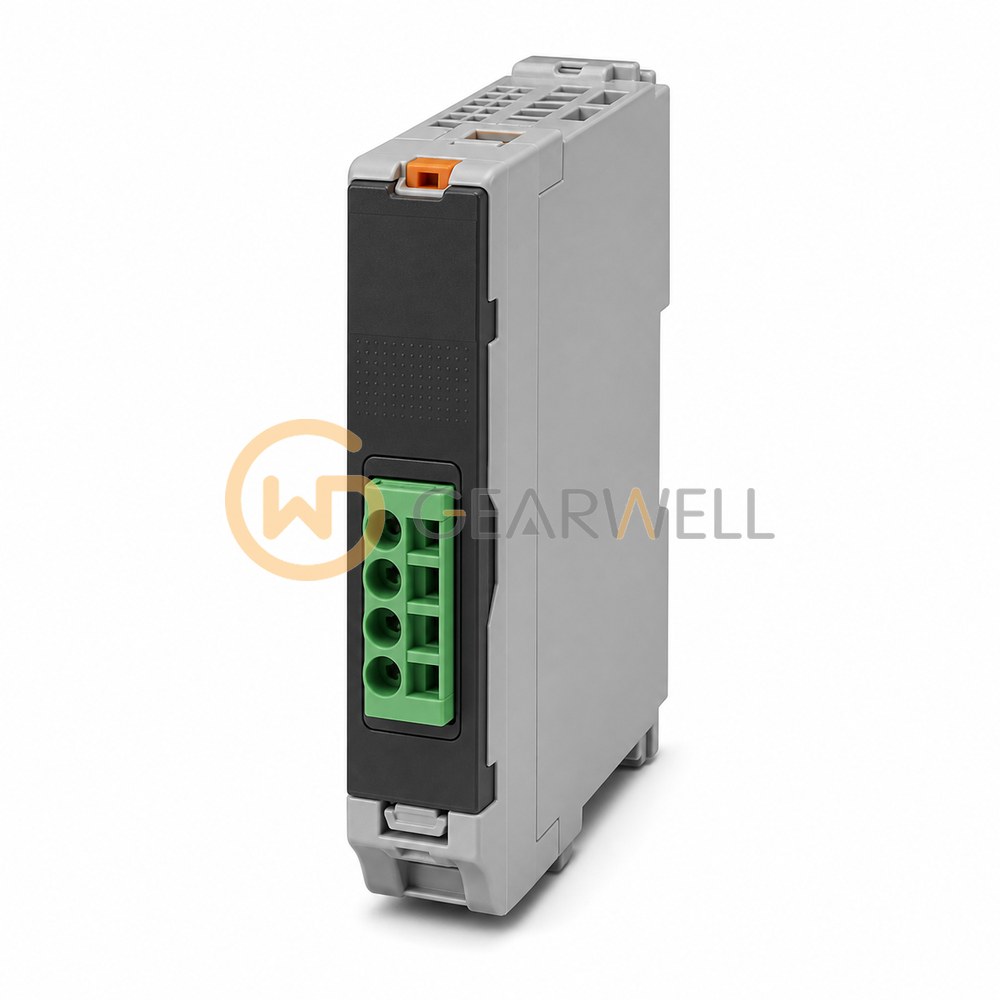

Allen-Bradley 5069-OF4K Compact 5000 4-Channel Analog Output Module, Conformal Coated
- Brand
- Allen-Bradley
- Model
- 5069OF4K
- GEARWELL SKU
- GWP-000004256
- Category
- PLCs & I/O
Key specifications
- MOD power consumption
- 75 mA at 18-32 V DC
- Product type
- Conformal-coated Compact 5000 analog output module
- Output signal
- Analog voltage or current
- Load impedance
- Voltage mode: 1000 ohms minimum; current mode: 500 ohms maximum
- Manufacturer lifecycle status (2026-10-09)
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-OF4K is a Compact 5000 4-channel conformal coated current/voltage output module. Compact 5000 I/O modules work as local I/O in CompactLogix 5380 and Compact GuardLogix 5380 systems and as remote I/O behind a 5069 EtherNet/IP adapter, and Producer/Consumer technology lets several Logix 5000 controllers share their data. Configure it in Studio 5000 Logix Designer and order the field wiring terminal block separately as a 5069-RTB18-SCREW or 5069-RTB18-SPRING.
Technical reference
| Product name | Allen-Bradley 5069-OF4K Compact 5000 4-Channel Analog Output Module, Conformal Coated |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069OF4K |
| Category | PLCs & I/O |
| MOD power consumption | 75 mA at 18-32 V DC |
| Product type | Conformal-coated Compact 5000 analog output module |
| Output signal | Analog voltage or current |
| Load impedance | Voltage mode: 1000 ohms minimum; current mode: 500 ohms maximum |
| Manufacturer lifecycle status (2026-10-09) | Active |
| Output resolution | 16 bits |
| Analog output channels | 4 |
| Product description | 4-channel voltage/current analog output module, conformal coated |
| Current output ranges | 0-20 mA; 4-20 mA |
| Voltage output ranges | +/-10 V; 0-10 V; 0-5 V |
