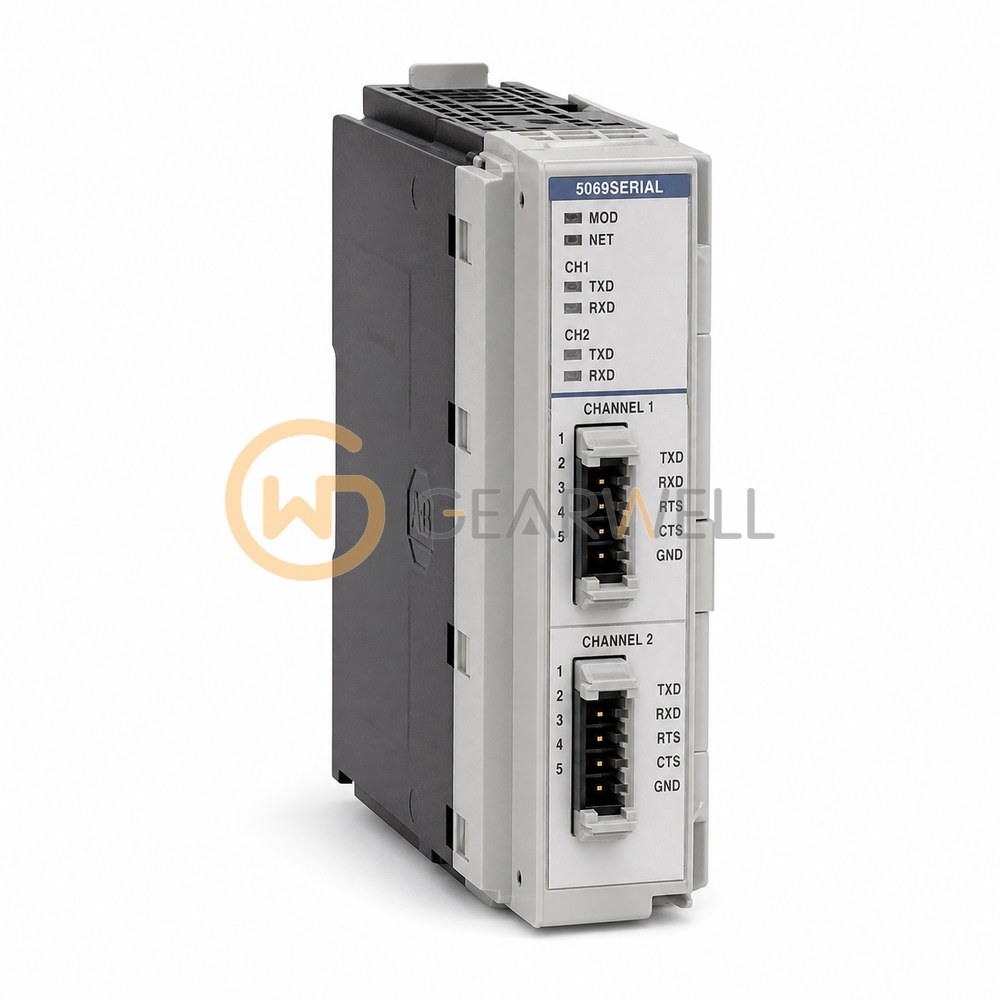

Allen-Bradley 5069-SERIAL Compact 5000 2-Channel Serial Interface Module
- Brand
- Allen-Bradley
- Model
- 5069SERIAL
- GEARWELL SKU
- GWP-000003917
- Category
- Industrial Automation Parts
Key specifications
- Body depth
- 105.42 mm
- Width (body / including interlock)
- 22 mm body; 25.56 mm including side interlock
- Body height
- 137.85 mm
- Serial channel modes
- 2 independent channels; RS-232C/RS-422 full-duplex or RS-485 half-duplex
- Weight
- 175 g
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-SERIAL is a Compact 5000 serial module. It gives a CompactLogix 5380 or Compact 5000 I/O system a network interface to RS-232, RS-422 and RS-485 devices. The module does not draw SA power but is a DC-type module, so it must sit on a DC SA power bus, and Rockwell lists no removable terminal block for it.
Technical reference
| Product name | Allen-Bradley 5069-SERIAL Compact 5000 2-Channel Serial Interface Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069SERIAL |
| Category | Industrial Automation Parts |
| Body depth | 105.42 mm |
| Width (body / including interlock) | 22 mm body; 25.56 mm including side interlock |
| Body height | 137.85 mm |
| Serial channel modes | 2 independent channels; RS-232C/RS-422 full-duplex or RS-485 half-duplex |
| Weight | 175 g |
| Selectable baud rates | 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bit/s |
| Serial interfaces | RS-232C, RS-422 and RS-485 |
| Enclosure type | None (open-style) |
| Protocols and restrictions | Generic ASCII and Modbus RTU/ASCII (master/slave). DF1 and DH-485 require firmware 2.011 or later and AOP 2.01, Channel 1 and local I/O use. Not compatible with 5069-AEN2TR. |
| Power dissipation | 2.8 W maximum |
| Serial port connectors | 2 male DB-9 connectors |
| Number of channels | 2 |
| Operating temperature | 0–60 °C |
