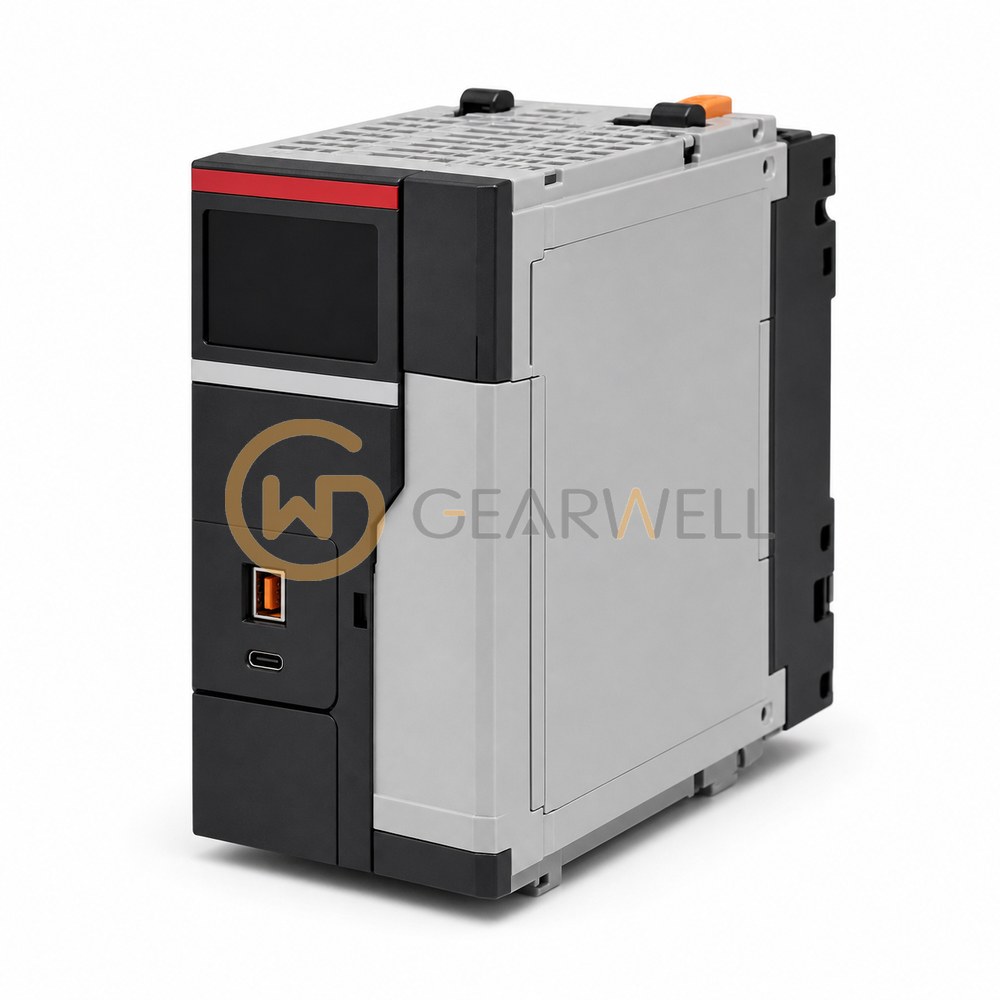

Allen-Bradley 5069-L320ERS2K Compact GuardLogix 5380 2 MB SIL 2 Safety Controller, Conformal Coated
- Brand
- Allen-Bradley
- Model
- 5069-L320ERS2K
- GEARWELL SKU
- GWP-000001890
- Category
- PLCs & I/O
Key specifications
- USB port
- 1 x USB 2.0 Type B, 12 Mbps; temporary programming/configuration/firmware/online edits
- MOD power consumption
- 475 mA maximum at 18-32 V DC SELV/PELV
- Coating
- Conformal coated
- Integrated Motion position-loop drive axes
- Not supported
- Maximum local I/O modules
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-L320ERS2K is a Compact GuardLogix 5380 SIL 2 safety controller with 2 MB of user memory and 1 MB of safety memory, two Ethernet ports for Dual-IP or Linear/DLR operation and a USB programming port. It handles up to 16 local Compact 5000 I/O modules and 40 EtherNet/IP nodes and runs 31 standard tasks plus one safety task. This version has no Integrated Motion; Rockwell reserves that for catalog numbers with M. It is certified for SIL 2 to EN 62061/IEC 61508 and Cat. 3/PL d to EN ISO 13849-1. The controller mounts on a DIN rail, operates at 0…60 °C, ships with a 1784-SD2 2 GB SD card and is programmed in Studio 5000 Logix Designer. The K suffix marks the conformal-coated version.
Technical reference
| Product name | Allen-Bradley 5069-L320ERS2K Compact GuardLogix 5380 2 MB SIL 2 Safety Controller, Conformal Coated |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-L320ERS2K |
| Category | PLCs & I/O |
| USB port | 1 x USB 2.0 Type B, 12 Mbps; temporary programming/configuration/firmware/online edits |
| MOD power consumption | 475 mA maximum at 18-32 V DC SELV/PELV |
| Coating | Conformal coated |
| Integrated Motion position-loop drive axes | Not supported |
| Maximum local I/O modules | 16 |
| Product type | Compact GuardLogix 5380 SIL 2 safety controller |
| Safety memory | 1 MB |
| Safety capability | Up to SIL 2 / PLd (Category 3), using the specified safety task and safety I/O |
| Maximum EtherNet/IP nodes | 40 |
| Built-in Ethernet ports | 2 |
| Ethernet speed | 10/100/1000 Mbps, full duplex |
| Standard user memory | 2 MB |
| Maximum power dissipation | 9 W |
