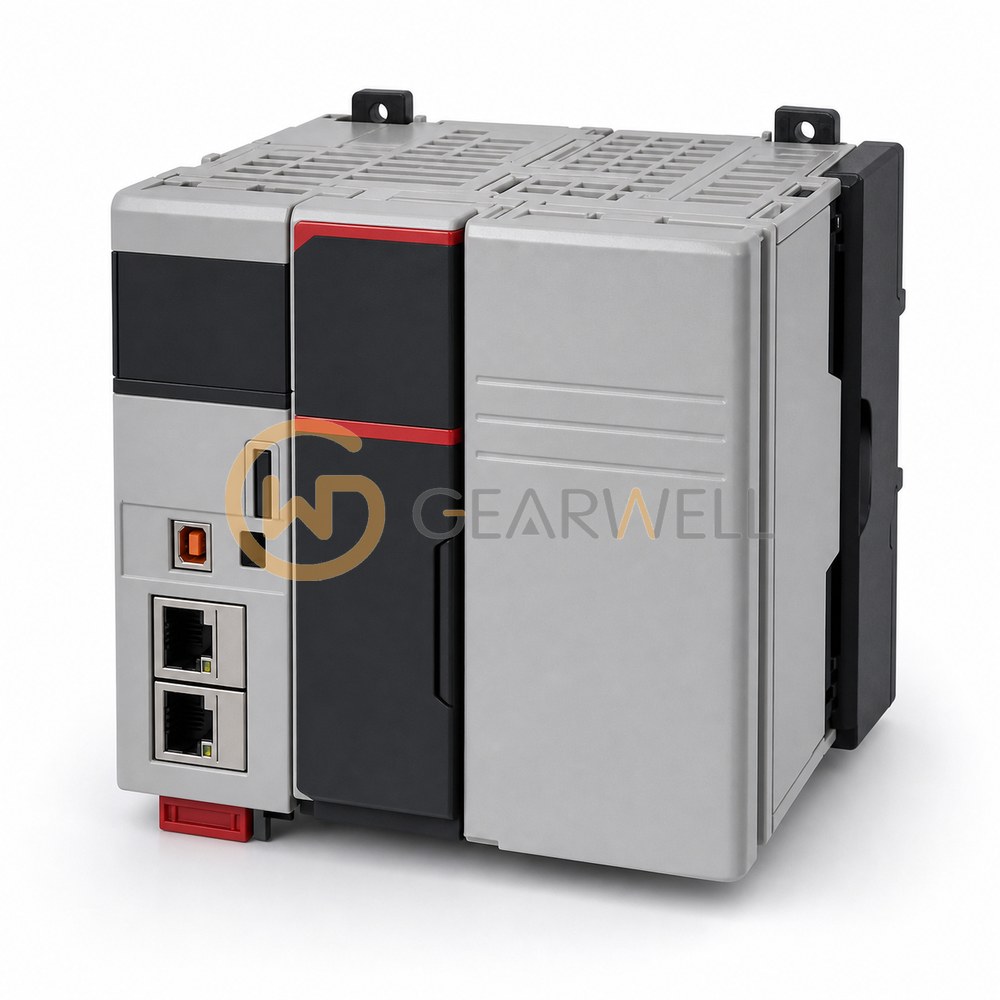

Allen-Bradley 5069-L320ERMK CompactLogix 5380 2 MB Motion Controller, Conformal Coated
- Brand
- Allen-Bradley
- Model
- 5069-L320ERMK
- GEARWELL SKU
- GWP-000002685
- Category
- PLCs & I/O
Key specifications
- Overall depth, approx.
- 136.81 mm
- Overall height, approx.
- 143.97 mm
- Standard user memory
- 2 MB
- Mounting
- Horizontal DIN-rail mounting only
- Built-in Ethernet ports
- 2 x 10/100/1000 Mbps, full duplex
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-L320ERMK is a CompactLogix 5380 controller with 2 MB of user memory, two Ethernet ports for Dual-IP or Linear/DLR operation and a USB programming port. It handles up to 16 local Compact 5000 I/O modules and 40 EtherNet/IP nodes and runs 32 tasks with up to 1000 programs per task. It supports Integrated Motion on EtherNet/IP with up to 8 position-loop drive axes within a total of 256 motion axes. The controller mounts on a DIN rail, operates at 0…60 °C, ships with a 1784-SD2 2 GB SD card and is programmed in Studio 5000 Logix Designer. The K suffix marks the conformal-coated version.
Technical reference
| Product name | Allen-Bradley 5069-L320ERMK CompactLogix 5380 2 MB Motion Controller, Conformal Coated |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-L320ERMK |
| Category | PLCs & I/O |
| Overall depth, approx. | 136.81 mm |
| Overall height, approx. | 143.97 mm |
| Standard user memory | 2 MB |
| Mounting | Horizontal DIN-rail mounting only |
| Built-in Ethernet ports | 2 x 10/100/1000 Mbps, full duplex |
| Isolation, selected barriers | 300 V continuous basic: SA/MOD to backplane; 50 V functional: Ethernet to USB; no isolation between Ethernet ports |
| Integrated Motion position-loop drive axes | 8 maximum |
| Maximum local I/O modules | 16 |
| Power supply voltage | MOD: 18-32 V DC; SA: 0-32 V DC or 0-240 V AC, 47-63 Hz (Ex: 125 V AC maximum) |
| Communication | EtherNet/IP; USB 2.0 Type B for temporary programming/configuration |
| Maximum EtherNet/IP nodes | 40 with Logix Designer version 31 or later |
| Maximum power dissipation | 8.5 W |
