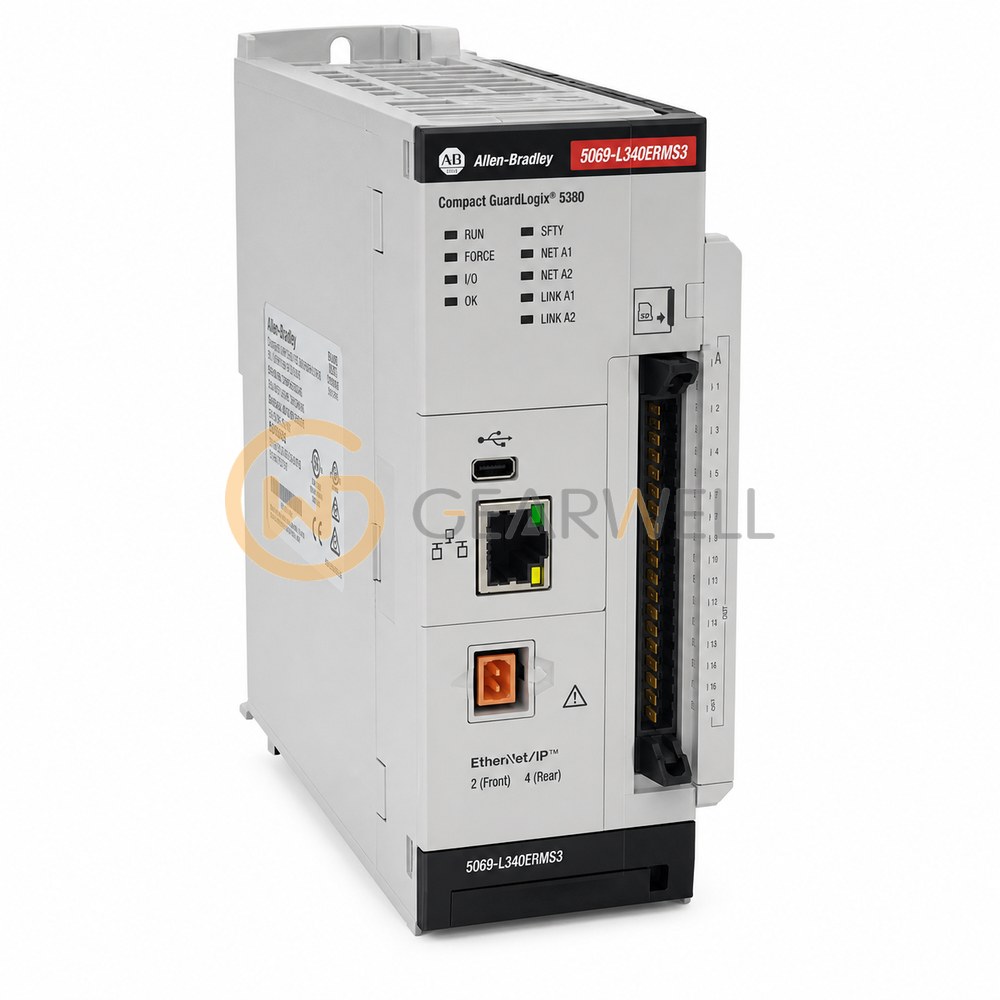

Allen-Bradley 5069-L340ERMS3 Compact GuardLogix 5380 4 MB SIL 3 Motion Safety Controller
- Brand
- Allen-Bradley
- Model
- 5069-L340ERMS3
- GEARWELL SKU
- GWP-000002742
- Category
- PLCs & I/O
Key specifications
- Overall depth, approx.
- 136.81 mm
- Overall height, approx.
- 143.71 mm
- Standard user memory
- 4 MB
- Built-in Ethernet ports
- 2 x 10/100/1000 Mbps, full duplex
- Integrated Motion position-loop drive axes
- 20 maximum
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-L340ERMS3 is a Compact GuardLogix 5380 SIL 3 safety controller with 4 MB of user memory and 2 MB of safety memory, two Ethernet ports for Dual-IP or Linear/DLR operation and a USB programming port. It handles up to 31 local Compact 5000 I/O modules and 90 EtherNet/IP nodes and runs 31 standard tasks plus one safety task. It supports Integrated Motion on EtherNet/IP with up to 20 position-loop drive axes within a total of 256 motion axes. It is certified for SIL 3 to EN 62061/IEC 61508 and Cat. 4/PL e to EN ISO 13849-1. The controller mounts on a DIN rail, operates at 0…60 °C, ships with a 1784-SD2 2 GB SD card and is programmed in Studio 5000 Logix Designer.
Technical reference
| Product name | Allen-Bradley 5069-L340ERMS3 Compact GuardLogix 5380 4 MB SIL 3 Motion Safety Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-L340ERMS3 |
| Category | PLCs & I/O |
| Overall depth, approx. | 136.81 mm |
| Overall height, approx. | 143.71 mm |
| Standard user memory | 4 MB |
| Built-in Ethernet ports | 2 x 10/100/1000 Mbps, full duplex |
| Integrated Motion position-loop drive axes | 20 maximum |
| Maximum local I/O modules | 31 |
| Power supply voltage | MOD: 18-32 V DC SELV/PELV; SA: 0-32 V DC SELV/PELV |
| Communication | EtherNet/IP; USB 2.0 Type B for temporary programming/configuration |
| Safety memory | 2 MB |
| Safety capability | Up to SIL 3 / PLe (Category 4), using the specified safety task and safety I/O |
| Maximum EtherNet/IP nodes | 90 |
| Maximum power dissipation | 18 W |
