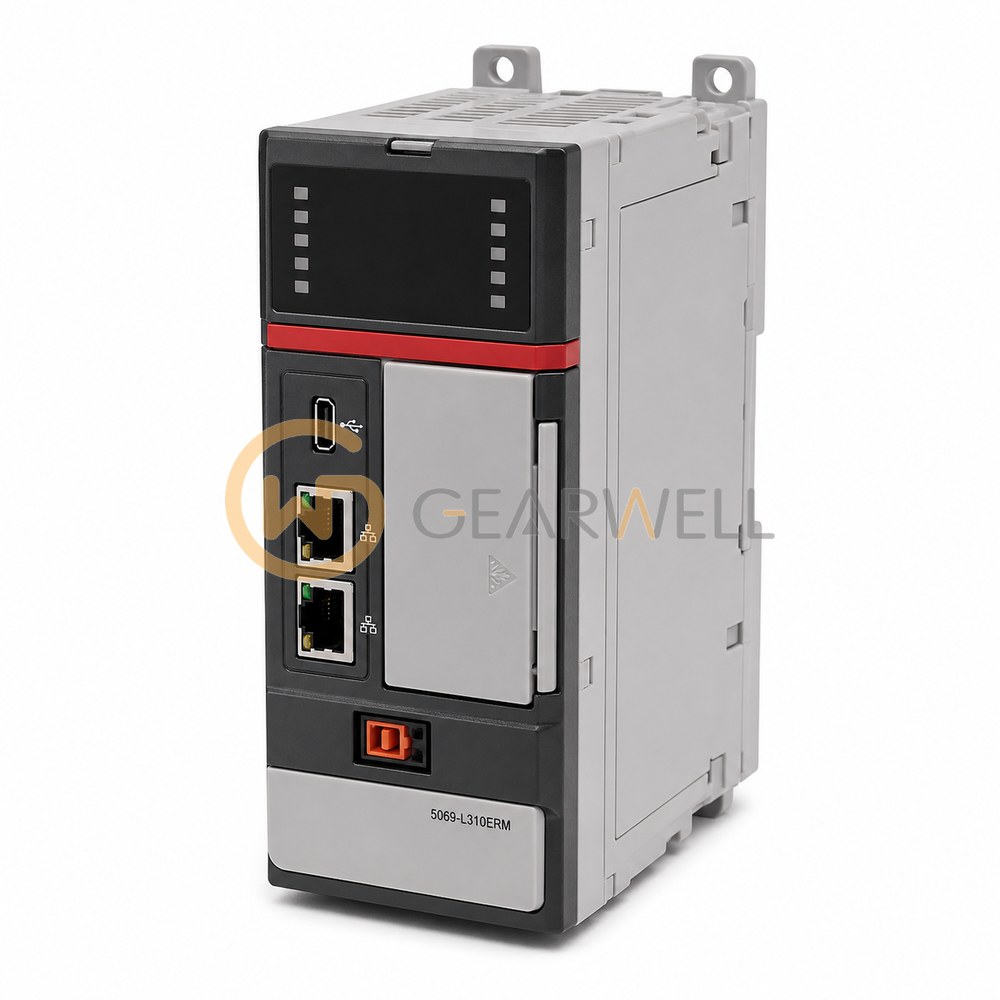

Allen-Bradley 5069-L310ERM CompactLogix 5380 1 MB Motion Controller
- Brand
- Allen-Bradley
- Model
- 5069-L310ERM
- GEARWELL SKU
- GWP-000003263
- Category
- PLCs & I/O
Key specifications
- Standard user memory
- 1 MB
- MOD power consumption
- 450 mA maximum at 18-32 V DC
- Integrated Motion position-loop drive axes
- 4 maximum
- Maximum local I/O modules
- 8
- Product type
- CompactLogix 5380 motion controller
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-L310ERM is a CompactLogix 5380 controller with 1 MB of user memory, two Ethernet ports for Dual-IP or Linear/DLR operation and a USB programming port. It handles up to 8 local Compact 5000 I/O modules and 24 EtherNet/IP nodes and runs 32 tasks with up to 1000 programs per task. It supports Integrated Motion on EtherNet/IP with up to 4 position-loop drive axes within a total of 256 motion axes. The controller mounts on a DIN rail, operates at 0…60 °C, ships with a 1784-SD2 2 GB SD card and is programmed in Studio 5000 Logix Designer.
Technical reference
| Product name | Allen-Bradley 5069-L310ERM CompactLogix 5380 1 MB Motion Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-L310ERM |
| Category | PLCs & I/O |
| Standard user memory | 1 MB |
| MOD power consumption | 450 mA maximum at 18-32 V DC |
| Integrated Motion position-loop drive axes | 4 maximum |
| Maximum local I/O modules | 8 |
| Product type | CompactLogix 5380 motion controller |
| Maximum EtherNet/IP nodes | 24 with Logix Designer version 31 or later |
| Built-in Ethernet ports | 2 x 10/100/1000 Mbps, full duplex |
| Manufacturer lifecycle status (2026-10-09) | Active |
| Product description | 1 MB controller supporting 8 local I/O modules, 4 position-loop motion axes and up to 24 EtherNet/IP nodes |
