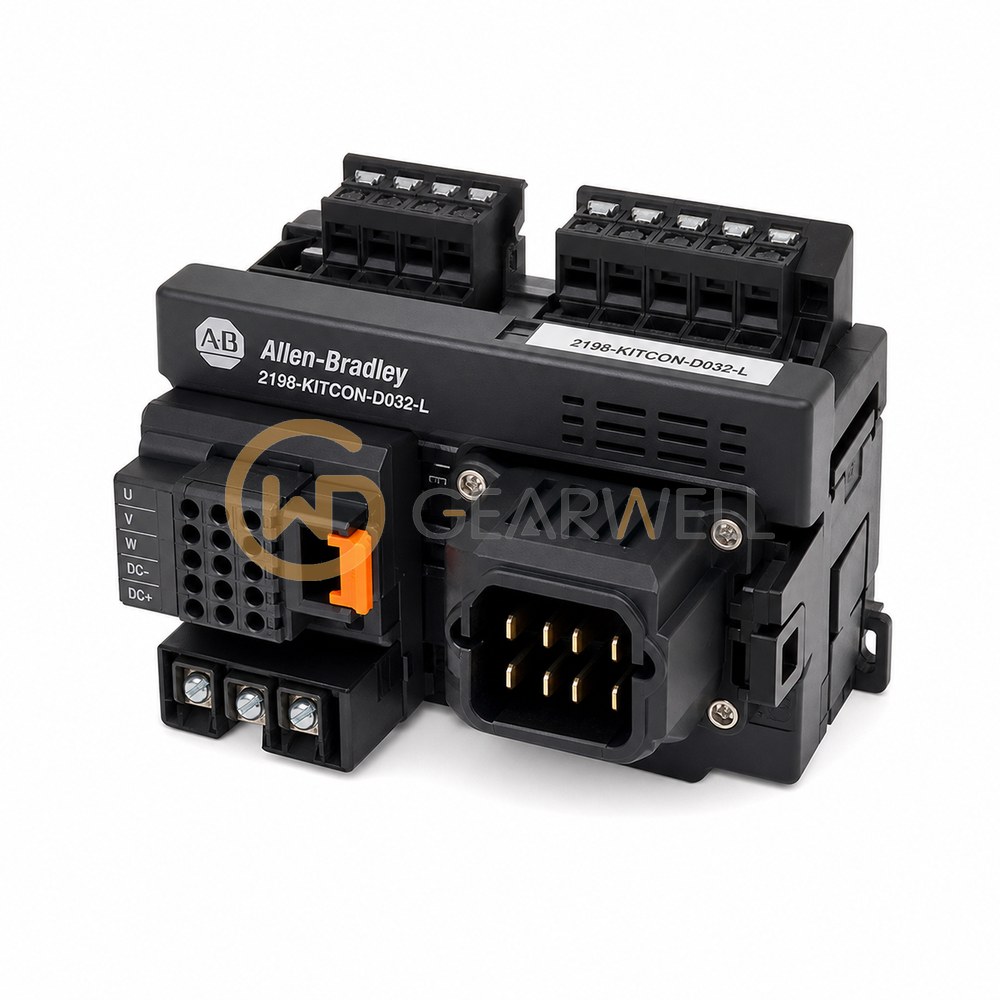

Allen-Bradley 2198-KITCON-D032-L Kinetix 5700 Connector Kit
- Brand
- Allen-Bradley
- Model
- 2198-KITCON-D032-L
- GEARWELL SKU
- GWP-000002614
- Category
- Servo Systems
Key specifications
- Manufacturer kit contents: grounding
- 1 ground screw
- Application
- Connector replacement for compatible 55 mm Kinetix 5700 dual-axis inverter modules
- Product type
- Replacement connector kit
- Product family
- Kinetix 5700
- Manufacturer kit contents: motor connectors
- 2 motor-power (MP) connectors; 2 motor-brake (BC) connectors
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-KITCON-D032-L is a replacement connector set from Rockwell's Kinetix servo drive accessory range. It is the replacement connector set for Kinetix 5700 dual-axis inverters 2198-D006, D012, D020 and D032-ERSx. It includes one 24V input power (CP) connector, two motor power (MP) connectors, two motor brake (BC) connectors, two I/O (IOD) connectors, one Safe Torque Off (STO) connector and one ground screw. The IOD and STO plugs are compatible with 2198-Dxxx-ERS4 drives and 2198-Dxxx-ERS3 (series B or later) drives.
Technical reference
| Product name | Allen-Bradley 2198-KITCON-D032-L Kinetix 5700 Connector Kit |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198-KITCON-D032-L |
| Category | Servo Systems |
| Manufacturer kit contents: grounding | 1 ground screw |
| Application | Connector replacement for compatible 55 mm Kinetix 5700 dual-axis inverter modules |
| Product type | Replacement connector kit |
| Product family | Kinetix 5700 |
| Manufacturer kit contents: motor connectors | 2 motor-power (MP) connectors; 2 motor-brake (BC) connectors |
| Manufacturer kit contents: control connectors | 1 control-power (CP) connector; 2 digital-input (IOD) connectors; 1 Safe Torque Off (STO) connector |
| Compatible inverter modules | 2198-D006, D012, D020 and D032: ERS3 series B or later, and ERS4; IOD/STO connector applicability follows these series restrictions |
