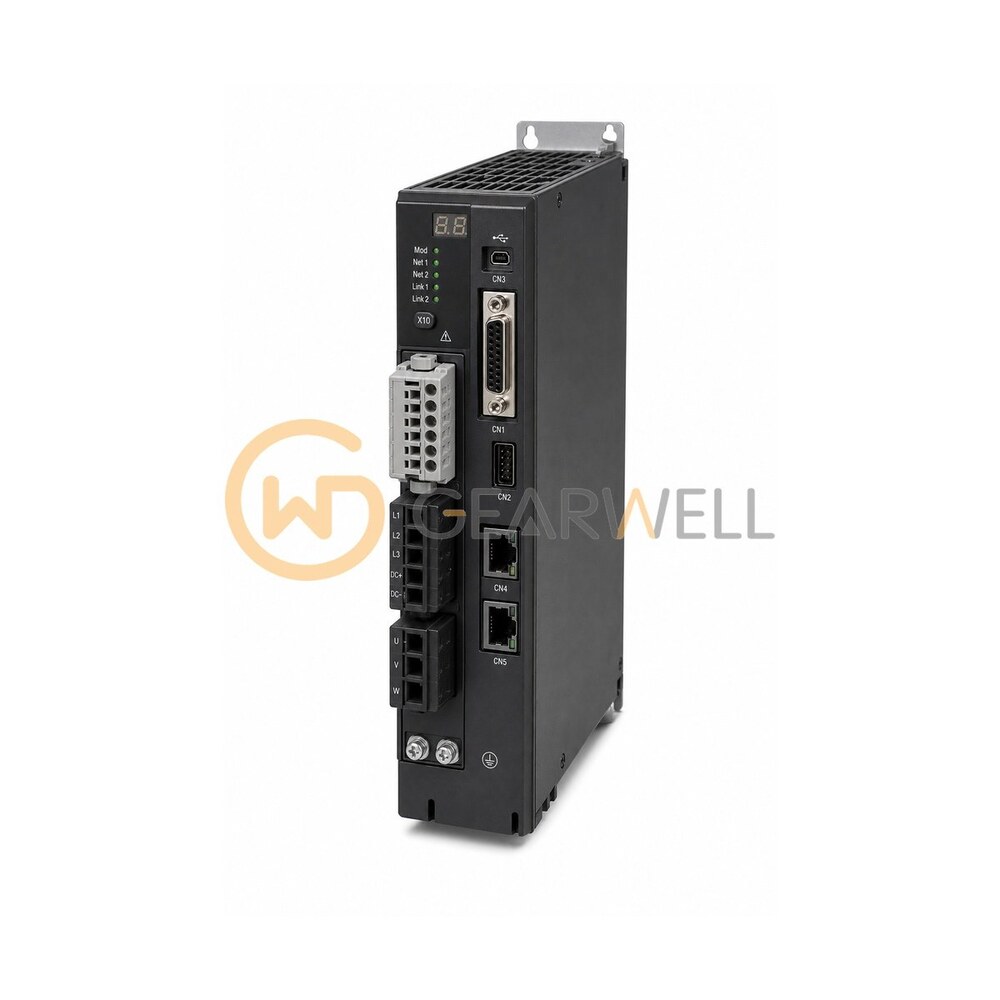

Allen-Bradley 2198-H040-ERS2 Kinetix 5500 Servo Drive
- Brand
- Allen-Bradley
- Model
- 2198-H040-ERS2
- GEARWELL SKU
- GWP-000003413
- Category
- Industrial Automation Parts
Key specifications
- Product type
- Single-axis EtherNet/IP servo drive
- Control power
- 21.6-26.4 V DC (24 V DC nominal)
- Product series
- Kinetix 5500
- AC input voltage
- 195-264 V AC or 324-528 V AC three-phase
- Safety interface
- Integrated safety over EtherNet/IP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-H040-ERS2 is a Kinetix 5500 servo drive from Rockwell's Kinetix servo drive family. It accepts 195…264V rms three-phase (240V nom) or 324…528V rms three-phase (480V nom) input and delivers 13.0 A rms continuous and 32.5 A rms peak output current (peak allowed for up to 1.0 seconds), with 8.3 kW continuous output power at 324…528V three-phase input or 4.0 kW at 195…264V three-phase input. Kinetix 5500 drives work with Kinetix VP servo motors and connect to ControlLogix, GuardLogix and CompactLogix controllers through the Studio 5000 Logix Designer application, supporting integrated motion and safety on the EtherNet/IP network. This -ERS2 version has integrated safety: up to PL e, Category 3 (ISO 13849) and SIL CL3 (IEC 61508, IEC 61800-5-2 and IEC 62061). It has a 60 Ω, 50 W internal shunt resistor, IP20 protection and a 0…50 °C operating ambient temperature (with the 2198-KITCON-DSL connector kit).
Technical reference
| Product name | Allen-Bradley 2198-H040-ERS2 Kinetix 5500 Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198-H040-ERS2 |
| Category | Industrial Automation Parts |
| Product type | Single-axis EtherNet/IP servo drive |
| Control power | 21.6-26.4 V DC (24 V DC nominal) |
| Product series | Kinetix 5500 |
| AC input voltage | 195-264 V AC or 324-528 V AC three-phase |
| Safety interface | Integrated safety over EtherNet/IP |
| Network interface | EtherNet/IP |
| AC input frequency | 47-63 Hz |
| Continuous drive output power | 4 kW at 195-264 V AC three-phase; 8.3 kW at 324-528 V AC three-phase |
| Official catalog number | 2198-H040-ERS2 |
| Peak output current (RMS) | 32.5 A RMS; up to 1.0 s |
| Continuous output current (RMS) | 13 A RMS |
