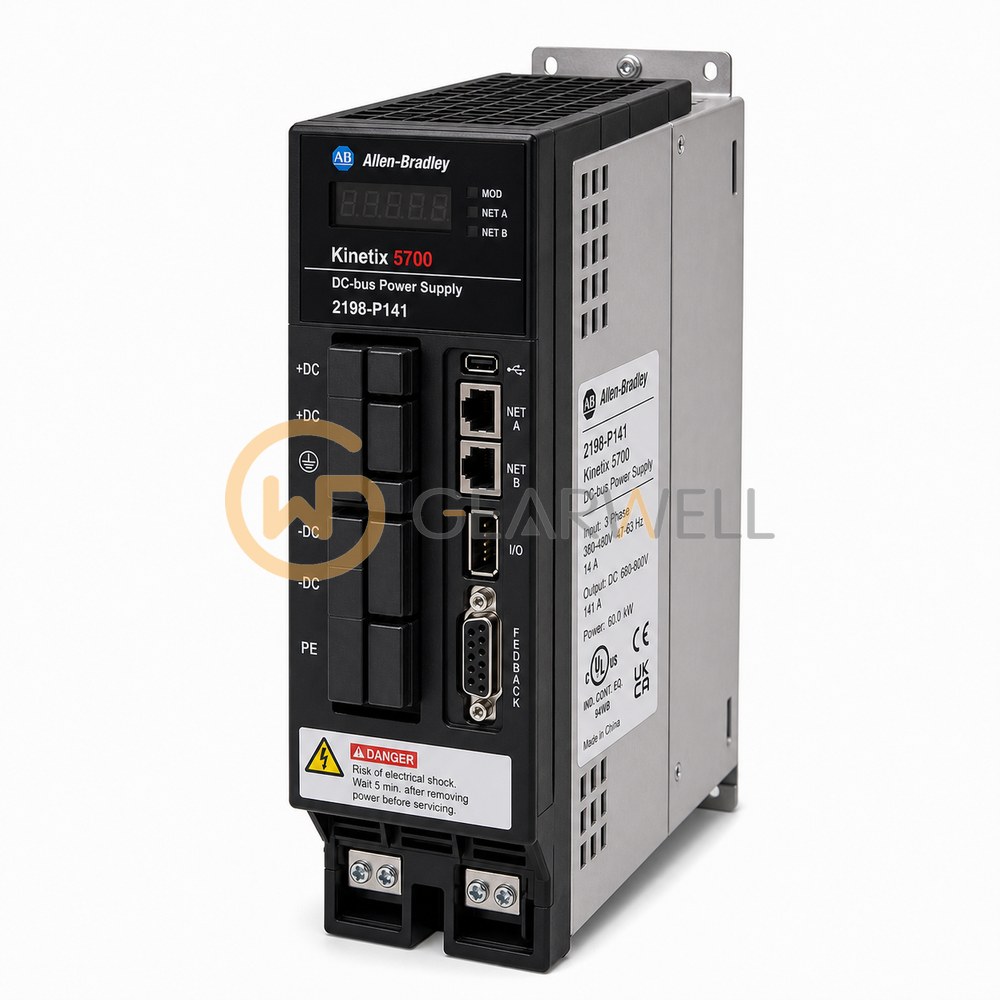

Allen-Bradley 2198-P141 Kinetix 5700 DC-Bus Power Supply
- Brand
- Allen-Bradley
- Model
- 2198-P141
- GEARWELL SKU
- GWP-000001769
- Category
- Servo Systems
Key specifications
- Product type
- DC-bus power supply
- Control power
- 21.6-26.4 V DC (24 V DC nominal)
- Product series
- Kinetix 5700
- AC input voltage
- 195-528 V AC three-phase
- Peak DC-bus output current
- 140.8 A DC; up to 1.0 s at 10% duty cycle
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-P141 is a Kinetix 5700 DC-bus power supply from Rockwell's Kinetix servo drive family. It accepts 195…528V rms three-phase input (240/480V nom) and supplies the 276…747V DC bus with 46.9 A DC continuous output current, 31.0 kW continuous and 93.0 kW peak output power at 480V (peak duration 1.0 s with 10% duty cycle). Main AC input current is 49.6 A. It has a 13.5 Ω, 200 W internal shunt and 99% efficiency. Kinetix 5700 drives are designed for machines with high axis counts and high power requirements and connect and operate by using ControlLogix, GuardLogix, CompactLogix or Compact GuardLogix controllers. It has IP20 protection and a 0…50 °C operating ambient temperature.
Technical reference
| Product name | Allen-Bradley 2198-P141 Kinetix 5700 DC-Bus Power Supply |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198-P141 |
| Category | Servo Systems |
| Product type | DC-bus power supply |
| Control power | 21.6-26.4 V DC (24 V DC nominal) |
| Product series | Kinetix 5700 |
| AC input voltage | 195-528 V AC three-phase |
| Peak DC-bus output current | 140.8 A DC; up to 1.0 s at 10% duty cycle |
| AC input frequency | 47-63 Hz |
| Approximate module weight | 6.91 kg |
| Main AC input current (RMS) | 49.6 A RMS |
| Continuous DC-bus output power | 15.5 kW at 240 V AC nominal three-phase input; 31 kW at 480 V AC nominal three-phase input |
| Nominal DC-bus output voltage | 276-747 V DC |
| Continuous DC-bus output current | 46.9 A DC |
| Official catalog number | 2198-P141 |
