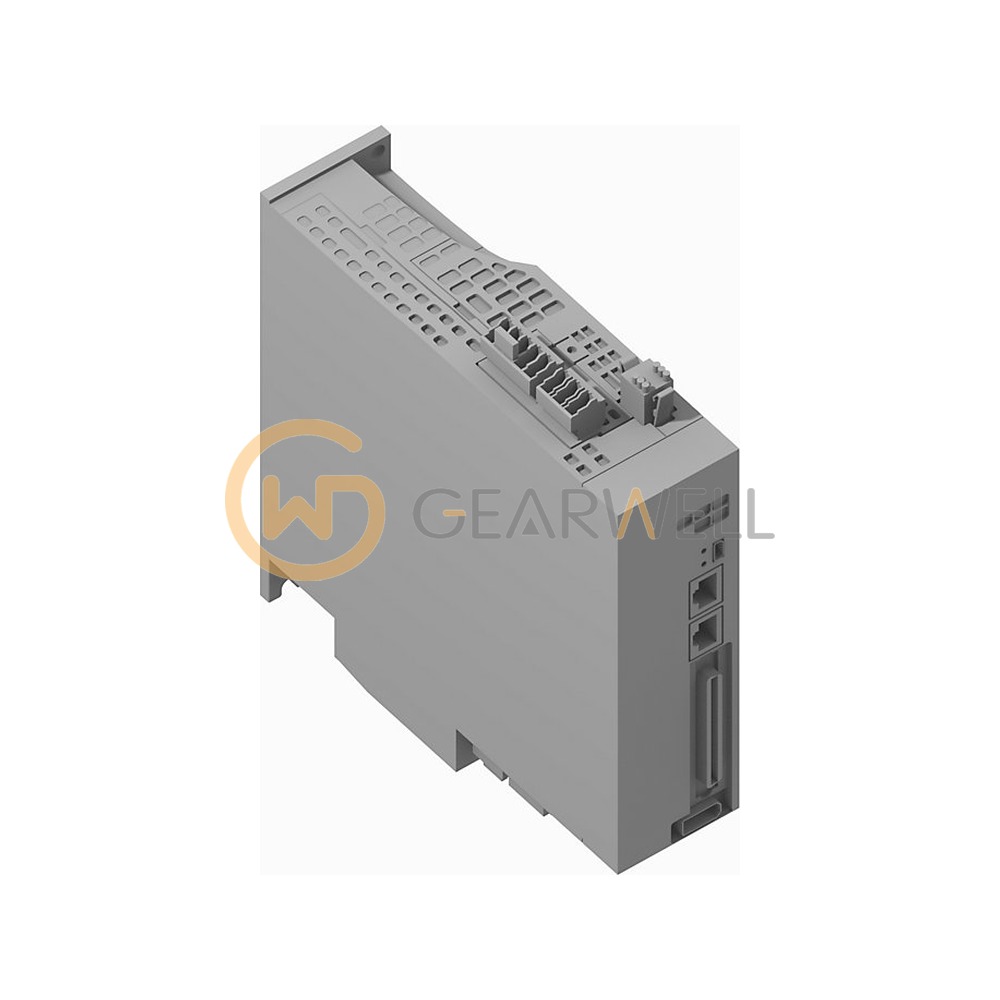

Allen-Bradley 2198-E1007-ERS Kinetix 5100 Servo Drive

Product overview

The Allen-Bradley 2198-E1007-ERS is a Kinetix 5100 EtherNet/IP indexing servo drive from Rockwell's Kinetix servo drive family. It accepts 95…132V rms single-phase (120V nom) or 170…253V rms single-phase or three-phase (200…230V nom) input and delivers 0.75 kW continuous output power at 230V, with 5.1 A rms continuous and 15.41 A rms peak output current (peak allowed for up to 1.8 seconds). Kinetix 5100 drives support applications controlled by stand-alone, Micro800, MicroLogix and Logix 5000 controllers, and come with standard inputs and outputs, different modes of control, Safe Torque Off and dual-port EtherNet/IP. It has a 100 Ω, 14 W internal shunt resistor. Functional safety is rated up to PL d, Category 3 (ISO 13849) and SIL CL2 (IEC 61508, IEC 61800-5-2 and IEC 62061). The operating ambient temperature is 0…50 °C.
