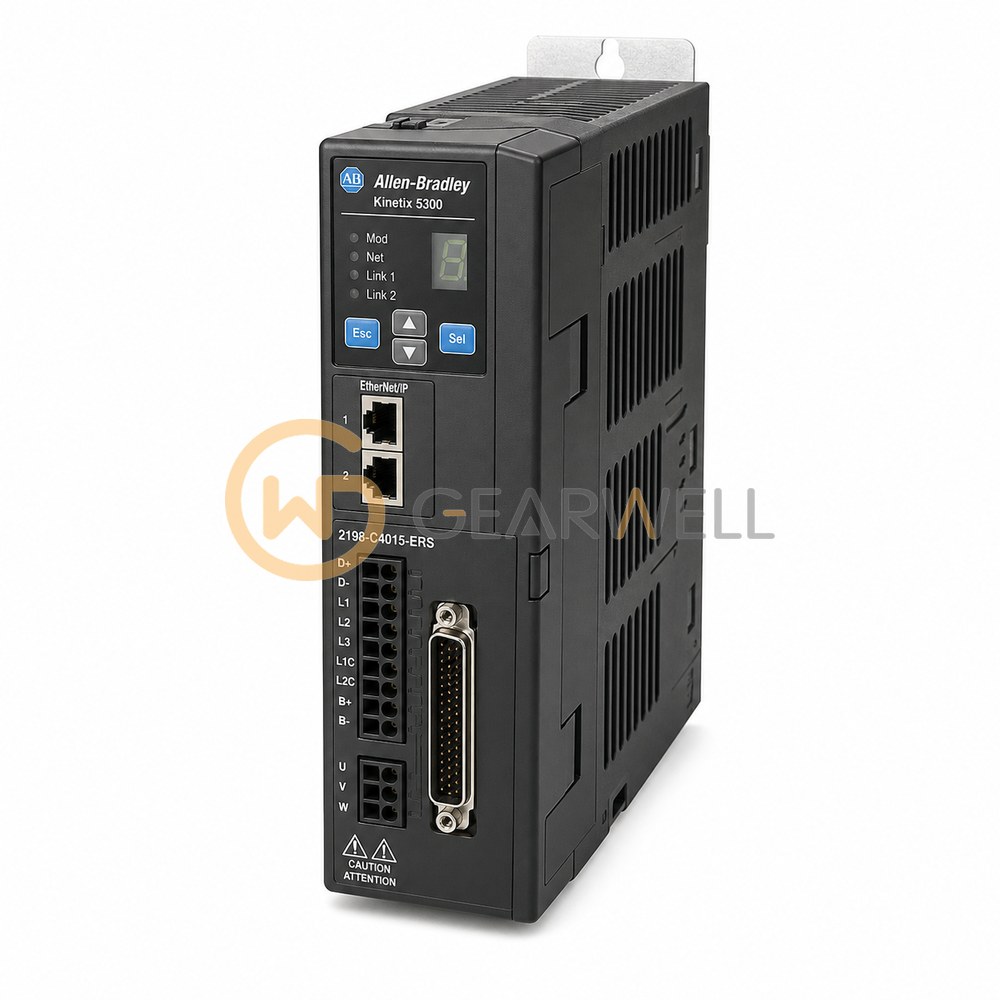

Allen-Bradley 2198-C4015-ERS Kinetix 5300 Servo Drive
- Brand
- Allen-Bradley
- Model
- 2198-C4015-ERS
- GEARWELL SKU
- GWP-000002011
- Category
- Servo Systems
Key specifications
- Voltage class
- 400 V class
- Product type
- Single-axis EtherNet/IP servo drive
- Control power
- 21.6-26.4 V DC (24 V DC nominal)
- AC input voltage
- 342-528 V AC three-phase
- Manufacturer lifecycle status (checked 2026-10-09)
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-C4015-ERS is a Kinetix 5300 servo drive from Rockwell's Kinetix servo drive family. It accepts 342…528V rms three-phase (480V nom) input and delivers 5.2 A rms continuous output current and 18.0 A rms peak (peak allowed for up to 1.0 seconds), with 2.78 kW continuous output power. Kinetix 5300 drives support integrated motion on the EtherNet/IP network with Logix 5000 controllers and the Studio 5000 Logix Designer application, and accept high-resolution and incremental feedback types. The drive comes with standard inputs, hardwired Safe Torque Off and dual-port EtherNet/IP. Functional safety is rated up to PL d, Category 3 (ISO 13849) and SIL CL2 (IEC 61508, IEC 61800-5-2 and IEC 62061). It has a 60 Ω, 50 W internal shunt resistor, IP20 protection and a 0…50 °C operating ambient temperature.
Technical reference
| Product name | Allen-Bradley 2198-C4015-ERS Kinetix 5300 Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198-C4015-ERS |
| Category | Servo Systems |
| Voltage class | 400 V class |
| Product type | Single-axis EtherNet/IP servo drive |
| Control power | 21.6-26.4 V DC (24 V DC nominal) |
| AC input voltage | 342-528 V AC three-phase |
| Manufacturer lifecycle status (checked 2026-10-09) | Active |
| Safety interface | Hardwired Safe Torque Off (STO) |
| Continuous drive output power | 2.78 kW at 480 V AC three-phase |
| Peak output current (RMS) | 18 A RMS; up to 1.0 s |
| Continuous output current (RMS) | 5.2 A RMS |
