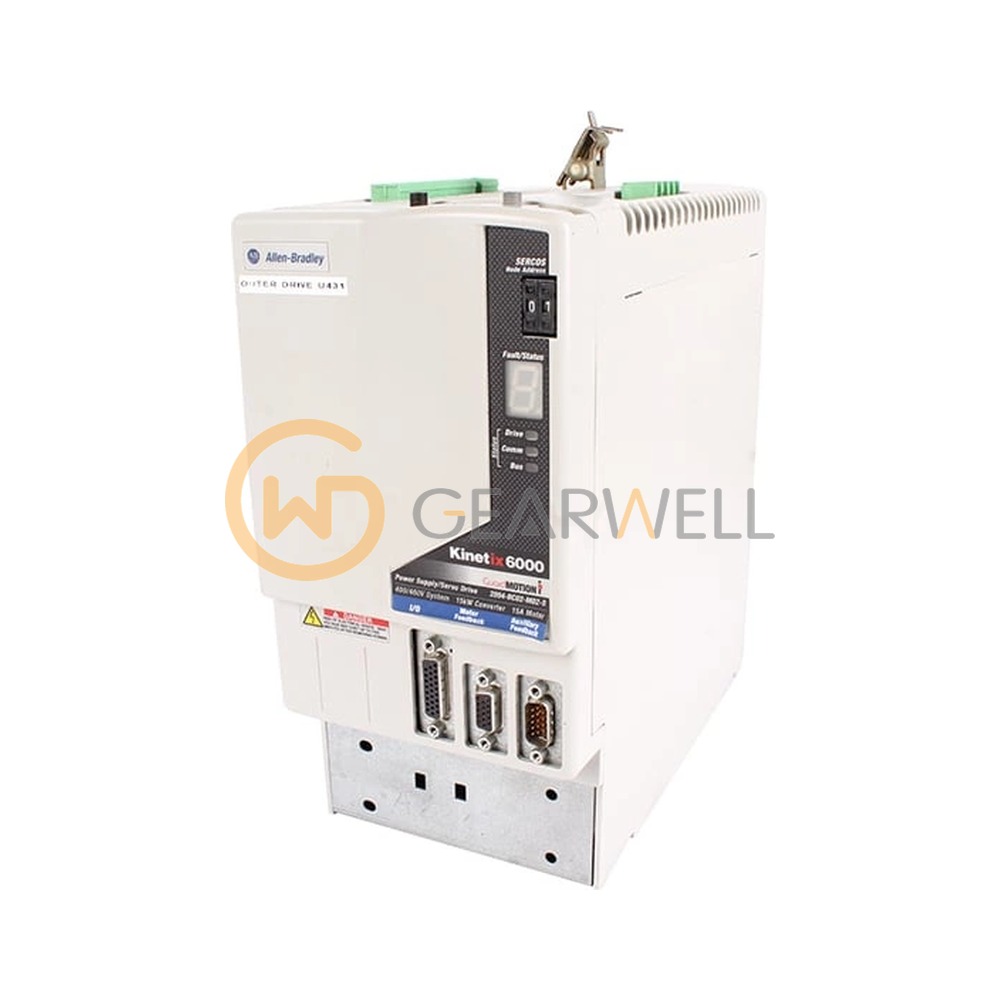

Allen-Bradley 2094-BC02-M02-S Kinetix 6000 Integrated Axis Module
- Brand
- Allen-Bradley
- Model
- 2094-BC02-M02-S
- GEARWELL SKU
- GWP-000003602
- Category
- Servo Systems
Key specifications
- Voltage
- 400/460 V
- Converter power
- 15 kW
- Safety function
- Safe torque off
- Inverter current
- 15 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BC02-M02-S is a Kinetix 6000 integrated axis module from Rockwell's Kinetix servo drive family. It combines a converter for 324…528V rms three-phase input (360…480V nom), 24.0 A nominal input current, with 15 kW continuous power output to the 650V DC bus, and an inverter rated 10.3 A rms continuous and 25.8 A rms peak output current (series B or later, peak-enhanced mode) with 6.6 kW nominal continuous power out. Kinetix 6000 multi-axis servo drives provide Integrated Motion through the Sercos interface and are compatible with Kinetix 6200 drives; target applications include packaging, material handling, converting and assembly. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BC02-M02-S Kinetix 6000 Integrated Axis Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BC02-M02-S |
| Category | Servo Systems |
| Voltage | 400/460 V |
| Converter power | 15 kW |
| Safety function | Safe torque off |
| Inverter current | 15 A |
