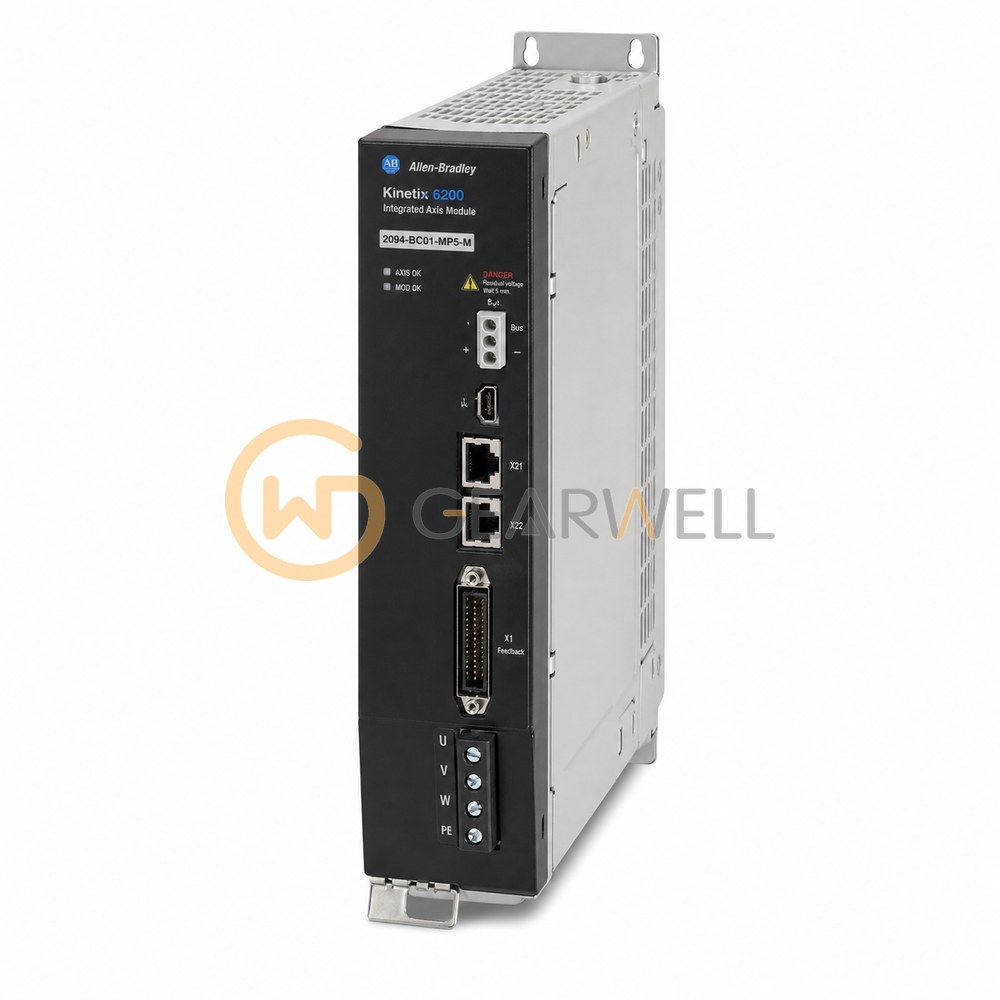

Allen-Bradley 2094-BC01-MP5-M Kinetix 6200/6500 6 kW Integrated Axis Power Module
- Brand
- Allen-Bradley
- Model
- 2094-BC01-MP5-M
- GEARWELL SKU
- GWP-000002024
- Category
- Servo Systems
Key specifications
- Continuous inverter output current
- 2.8 A rms; high-speed rating, derate below 5 Hz electrical output frequency
- Product type
- Kinetix 6200/6500 integrated axis power module
- PWM switching frequency
- 8 kHz
- Control-module requirement
- One compatible Kinetix 6200 or 6500 control module; network/safety depend on the selected control
- AC input voltage
- 324-528 V rms, three-phase; 360-480 V nominal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BC01-MP5-M is a Kinetix 6200 / 6500 integrated axis module from Rockwell's Kinetix servo drive family. It combines a converter for 324…528V rms three-phase input (360…480V nom), 10.0 A nominal input current, with 6 kW continuous power output to the 650V DC bus, and an inverter rated 2.8 A rms continuous and 7.0 A rms peak output current with 1.8 kW nominal continuous power out. Kinetix 6200 (Sercos interface) and Kinetix 6500 (Integrated Motion on EtherNet/IP) are modular drives whose control module sets the network and safety function, from Safe Torque Off to Safe Speed Monitor. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BC01-MP5-M Kinetix 6200/6500 6 kW Integrated Axis Power Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BC01-MP5-M |
| Category | Servo Systems |
| Continuous inverter output current | 2.8 A rms; high-speed rating, derate below 5 Hz electrical output frequency |
| Product type | Kinetix 6200/6500 integrated axis power module |
| PWM switching frequency | 8 kHz |
| Control-module requirement | One compatible Kinetix 6200 or 6500 control module; network/safety depend on the selected control |
| AC input voltage | 324-528 V rms, three-phase; 360-480 V nominal |
| Manufacturer lifecycle status (2026-10-09) | Discontinued |
| Nominal DC bus voltage | 650 V DC |
| Product description | 6 kW continuous converter-to-bus power; 1.8 kW nominal inverter power, 2.8 A rms continuous. Compatible control module required. |
| Continuous converter output power to DC bus | 6 kW |
| Nominal continuous inverter output power | 1.8 kW nominal; observe low-speed current derating |
