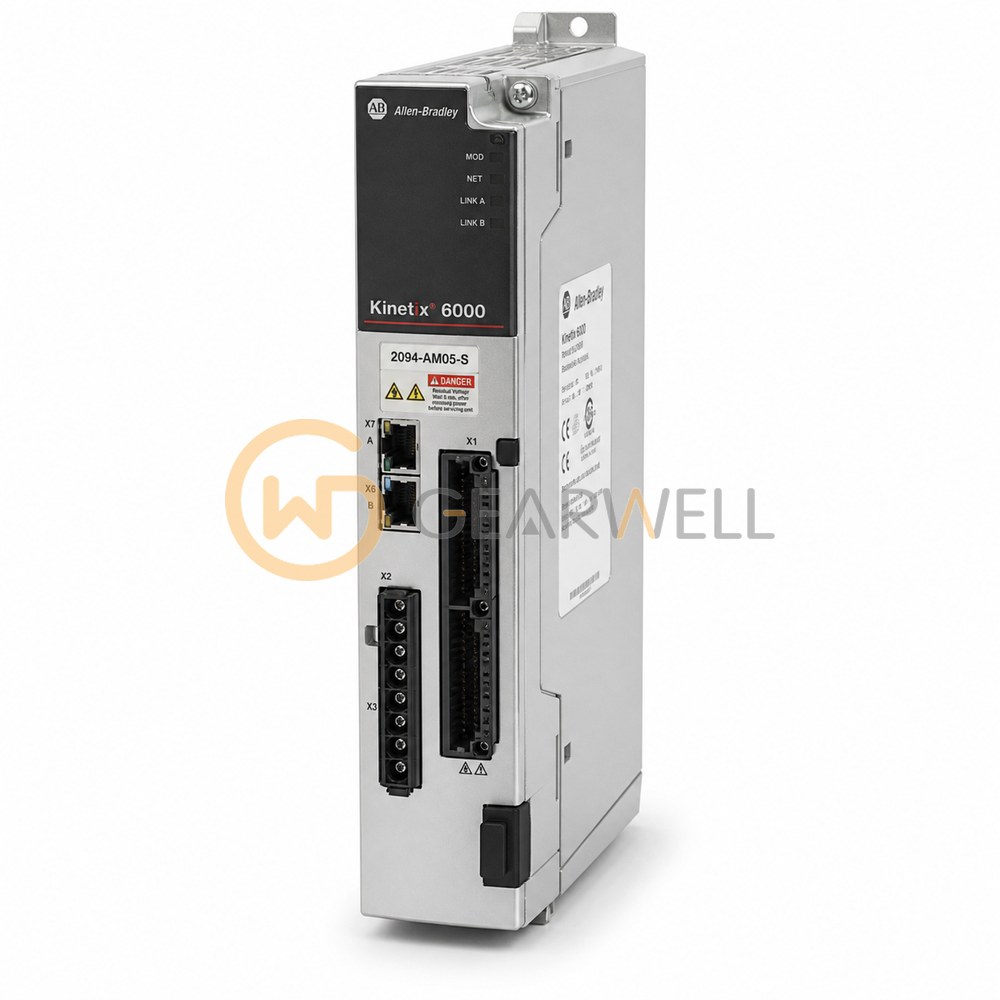

Allen-Bradley 2094-AM05-S Kinetix 6000 200 V Axis Module with STO
- Brand
- Allen-Bradley
- Model
- 2094-AM05-S
- GEARWELL SKU
- GWP-000003834
- Category
- Servo Systems
Key specifications
- Approximate weight
- 3.18 kg
- Module capacitance
- 2640 microfarads
- Product type
- Kinetix 6000 axis module
- Motion communication
- Sercos fiber-optic interface
- PWM switching frequency
- 4 kHz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-AM05-S is a Kinetix 6000 axis module from Rockwell's Kinetix servo drive family. It is a 200V-class inverter that runs from the 325V DC bus of the power rail, rated 34.6 A rms continuous and 51.9 A rms peak output current (peak duration 100 ms), with 11.0 kW nominal continuous power out. Kinetix 6000 multi-axis servo drives provide Integrated Motion through the Sercos interface and are compatible with Kinetix 6200 drives; target applications include packaging, material handling, converting and assembly. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-AM05-S Kinetix 6000 200 V Axis Module with STO |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-AM05-S |
| Category | Servo Systems |
| Approximate weight | 3.18 kg |
| Module capacitance | 2640 microfarads |
| Product type | Kinetix 6000 axis module |
| Motion communication | Sercos fiber-optic interface |
| PWM switching frequency | 4 kHz |
| Drive voltage class | 200 V class |
| Safe torque-off function | Included; requires the specified safety wiring and validated application |
| Energy absorption capacity | 99 J |
| Nominal DC bus input | 325 V DC |
| Nominal continuous inverter output power | 11.0 kW nominal |
| Continuous inverter output current | 34.6 A rms |
