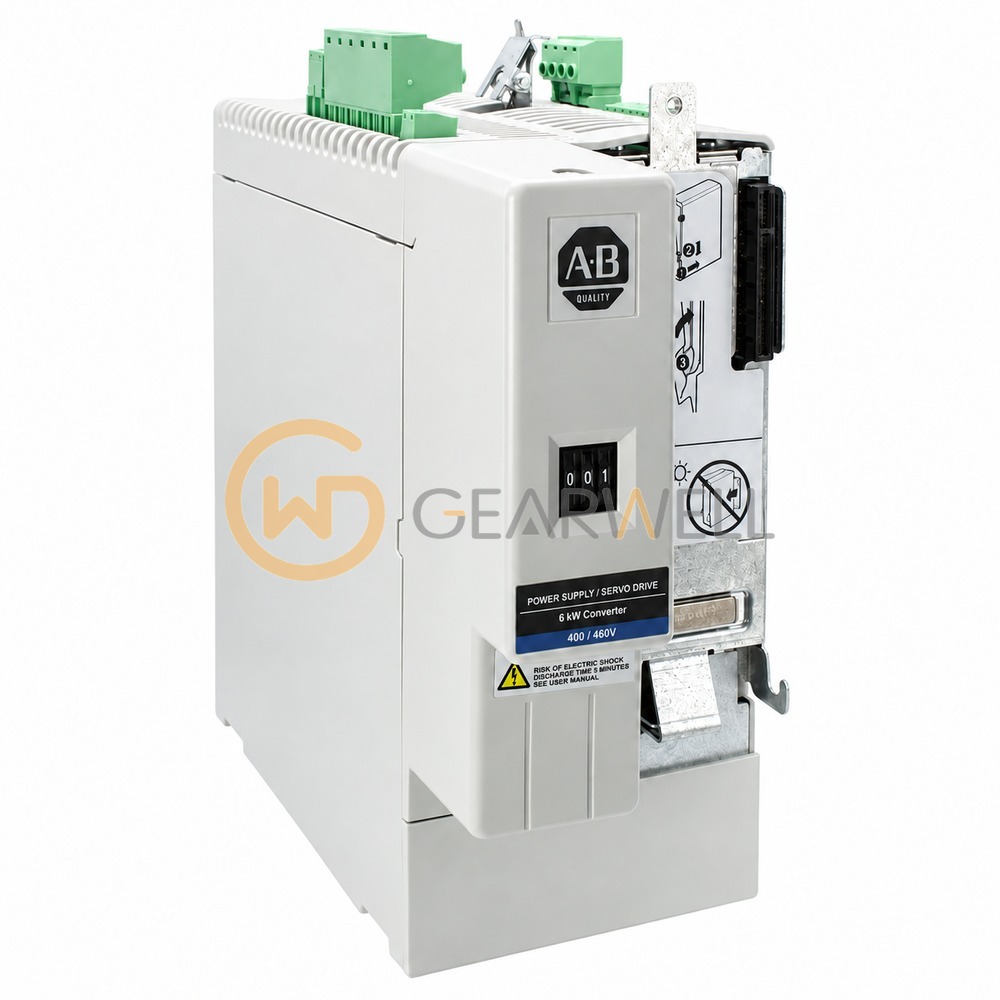

Allen-Bradley 2094-BC01-M01-M Kinetix 6200/6500 Integrated Axis Power Module
- Brand
- Allen-Bradley
- Model
- 2094-BC01-M01-M
- GEARWELL SKU
- GWP-000002519
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BC01-M01-M is a Kinetix 6200 / 6500 integrated axis module from Rockwell's Kinetix servo drive family. It combines a converter for 324…528V rms three-phase input (360…480V nom), 10.0 A nominal input current, with 6 kW continuous power output to the 650V DC bus, and an inverter rated 6.1 A rms continuous and 15.3 A rms peak output current with 3.9 kW nominal continuous power out. Kinetix 6200 (Sercos interface) and Kinetix 6500 (Integrated Motion on EtherNet/IP) are modular drives whose control module sets the network and safety function, from Safe Torque Off to Safe Speed Monitor. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BC01-M01-M Kinetix 6200/6500 Integrated Axis Power Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BC01-M01-M |
| Category | Servo Systems |
