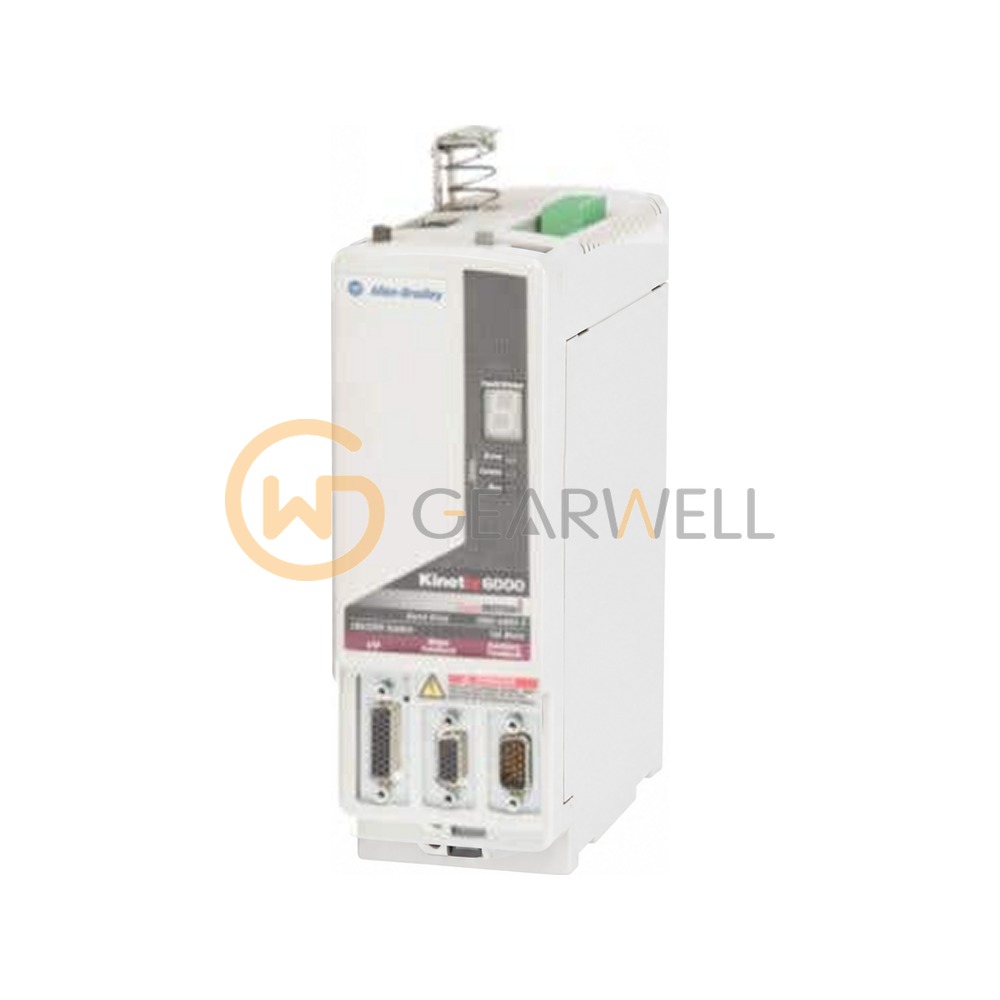

Allen-Bradley 2094-AM01-S Kinetix 6000 Axis Module
- Brand
- Allen-Bradley
- Model
- 2094-AM01-S
- GEARWELL SKU
- GWP-000007485
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-AM01-S is a Kinetix 6000 axis module from Rockwell's Kinetix servo drive family. It is a 200V-class inverter that runs from the 325V DC bus of the power rail, rated 6.0 A rms continuous and 12.0 A rms peak output current (peak duration 100 ms), with 1.9 kW nominal continuous power out. Kinetix 6000 multi-axis servo drives provide Integrated Motion through the Sercos interface and are compatible with Kinetix 6200 drives; target applications include packaging, material handling, converting and assembly. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-AM01-S Kinetix 6000 Axis Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-AM01-S |
| Category | Servo Systems |
