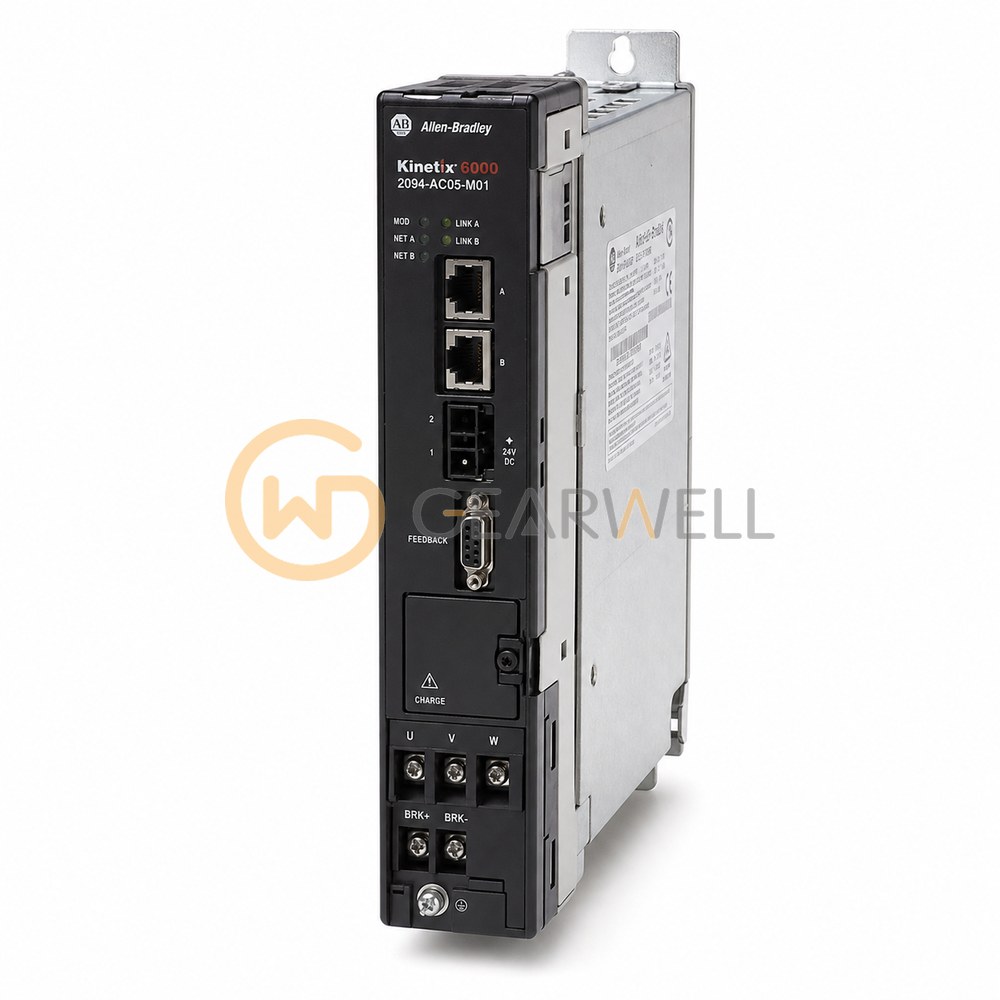

Allen-Bradley 2094-AC05-M01 Kinetix 6000 200 V Integrated Axis Module, Non-STO
- Brand
- Allen-Bradley
- Model
- 2094-AC05-M01
- GEARWELL SKU
- GWP-000000781
- Category
- Servo Systems
Key specifications
- Product type
- Kinetix 6000 integrated axis module, without safe torque-off
- Control-power input
- 95-264 V rms, single-phase
- PWM switching frequency
- 8 kHz
- Drive voltage class
- 200 V class
- AC input frequency
- 47-63 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 2094-AC05-M01 Kinetix 6000 200 V Integrated Axis Module, Non-STO |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-AC05-M01 |
| Category | Servo Systems |
| Product type | Kinetix 6000 integrated axis module, without safe torque-off |
| Control-power input | 95-264 V rms, single-phase |
| PWM switching frequency | 8 kHz |
| Drive voltage class | 200 V class |
| AC input frequency | 47-63 Hz |
| Continuous inverter current, sine zero-to-peak | 8.5 A |
| Safe torque-off function | Not included; exact catalog has no -S suffix |
| AC input voltage (GMC-SG001H, May 2003) | 195-265 V rms, three-phase; verify hardware revision/nameplate limits |
| Continuous converter output power to DC bus | 3 kW |
| Nominal DC bus voltage | 325 V DC |
| Continuous inverter output power | 1.9 kW |
| Continuous inverter output current | 6.0 A rms |
