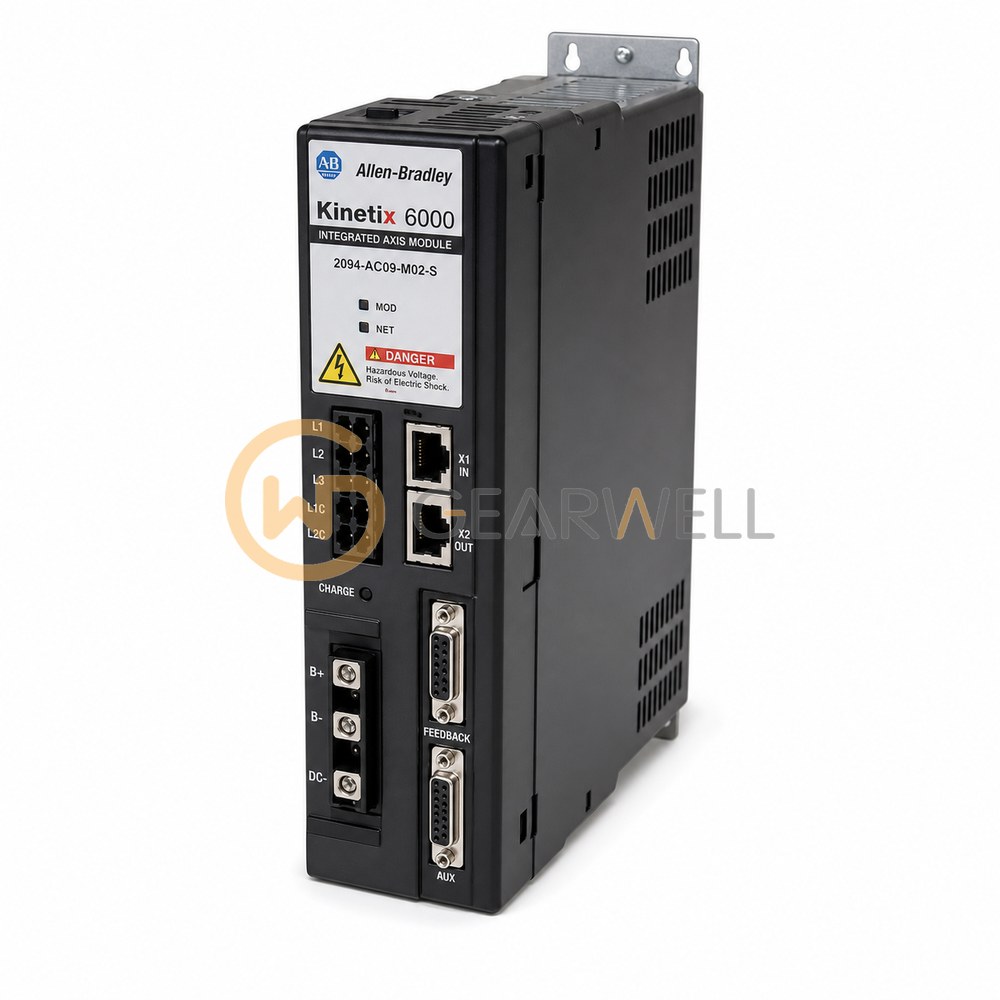

Allen-Bradley 2094-AC09-M02-S Kinetix 6000 200 V Integrated Axis Module with STO
- Brand
- Allen-Bradley
- Model
- 2094-AC09-M02-S
- GEARWELL SKU
- GWP-000003675
- Category
- Servo Systems
Key specifications
- Product type
- Kinetix 6000 integrated axis module
- Motion communication
- Sercos fiber-optic interface
- Control-power input (Series A and Series C or later)
- 95-264 V rms, single-phase
- Drive voltage class
- 200 V class
- AC input frequency (Series A and Series C or later)
- 47-63 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-AC09-M02-S is a Kinetix 6000 integrated axis module from Rockwell's Kinetix servo drive family. It combines a converter for 195…264V rms three-phase input (230V nom), 36 A nominal input current, with 11.3 kW continuous and 22.6 kW peak power output to the 325V DC bus, and an inverter rated 10.6 A rms continuous and 21.2 A rms peak output current with 3.4 kW nominal continuous power out. Kinetix 6000 multi-axis servo drives provide Integrated Motion through the Sercos interface and are compatible with Kinetix 6200 drives; target applications include packaging, material handling, converting and assembly. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-AC09-M02-S Kinetix 6000 200 V Integrated Axis Module with STO |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-AC09-M02-S |
| Category | Servo Systems |
| Product type | Kinetix 6000 integrated axis module |
| Motion communication | Sercos fiber-optic interface |
| Control-power input (Series A and Series C or later) | 95-264 V rms, single-phase |
| Drive voltage class | 200 V class |
| AC input frequency (Series A and Series C or later) | 47-63 Hz |
| Continuous inverter current, sine zero-to-peak | 15.0 A |
| Safe torque-off function | Included; requires the specified safety wiring and validated application |
| AC input voltage (Series A and Series C or later) | 195-264 V rms, three-phase |
| Continuous converter output power to DC bus (Series A and Series C or later) | 6 kW |
| Nominal DC bus voltage | 325 V DC |
| Nominal continuous inverter output power | 3.4 kW nominal |
| Continuous inverter output current | 10.6 A rms |
