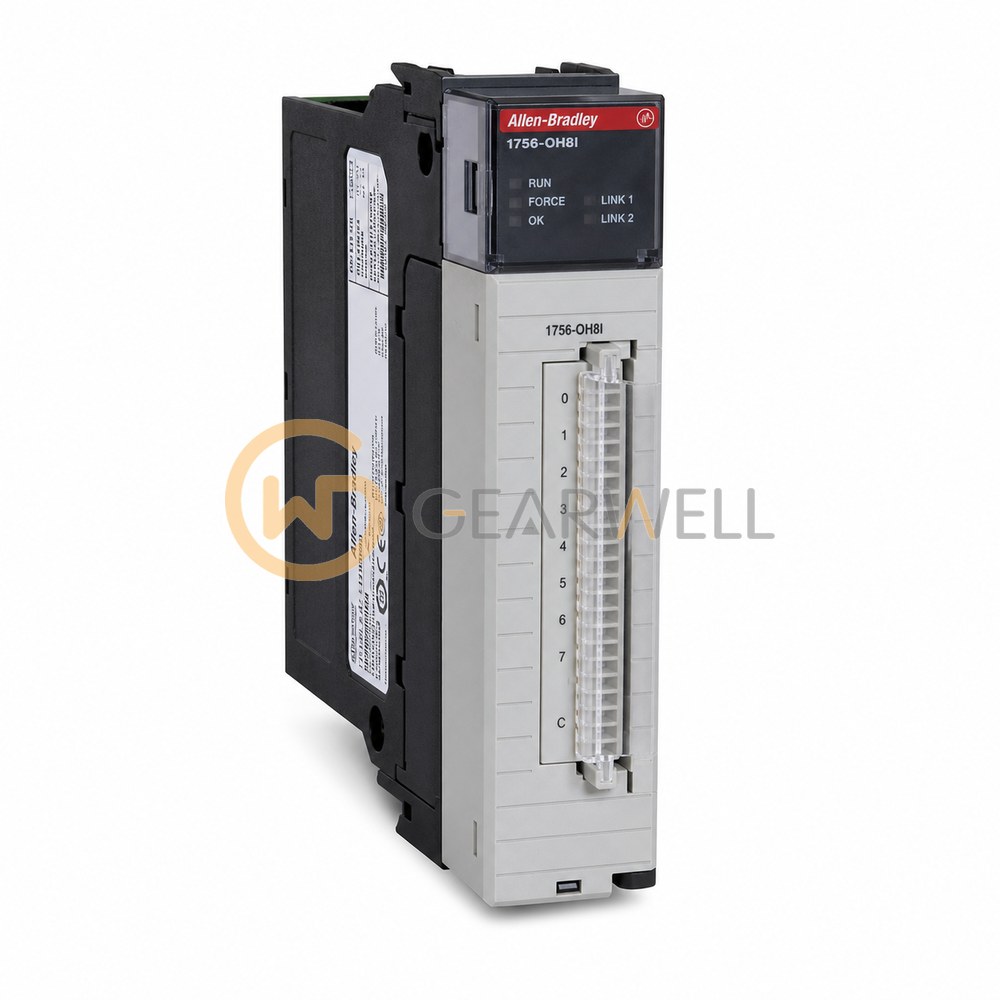

Allen-Bradley 1756OH8I ControlLogix 8-Point Isolated DC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OH8I
- GEARWELL SKU
- GWP-000001026
- Category
- PLCs & I/O
Key specifications
- Fusing
- Not protected; fused IFM recommended
- Outputs
- 8 individually isolated
- Product type
- ControlLogix isolated DC output module
- Enclosure type
- None (open-style)
- Voltage category
- 125 V DC sink/source
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OH8I is a ControlLogix DC (90…146V) isolated output module for the 1756 chassis. It has eight individually isolated outputs for 125V DC loads, wired sinking or sourcing, with an operating range of 90…146V DC, up to 2 A per point and 8 A per module at 60 °C (140 °F). It draws 210 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OH8I ControlLogix 8-Point Isolated DC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OH8I |
| Category | PLCs & I/O |
| Fusing | Not protected; fused IFM recommended |
| Outputs | 8 individually isolated |
| Product type | ControlLogix isolated DC output module |
| Enclosure type | None (open-style) |
| Voltage category | 125 V DC sink/source |
| Current per point, max | 2 A at 60 °C |
| Current per module, max | 8 A at 60 °C |
| Operating voltage range | 90...146 V DC |
