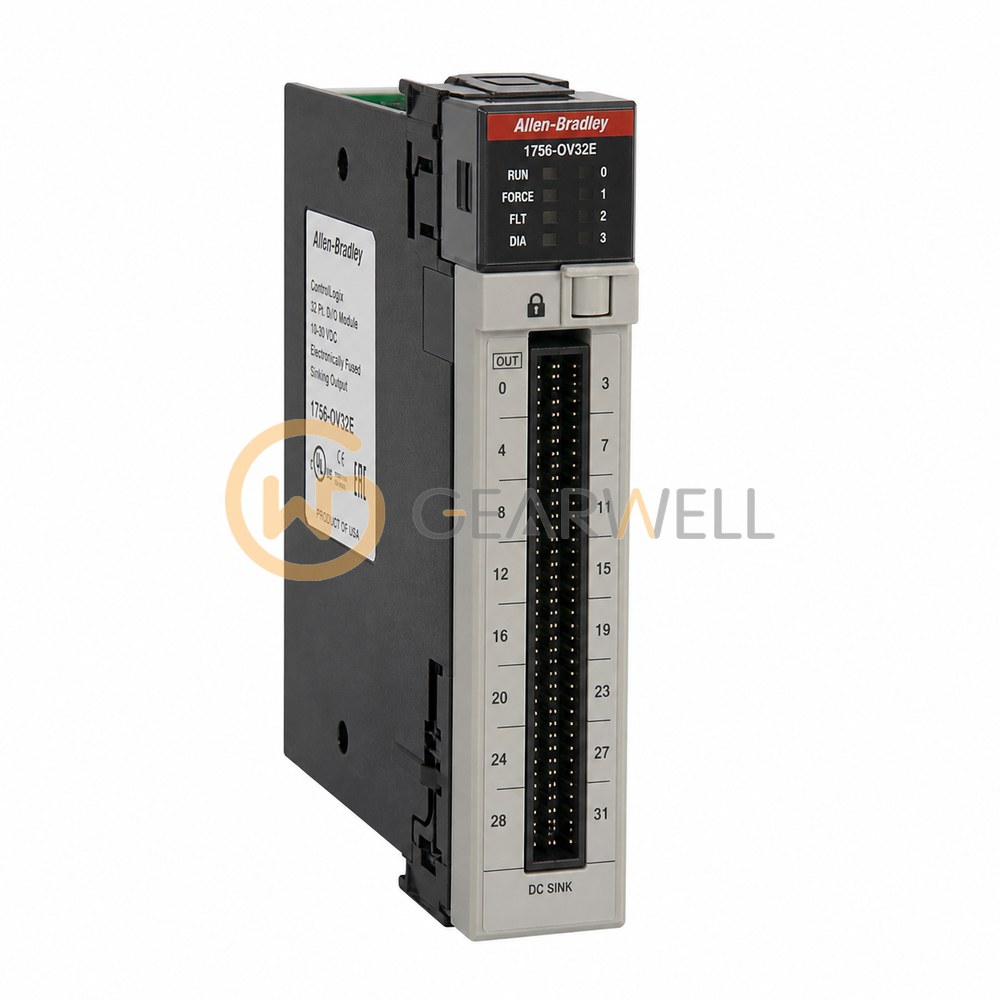

Allen-Bradley 1756OV32E ControlLogix 32-Point Sinking DC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OV32E
- GEARWELL SKU
- GWP-000001151
- Category
- PLCs & I/O
Key specifications
- Isolation
- 250 V continuous between groups of 16 outputs
- Product type
- ControlLogix 32 Point D/O Module
- Terminal count
- 36-pin
- Lifecycle status
- Active
- Number Of Channels
- 32
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OV32E is a ControlLogix DC (10…30V) electronically fused, sinking output module for the 1756 chassis. It has 32 electronically fused sinking outputs in two groups of 16 for 12/24V DC loads, with an operating range of 10…30V DC, up to 0.35 A per point and 10 A per module at 60 °C (140 °F). It draws 390 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OV32E ControlLogix 32-Point Sinking DC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OV32E |
| Category | PLCs & I/O |
| Isolation | 250 V continuous between groups of 16 outputs |
| Product type | ControlLogix 32 Point D/O Module |
| Terminal count | 36-pin |
| Lifecycle status | Active |
| Number Of Channels | 32 |
| Product description | 10-30 VDC Electronically Fused Sinking Output 32 Pt (36 Pin) |
| Output Voltage and Current | 1A Per Point @10-30V DC |
