Allen-Bradley 1756OB8EI ControlLogix 8-Point Isolated DC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OB8EI
- GEARWELL SKU
- GWP-000000188
- Category
- PLCs & I/O
Key specifications
- Isolation
- 250 V continuous between outputs
- Product type
- ControlLogix 8 Point D/O Module
- Terminal count
- 36-pin
- Lifecycle status
- Active
- Number Of Channels
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

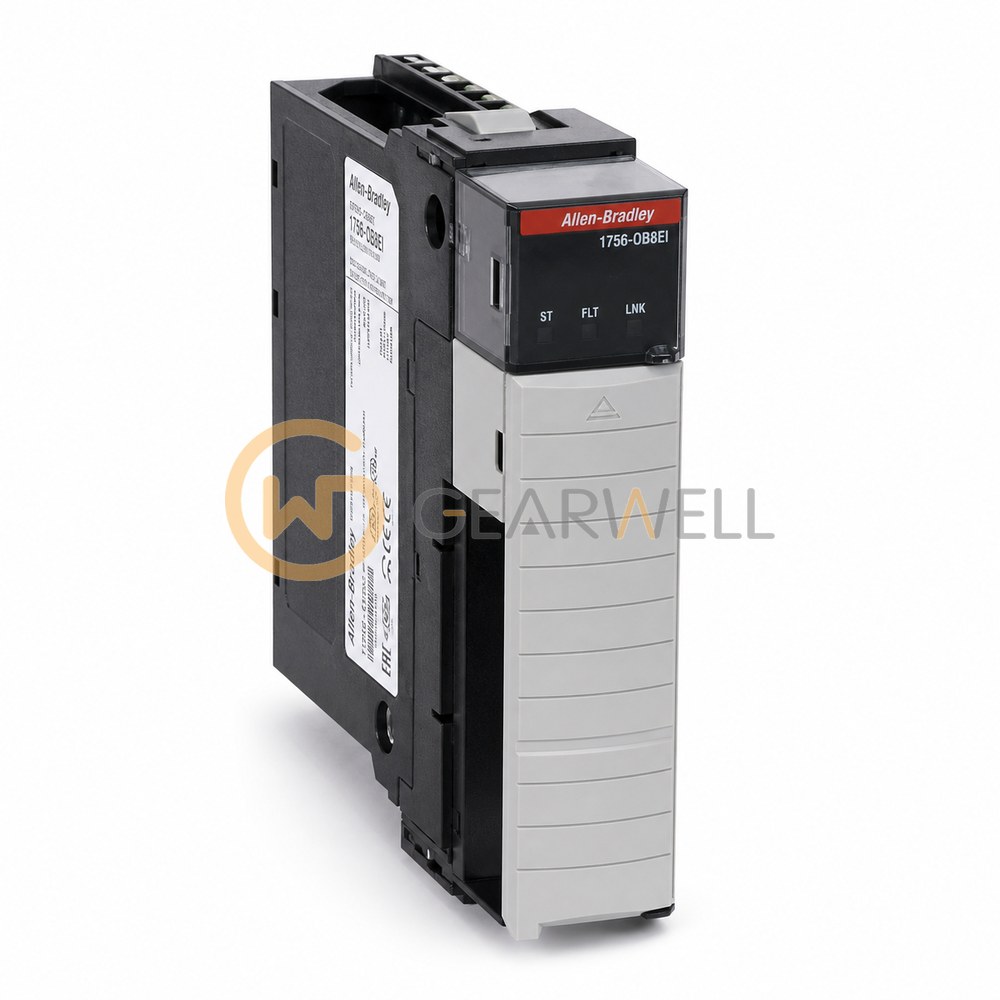

The Allen-Bradley 1756-OB8EI is a ControlLogix DC (10…30V) electronically fused, isolated output module for the 1756 chassis. It has eight individually isolated, electronically fused sourcing outputs for 12/24V DC loads, with an operating range of 10…30V DC, up to 2 A per point at 60 °C (140 °F) and 16 A per module at 55 °C (131 °F). It draws 250 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OB8EI ControlLogix 8-Point Isolated DC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OB8EI |
| Category | PLCs & I/O |
| Isolation | 250 V continuous between outputs |
| Product type | ControlLogix 8 Point D/O Module |
| Terminal count | 36-pin |
| Lifecycle status | Active |
| Number Of Channels | 8 |
| Product description | 10-30 VDC Isolated Electronically Fused Output 8 Pts (36 Pin) |
| Operating voltage range | 10-30 V DC |
