Allen-Bradley 1756OB32 ControlLogix 32-Point DC Output Module
- Brand
- Allen-Bradley
- Model
- 1756OB32
- GEARWELL SKU
- GWP-000000674
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix 32 Pt 12/24V DC D/O Module
- Output points
- 32
- Terminal count
- 36-pin
- Lifecycle status
- Active
- Product description
- 10-31 VDC Output 32 Pts (36 Pin)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

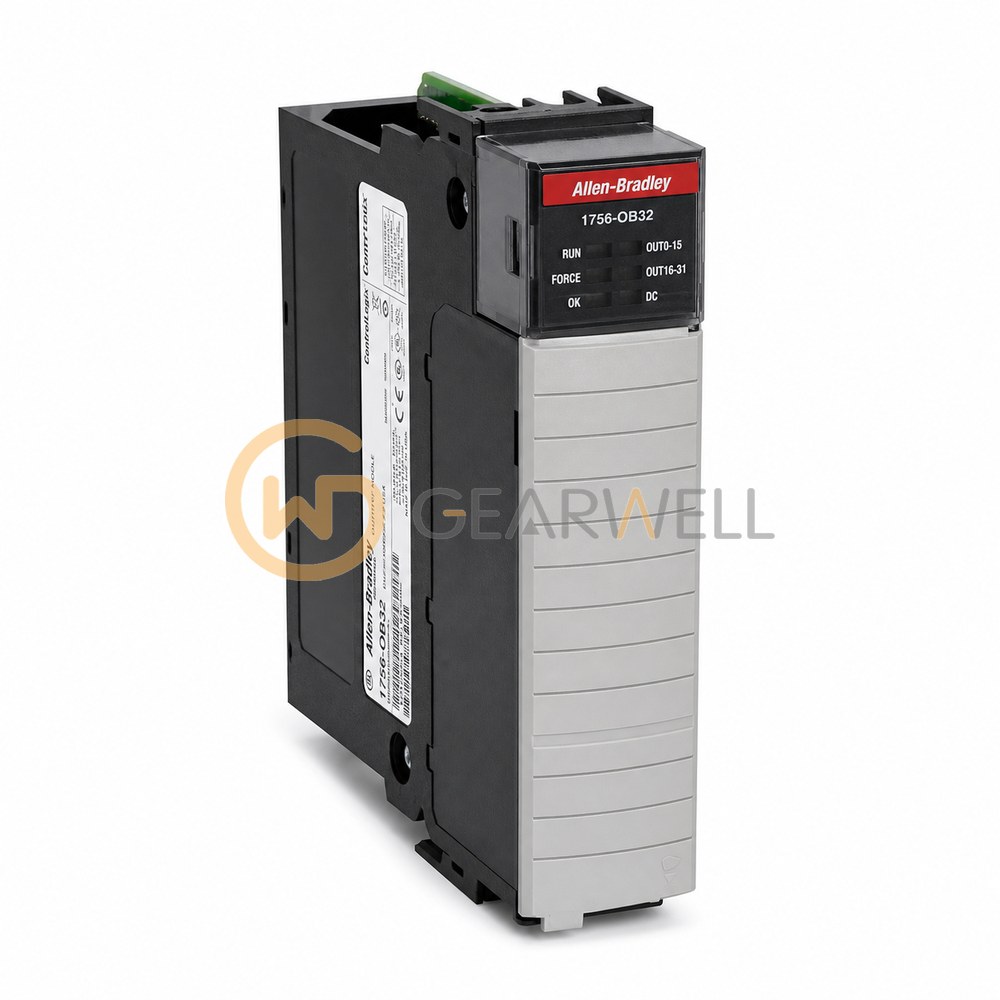

The Allen-Bradley 1756-OB32 is a ControlLogix DC (10…31.2V) output module for the 1756 chassis. It has 32 sourcing outputs in two groups of 16 for 12/24V DC loads, with an operating range of 10…31.2V DC, up to 0.35 A per point and 10 A per module at 60 °C (140 °F). It draws 300 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OB32 ControlLogix 32-Point DC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OB32 |
| Category | PLCs & I/O |
| Product type | ControlLogix 32 Pt 12/24V DC D/O Module |
| Output points | 32 |
| Terminal count | 36-pin |
| Lifecycle status | Active |
| Product description | 10-31 VDC Output 32 Pts (36 Pin) |
| Output Voltage and Current | 0.35A Per Point @10-31V DC |
