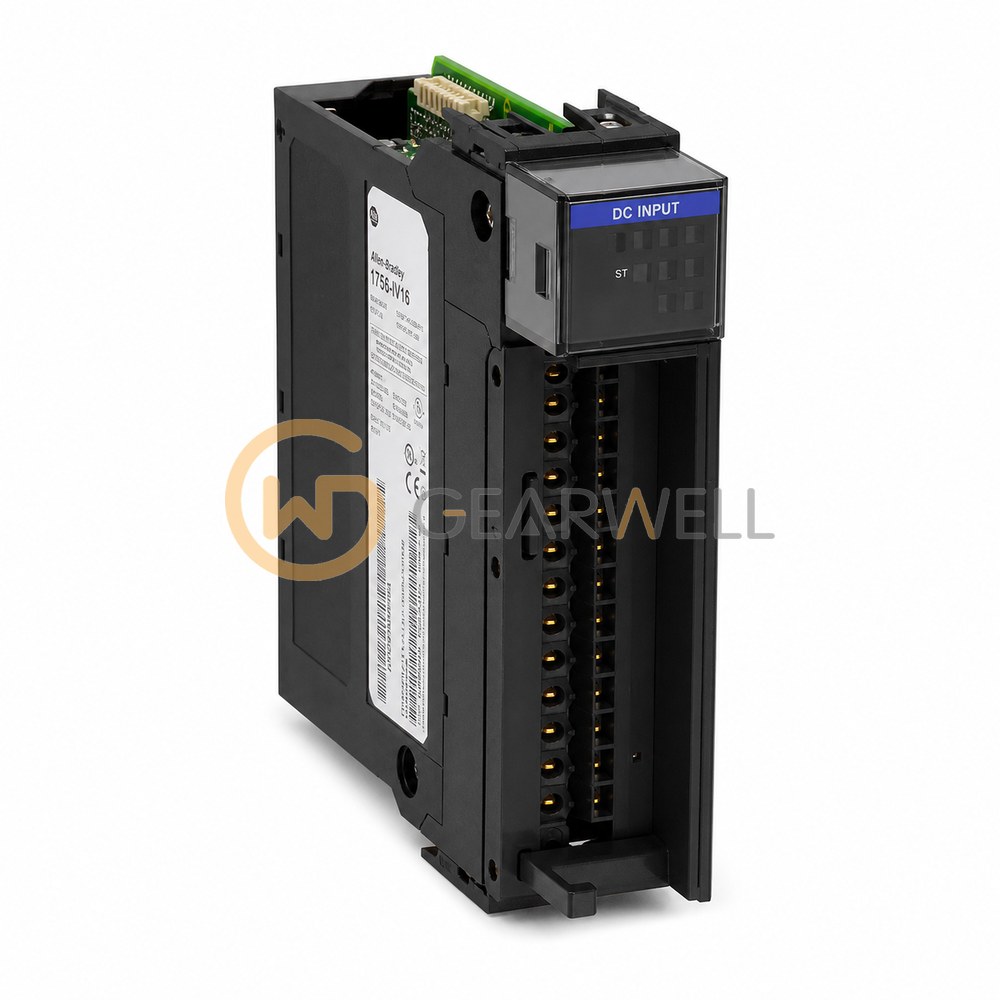

Allen-Bradley 1756IV16 ControlLogix 16-Point Sourcing DC Input Module
- Brand
- Allen-Bradley
- Model
- 1756IV16
- GEARWELL SKU
- GWP-000001041
- Category
- PLCs & I/O
Key specifications
- Isolation
- 250 V continuous between groups of 8 inputs
- Product type
- ControlLogix 16 Pt 12/24V DC D/I Module
- Terminal count
- 20-pin
- Lifecycle status
- Active
- Number Of Channels
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IV16 is a ControlLogix DC (10…30V) sourcing input module for the 1756 chassis. It has 16 sourcing inputs in two groups of eight for 12/24V DC signals, with an operating range of 10…30V DC and input time stamps to ±200 µs. It draws 110 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBNH or 1756-TBSH removable terminal block, which is ordered separately. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IV16 ControlLogix 16-Point Sourcing DC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IV16 |
| Category | PLCs & I/O |
| Isolation | 250 V continuous between groups of 8 inputs |
| Product type | ControlLogix 16 Pt 12/24V DC D/I Module |
| Terminal count | 20-pin |
| Lifecycle status | Active |
| Number Of Channels | 16 |
| Product description | 10-30 VDC Sourcing Input 16 Pts (20 Pin) |
| Operating voltage range | 10-30 V DC |
