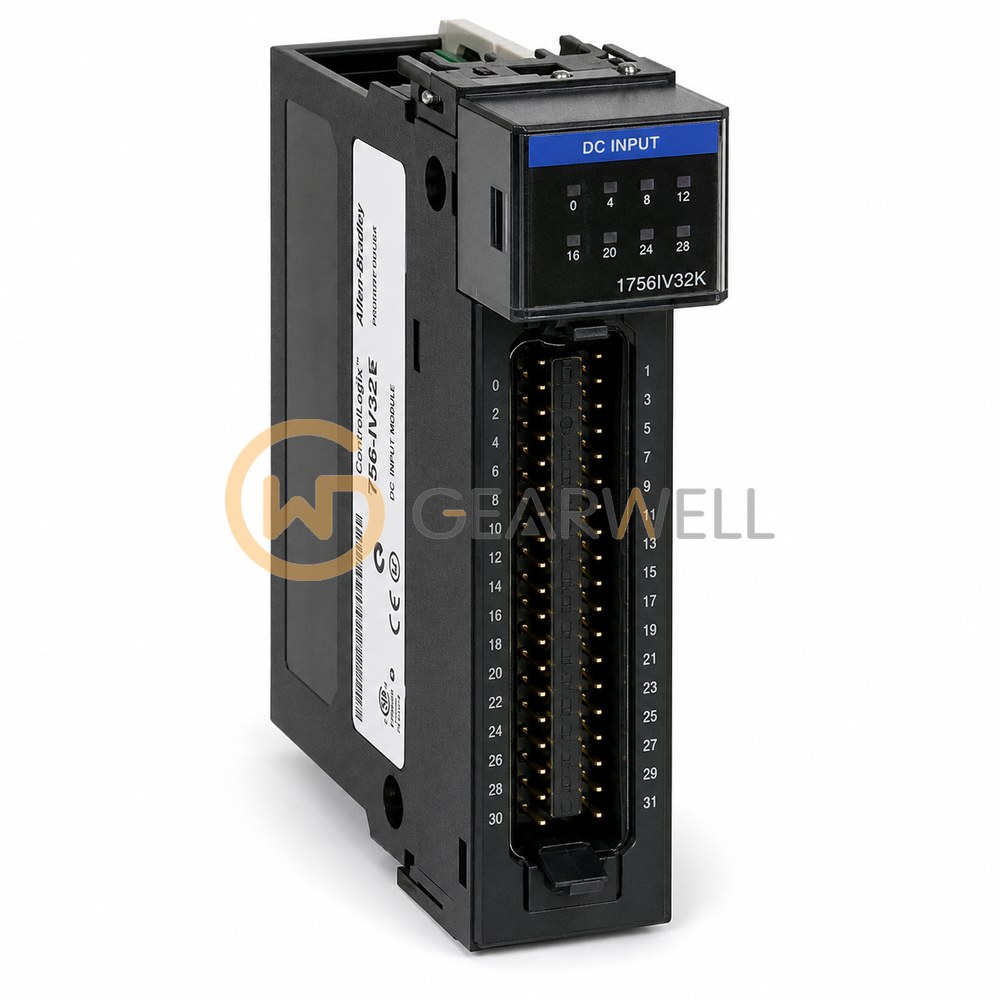

Allen-Bradley 1756IV32K ControlLogix Conformally Coated 32-Point Sourcing DC Input Module
- Brand
- Allen-Bradley
- Model
- 1756IV32K
- GEARWELL SKU
- GWP-000004221
- Category
- PLCs & I/O
Key specifications
- Inputs
- 32 (16 points/group)
- Product type
- ControlLogix DC input module
- Enclosure type
- None (open-style)
- Voltage category
- 12/24 V DC source
- Current draw at 5.1 V
- 120 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IV32K is a ControlLogix DC (10…30V) sourcing input module for the 1756 chassis. It has 32 sourcing inputs in two groups of 16 for 12/24V DC signals, with an operating range of 10…30V DC and input time stamps to ±200 µs. It draws 120 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IV32K ControlLogix Conformally Coated 32-Point Sourcing DC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IV32K |
| Category | PLCs & I/O |
| Inputs | 32 (16 points/group) |
| Product type | ControlLogix DC input module |
| Enclosure type | None (open-style) |
| Voltage category | 12/24 V DC source |
| Current draw at 5.1 V | 120 mA |
| Isolation voltage | 250 V continuous, inputs-to-backplane and group-to-group |
| Total backplane power | 0.66 W |
| Operating voltage range | 10...30 V DC |
