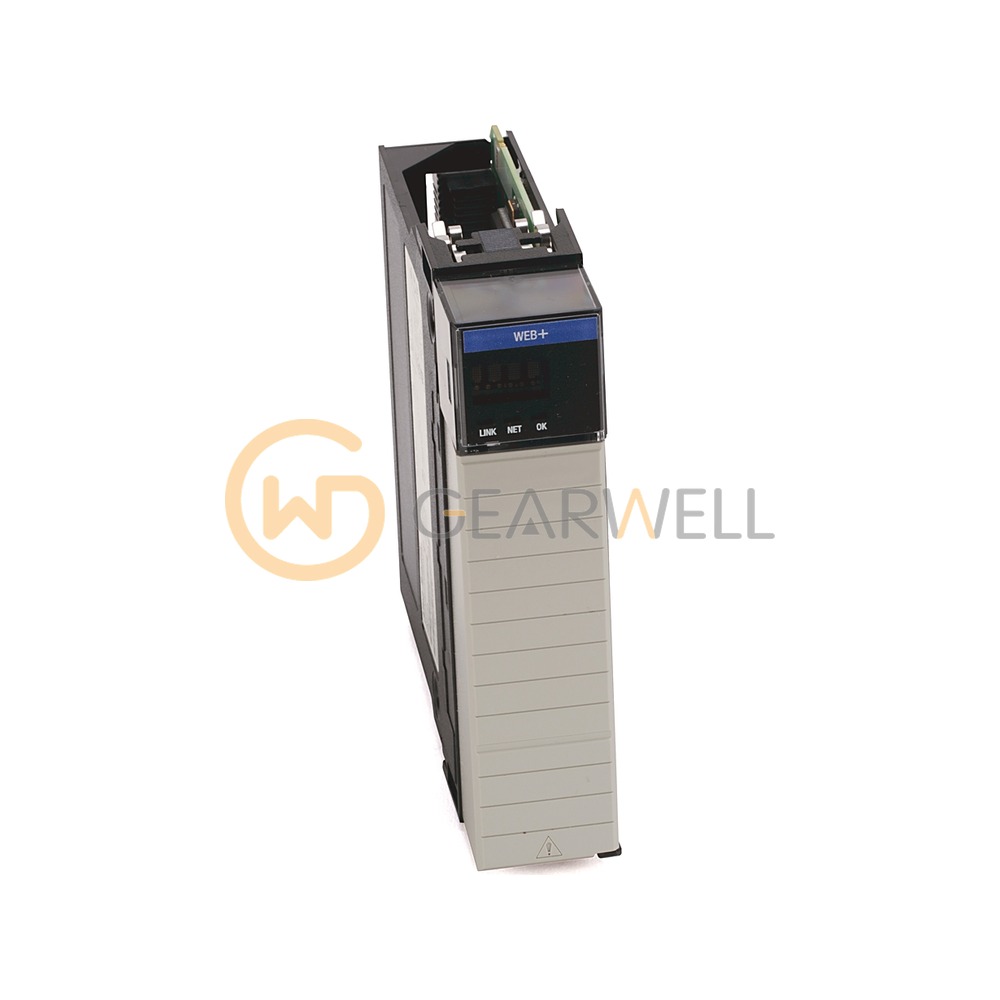

Allen-Bradley 1756-EWEB ControlLogix EtherNet/IP Web Server Module
- Brand
- Allen-Bradley
- Model
- 1756-EWEB
- GEARWELL SKU
- GWP-000014563
- Category
- Industrial Communication
Key specifications
- Interface
- 1 Copper RJ45 (10/100 Mbps)
- Description
- Ethernet/IP Enhanced Web Server Module (supports 64 TCP/IP connections)
- Current draw
- 700mA @ 5.1V DC, 3mA @ 24V DC
- Catalog number
- 1756-EWEB
- Special Features
- Web Server
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-EWEB is the ControlLogix EtherNet/IP web server module, which gives access to information from the control system through a web browser. It connects at 10/100 Mbps, draws 700 mA at 5.1V DC and 3 mA at 24V DC, dissipates 3.7 W, takes 1 slot and works at 0 °C < Ta < 60 °C. Rockwell lists it as End of Life as of November 1, 2021, with the ControlLogix 1756 Compute module (1756-CMS1B1, 1756-CMS1C1) as the engineered replacement.
Technical reference
| Product name | Allen-Bradley 1756-EWEB ControlLogix EtherNet/IP Web Server Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756-EWEB |
| Category | Industrial Communication |
| Interface | 1 Copper RJ45 (10/100 Mbps) |
| Description | Ethernet/IP Enhanced Web Server Module (supports 64 TCP/IP connections) |
| Current draw | 700mA @ 5.1V DC, 3mA @ 24V DC |
| Catalog number | 1756-EWEB |
| Special Features | Web Server |
| Power dissipation | 3.7 W |
| Communication rate | 10/100 Mbps |
| Operating temperature | 0 °C <60 °C (32 °F <140 °F) |
| Lifecycle status (Rockwell Automation) | Discontinued |
