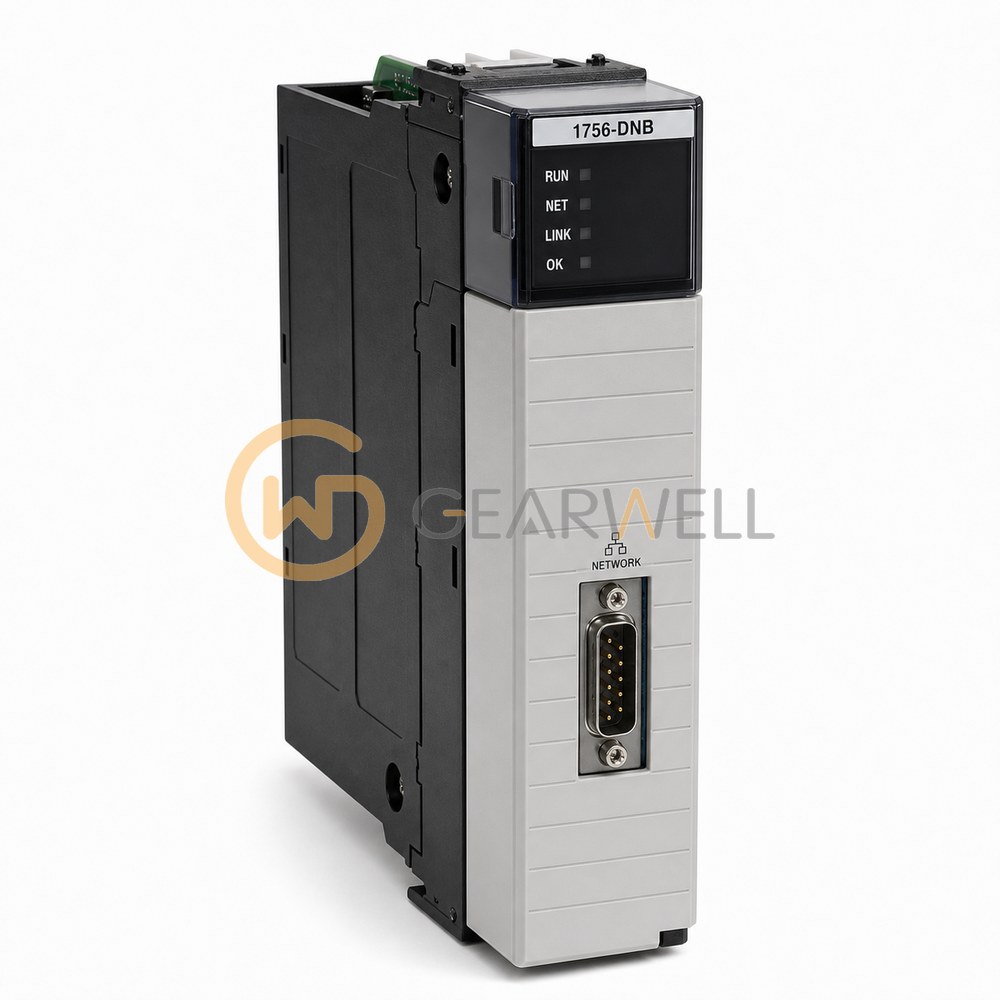

Allen-Bradley 1756-DNB ControlLogix DeviceNet Scanner Module
- Brand
- Allen-Bradley
- Model
- 1756-DNB
- GEARWELL SKU
- GWP-000002706
- Category
- PLCs & I/O
Key specifications
- Network
- DeviceNet
- Backplane current
- 400 mA at 5.1 V DC; 0 mA at 24 V DC
- DeviceNet network power requirements
- For CE LVD compliance, use a SELV or PELV source. For UL compliance, use a Class 2 or limited-voltage/current source.
- Data rates and maximum network lengths
- 125 kbps / 500 m; 250 kbps / 250 m; 500 kbps / 100 m
- Network channels
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-DNB is a DeviceNet bridge module from Rockwell's ControlLogix 1756 range. It connects a ControlLogix chassis to a DeviceNet network at 125 Kbps (500 m), 250 Kbps (250 m) or 500 Kbps (100 m) with up to 64 nodes. It has one open-style 5- or 10-pin DeviceNet linear plug and a USB port (12 Mbps) for temporary local programming, draws 400 mA at 5.1 V DC and 60 mA from the 11…25 V DC DeviceNet supply. It installs in any slot of a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-DNB ControlLogix DeviceNet Scanner Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756-DNB |
| Category | PLCs & I/O |
| Network | DeviceNet |
| Backplane current | 400 mA at 5.1 V DC; 0 mA at 24 V DC |
| DeviceNet network power requirements | For CE LVD compliance, use a SELV or PELV source. For UL compliance, use a Class 2 or limited-voltage/current source. |
| Data rates and maximum network lengths | 125 kbps / 500 m; 250 kbps / 250 m; 500 kbps / 100 m |
| Network channels | 1 |
| Enclosure type | None (open-style) |
| DeviceNet current draw | 60 mA at 24 V DC |
| Network voltage | 11 to 25 V DC, Class 2/SELV |
| DeviceNet connector torque | 0.56 to 0.79 N·m (5 to 7 lb·in) |
