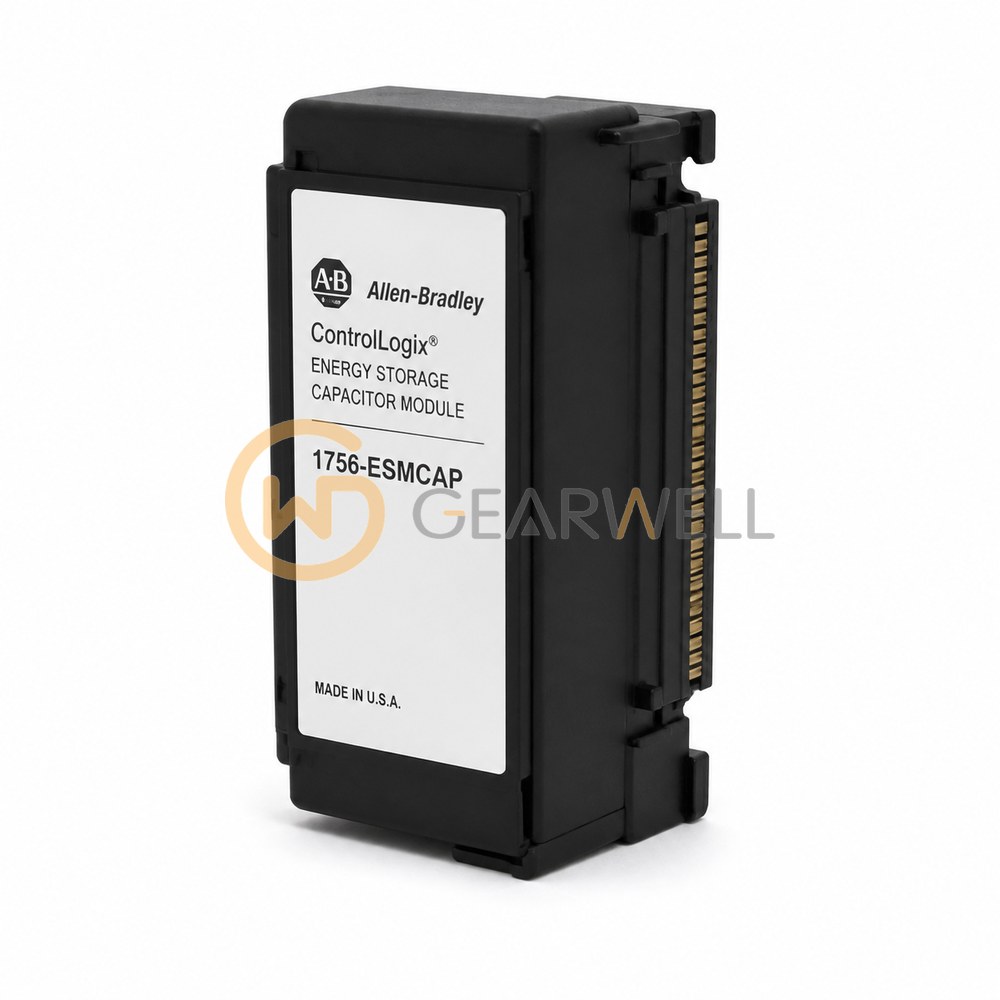

Allen-Bradley 1756-ESMCAP ControlLogix Energy Storage Module
- Brand
- Allen-Bradley
- Model
- 1756-ESMCAP
- GEARWELL SKU
- GWP-000003396
- Category
- PLCs & I/O
Key specifications
- Storage design
- Capacitor-based energy storage
- Module role
- Controller energy storage
- Installation
- Removable
- Product type
- ControlLogix Energy Storage Module
- Manufacturer lifecycle
- Active mature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-ESMCAP is a ControlLogix 5570 capacitor energy storage module from Rockwell's ControlLogix 1756 range. It is the standard capacitor energy storage module that ships installed in every ControlLogix 5570 controller in place of a battery; it is removable. It fits ControlLogix 5570 and GuardLogix 5570 controllers.
Technical reference
| Product name | Allen-Bradley 1756-ESMCAP ControlLogix Energy Storage Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756-ESMCAP |
| Category | PLCs & I/O |
| Storage design | Capacitor-based energy storage |
| Module role | Controller energy storage |
| Installation | Removable |
| Product type | ControlLogix Energy Storage Module |
| Manufacturer lifecycle | Active mature |
| Operating temperature | 0 to 60 °C |
| Product description | Allen-Bradley 1756-ESMCAP ControlLogix Energy Storage Module. A capacitor-based energy storage function. This capacitor module is an accessory for the specified controller family, not a replacement battery. |
| Current draw at 5.1 V DC | 330 mA |
| Compatible controller family | ControlLogix 5570 / GuardLogix 5570 primary controllers |
