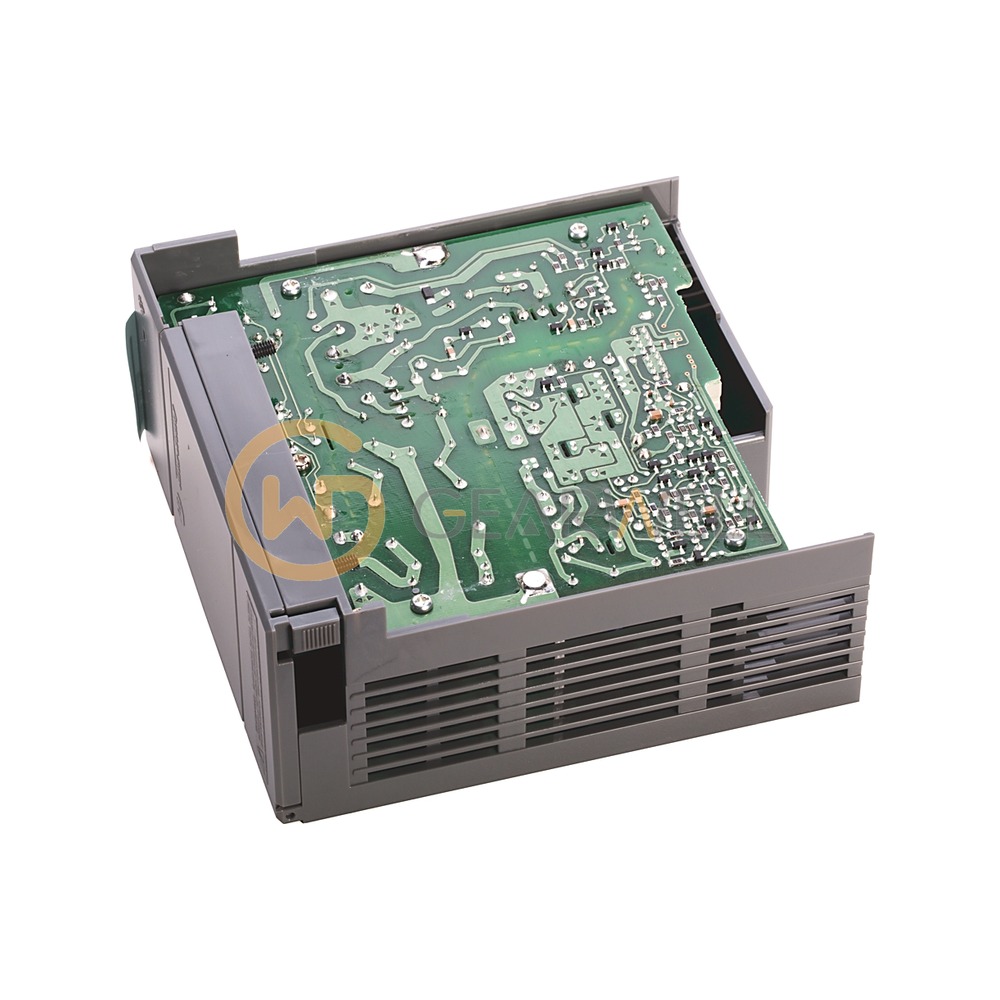

Allen-Bradley 1746-P2 SLC 500 Rack-Mount Power Supply 120/240V AC
- Brand
- Allen-Bradley
- Model
- 1746-P2
- GEARWELL SKU
- GWP-000014169
- Category
- Power Supplies
Key specifications
- Line voltage
- 85…132/170…265V AC, 47…63 Hz
- Catalog number
- 1746-P2
- Lifecycle status
- Discontinued
- Type / description
- SLC Rack Mounting Power Supply, 120/240 VAC, 5A
- Inrush current, max
- 20 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1746-P2 is an SLC 500 AC power supply for 85…132/170…265V AC, 47…63 Hz, with the input range set by a jumper. It supplies 5 A at 5V and 0.96 A at 24V to the backplane, plus 0.2 A at 24V DC for user devices; inrush current is 20 A max. It is rated for 0…60 °C, with current capacity derated by 5% above 55 °C.
Technical reference
| Product name | Allen-Bradley 1746-P2 SLC 500 Rack-Mount Power Supply 120/240V AC |
|---|---|
| Brand | Allen-Bradley |
| Model | 1746-P2 |
| Category | Power Supplies |
| Line voltage | 85…132/170…265V AC, 47…63 Hz |
| Catalog number | 1746-P2 |
| Lifecycle status | Discontinued |
| Type / description | SLC Rack Mounting Power Supply, 120/240 VAC, 5A |
| Inrush current, max | 20 A |
| Current capacity @ 5V | 5 A |
| Current capacity @ 24V | 0.96 A |
| User current capacity | 0.2 A @ 24V DC |
