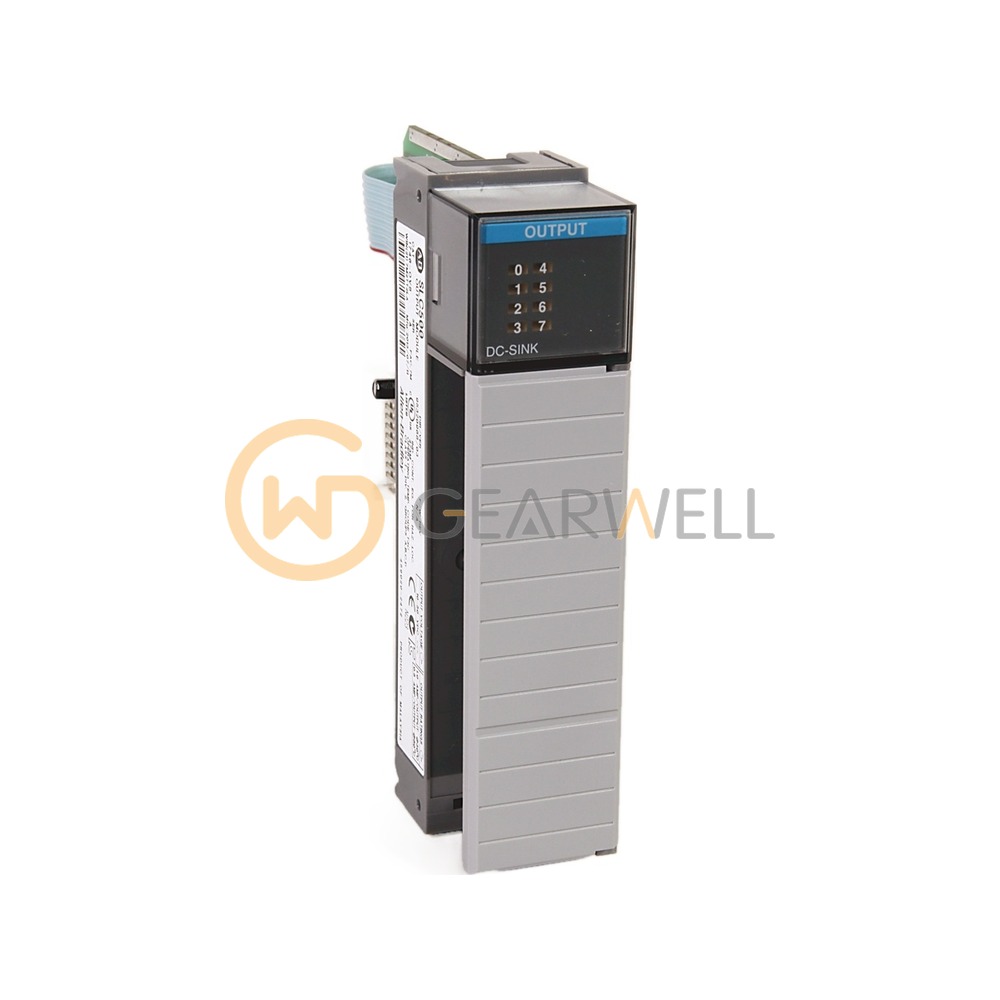

Allen-Bradley 1746-OV8 SLC 500 8-Point 24V DC Sinking Output Module
- Brand
- Allen-Bradley
- Model
- 1746-OV8
- GEARWELL SKU
- GWP-000014168
- Category
- PLCs & I/O
Key specifications
- Evidence
- Rockwell Automation publication 1747-SG001 (product web page not reachable)
- Catalog number
- 1746-OV8
- Type / description
- Current Sinking DC Output Module
- Number of outputs
- 8
- Points per common
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1746-OV8 is an 8-point 24V DC current sinking output module for 10…50V DC loads, with all 8 points on one common. Each point carries 1.0 A at 30 °C (0.5 A at 60 °C) and the module 8.0 A at 30 °C (4.0 A at 60 °C). It draws 135 mA at 5V from the backplane.
Technical reference
| Product name | Allen-Bradley 1746-OV8 SLC 500 8-Point 24V DC Sinking Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1746-OV8 |
| Category | PLCs & I/O |
| Evidence | Rockwell Automation publication 1747-SG001 (product web page not reachable) |
| Catalog number | 1746-OV8 |
| Type / description | Current Sinking DC Output Module |
| Number of outputs | 8 |
| Points per common | 8 |
| Backplane current @ 5V | 135 mA |
| Operating voltage range | 10…50V DC |
