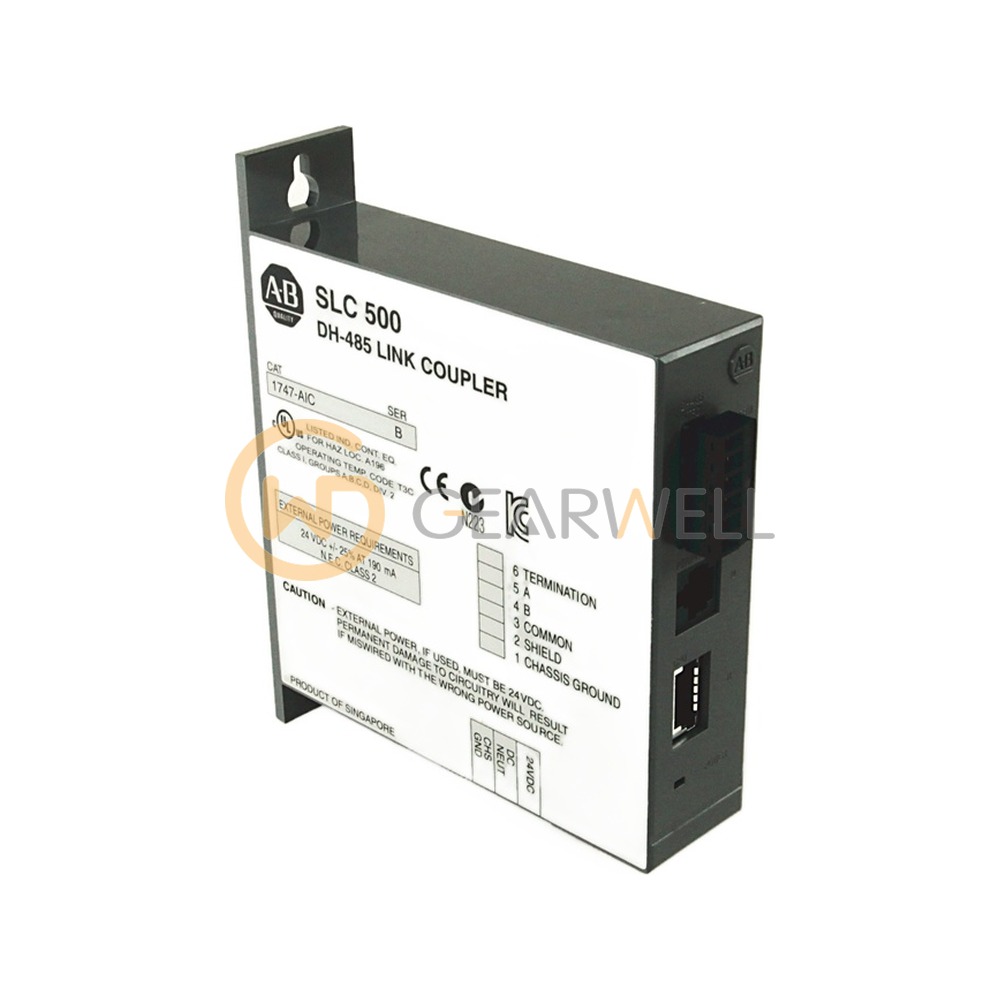

Allen-Bradley 1747-AIC SLC 500 DH-485 Isolated Link Coupler
- Brand
- Allen-Bradley
- Model
- 1747-AIC
- GEARWELL SKU
- GWP-000014170
- Category
- Industrial Communication
Key specifications
- Class
- Couplers, Communication Modules
- Network
- DH-485
- Isolation
- Comm circuits: 500 V DC
- Description
- SLC Isolated Link Coupler
- Catalog number
- 1747-AIC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1747-AIC is the panel-mounted isolated link coupler that connects SLC 5/01, SLC 5/02 and SLC 5/03 processors to a DH-485 network, one coupler per processor. A coupler is needed at each end when a device is more than 6.09 m (20 ft) from the processor. A 1747-C11 processor cable is included, and the coupler draws 85 mA at 24V DC.
Technical reference
| Product name | Allen-Bradley 1747-AIC SLC 500 DH-485 Isolated Link Coupler |
|---|---|
| Brand | Allen-Bradley |
| Model | 1747-AIC |
| Category | Industrial Communication |
| Class | Couplers, Communication Modules |
| Network | DH-485 |
| Isolation | Comm circuits: 500 V DC |
| Description | SLC Isolated Link Coupler |
| Catalog number | 1747-AIC |
| Included cable | 1747-C11 |
| Lifecycle status | Discontinued |
