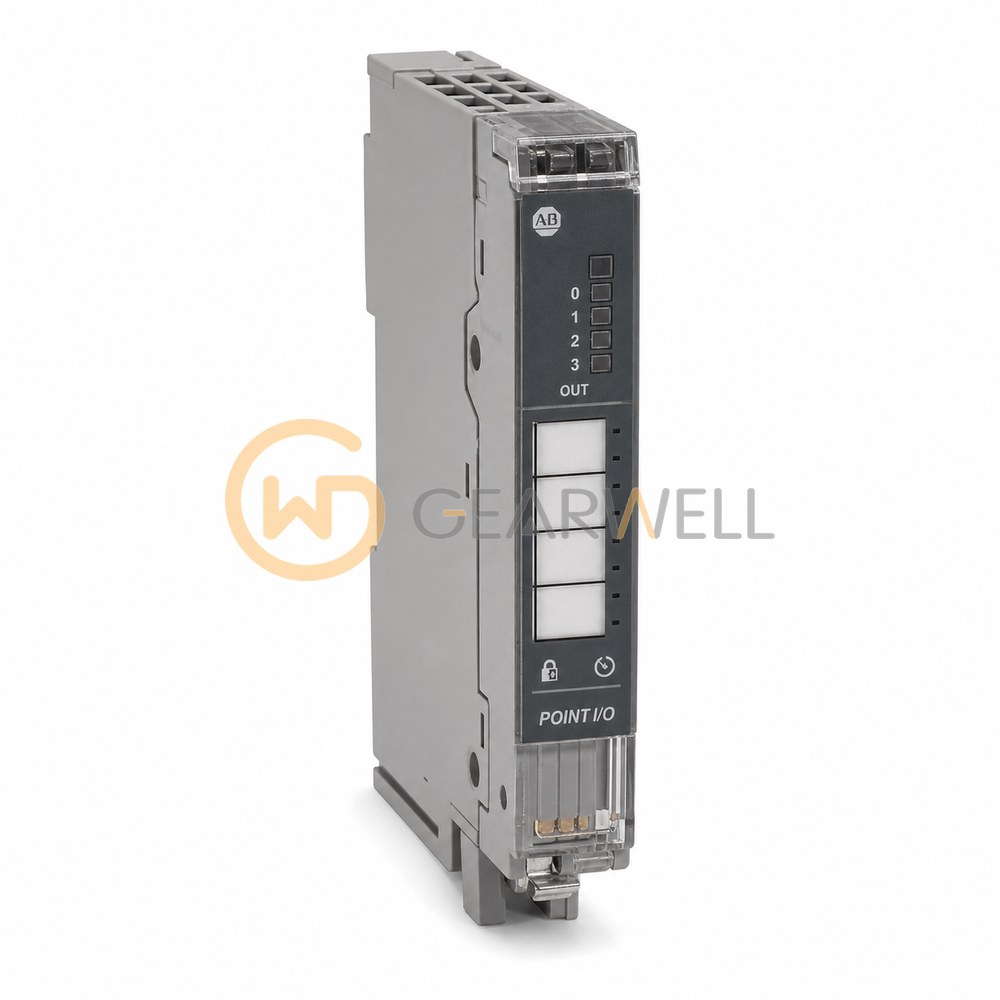

Allen-Bradley 1734-OB4E POINT I/O 4-Point Protected Output Module
- Brand
- Allen-Bradley
- Model
- 1734OB4E
- GEARWELL SKU
- GWP-000004140
- Category
- PLCs & I/O
Key specifications
- Output channels (Series C)
- 4 nonisolated sourcing outputs in one group.
- Output signal delay (Series C)
- 0.1 ms maximum, off-to-on and on-to-off.
- Field supply (Series C)
- 24 V DC nominal; 10…28.8 V DC.
- Product type
- POINT I/O 4-point electronically protected sourcing output module
- Output current limits (Series C)
- 1 A maximum per output; 3 A maximum per module.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-OB4E is a POINT I/O digital output module with 4 sourcing outputs in 1 group for 24V DC (10…28.8V DC). Outputs are electronically protected and the module reports diagnostics. It draws 75 mA from the POINTBus. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-OB4E POINT I/O 4-Point Protected Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734OB4E |
| Category | PLCs & I/O |
| Output channels (Series C) | 4 nonisolated sourcing outputs in one group. |
| Output signal delay (Series C) | 0.1 ms maximum, off-to-on and on-to-off. |
| Field supply (Series C) | 24 V DC nominal; 10…28.8 V DC. |
| Product type | POINT I/O 4-point electronically protected sourcing output module |
| Output current limits (Series C) | 1 A maximum per output; 3 A maximum per module. |
| Compatible terminal bases (Series C) | 1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S, 1734-TOP, 1734-TOPS, 1734-TOP3 or 1734-TOP3S. |
| Lifecycle status | Active |
| POINTBus current (Series C) | 75 mA maximum at 5 V DC. |
| Off-state leakage (Series C) | 0.5 mA maximum at 28.8 V DC. |
| Temperature Rating | -20…55 °C (-4…131 °F) |
| Product description | 4 nonisolated sourcing outputs in one group. Its outputs are electronically protected. |
