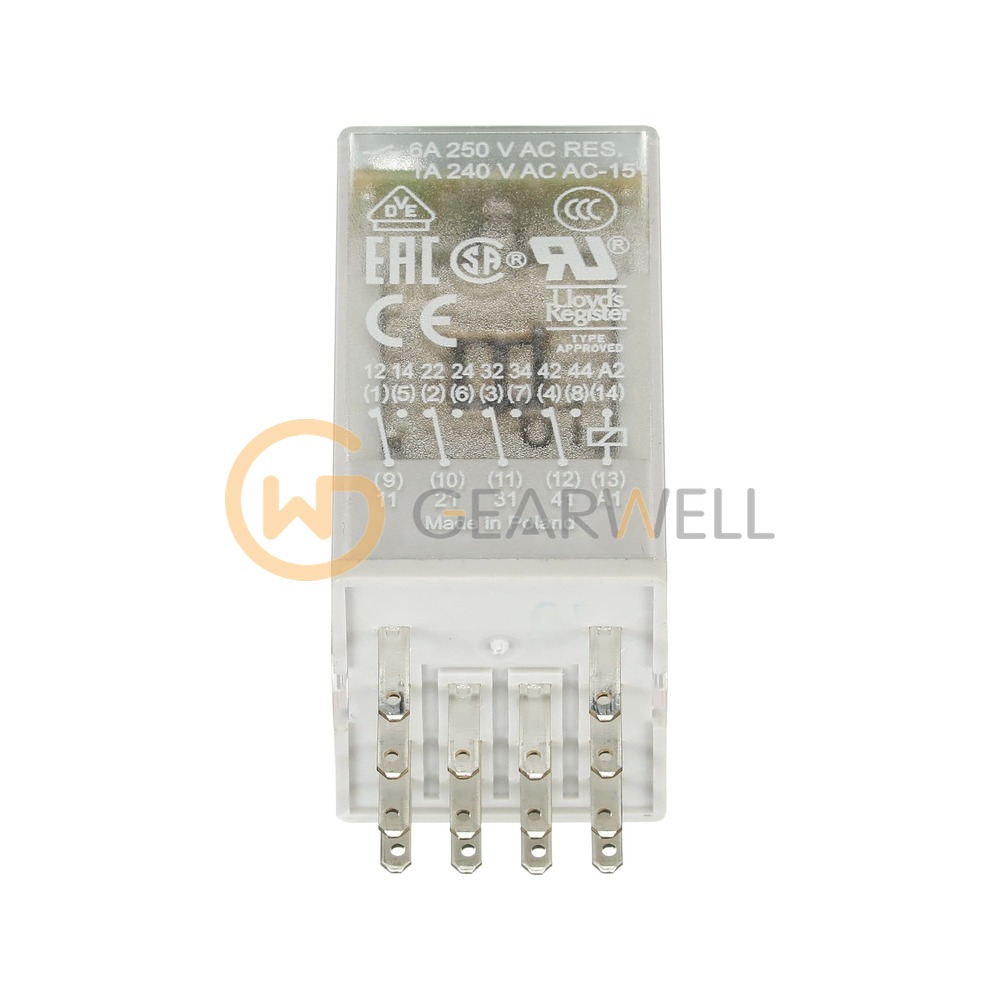

ABB CR-M110AC4L CR-M Pluggable Interface Relay 4 c/o 110 V AC
- Brand
- ABB
- Model
- CR-M110AC4L
- GEARWELL SKU
- GWP-000011173
- Category
- Contactors & Starters
Key specifications
- Contacts
- 4 c/o (SPDT)
- Indicator
- LED
- Product ID
- 1SVR405613R7100
- Coil voltage
- 110 V AC
- Contact rating
- 250 V / 6 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CR-M110AC4L is a CR-M pluggable miniature interface relay (order code 1SVR 405 613 R7100) with LED, 4 c/o (SPDT) contacts rated 250 V, 6 A and a rated control supply voltage of 110 V AC. Ambient temperature for operation of the AC versions is -40...+55 °C, rated insulation voltage is 250 V AC and mounted dimensions are 21.2 x 27.5 x 35.6 mm. It plugs into a CR-M logical socket such as the CR-M4LS socket.
Technical reference
| Product name | ABB CR-M110AC4L CR-M Pluggable Interface Relay 4 c/o 110 V AC |
|---|---|
| Brand | ABB |
| Model | CR-M110AC4L |
| Category | Contactors & Starters |
| Contacts | 4 c/o (SPDT) |
| Indicator | LED |
| Product ID | 1SVR405613R7100 |
| Coil voltage | 110 V AC |
| Contact rating | 250 V / 6 A |
| Degree of protection | IP40 |
