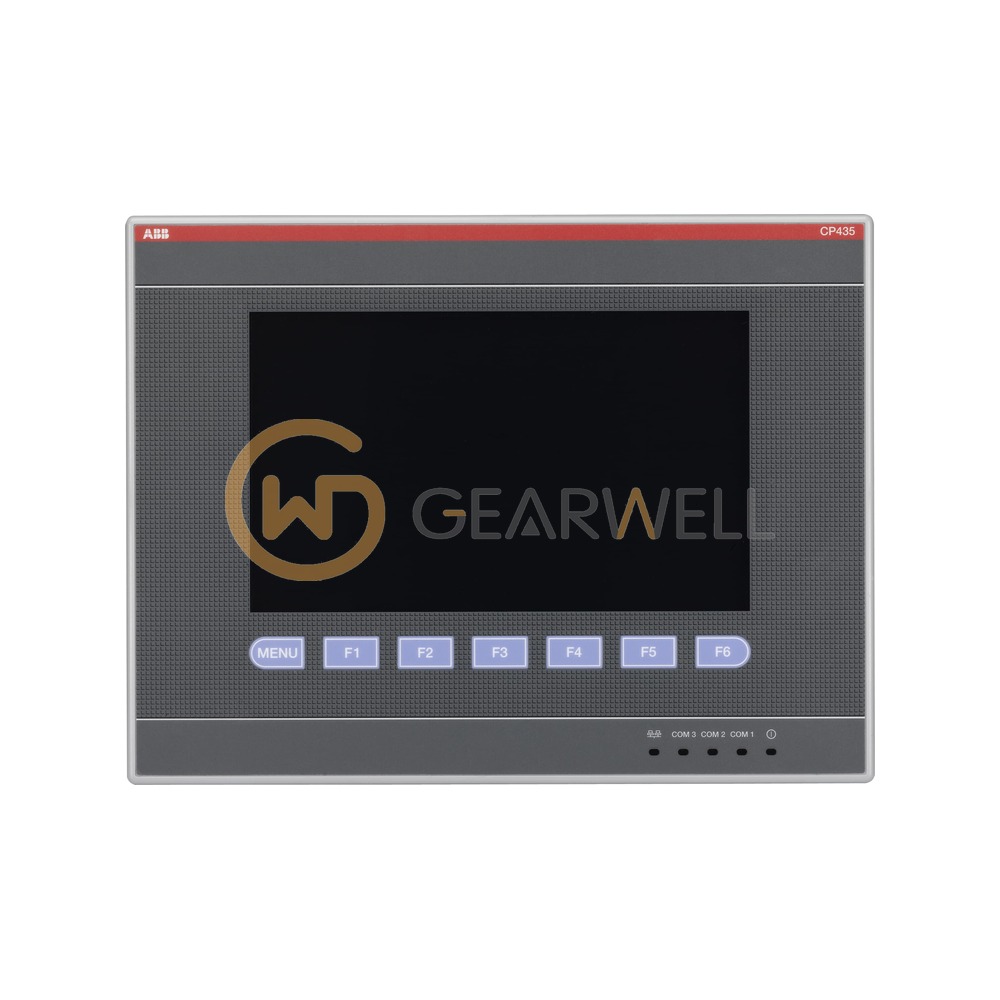

ABB CP435T CP400 control panels 7" TFT touchscreen control panel
- Brand
- ABB
- Model
- CP435T
- GEARWELL SKU
- GWP-000014872
- Category
- HMIs & Industrial PCs
Key specifications
- Display
- 7" TFT colour, resistive touch
- Resolution
- 800 x 480 pixel
- Serial ports
- RS232/RS485; RS232/RS422/RS485
- Function keys
- 6
- Supply voltage
- 20.4 ... 27.6 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CP435T is a CP400 series operator panel (order code 1SBP 260 193 R1001) with a 7" touch screen, 64000 colors TFT, 800 x 480 pixels and no Ethernet port (the Ethernet version is the CP435T-ETH); weight is 1.200 kg. The CP400 range has a 32 bit RISC CPU, real time clock, macro and ladder functions, 24 V DC ± 15% supply, IP65 class protection and UL certification.
Technical reference
| Product name | ABB CP435T CP400 control panels 7" TFT touchscreen control panel |
|---|---|
| Brand | ABB |
| Model | CP435T |
| Category | HMIs & Industrial PCs |
| Display | 7" TFT colour, resistive touch |
| Resolution | 800 x 480 pixel |
| Serial ports | RS232/RS485; RS232/RS422/RS485 |
| Function keys | 6 |
| Supply voltage | 20.4 ... 27.6 V DC |
| User program memory | 8 MB ROM |
| Dimensions (W x H x D) | 231 x 176 x 47 mm |
| Operating temperature | 0 ... +50 °C |
