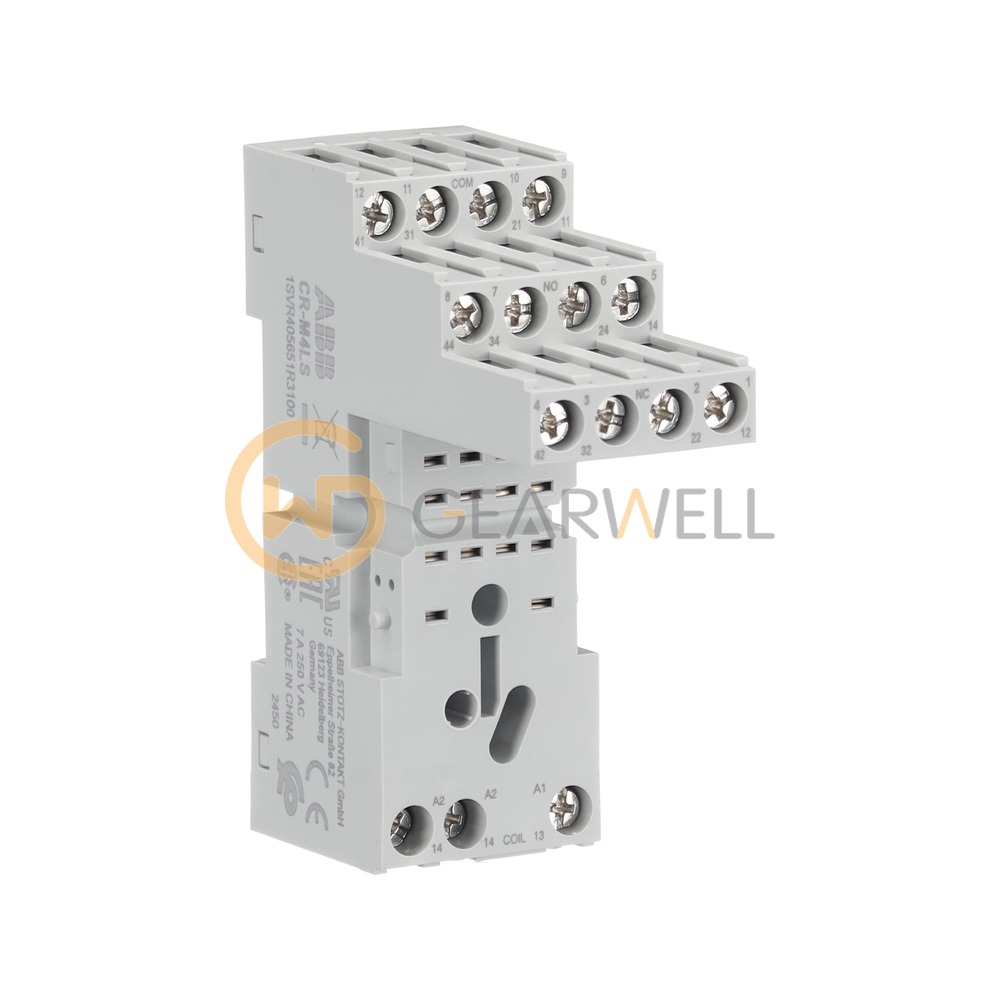

ABB CR-M4LS CR-M interface relays Logical socket for miniature relay
- Brand
- ABB
- Model
- CR-M4LS
- GEARWELL SKU
- GWP-000014537
- Category
- Relays & Controllers
Key specifications
- Function
- Socket for CR-M relays 2 c/o or 4 c/o
- Terminal type
- Screw terminals
- Product net weight
- 0.066 kg
- Dimensions (W x H x D)
- 27 x 61 x 82 mm
- Rated operational voltage
- 250 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CR-M4LS is the CR-M logical socket (order code 1SVR 405 651 R3100) with screw connection, for CR-M miniature interface relays with 2 or 4 c/o (SPDT) contacts; the CR-M4LC is the spring-terminal version.
Technical reference
| Product name | ABB CR-M4LS CR-M interface relays Logical socket for miniature relay |
|---|---|
| Brand | ABB |
| Model | CR-M4LS |
| Category | Relays & Controllers |
| Function | Socket for CR-M relays 2 c/o or 4 c/o |
| Terminal type | Screw terminals |
| Product net weight | 0.066 kg |
| Dimensions (W x H x D) | 27 x 61 x 82 mm |
| Rated operational voltage | 250 V |
| Rated operational current AC-12 (230 V) | 7 A |
