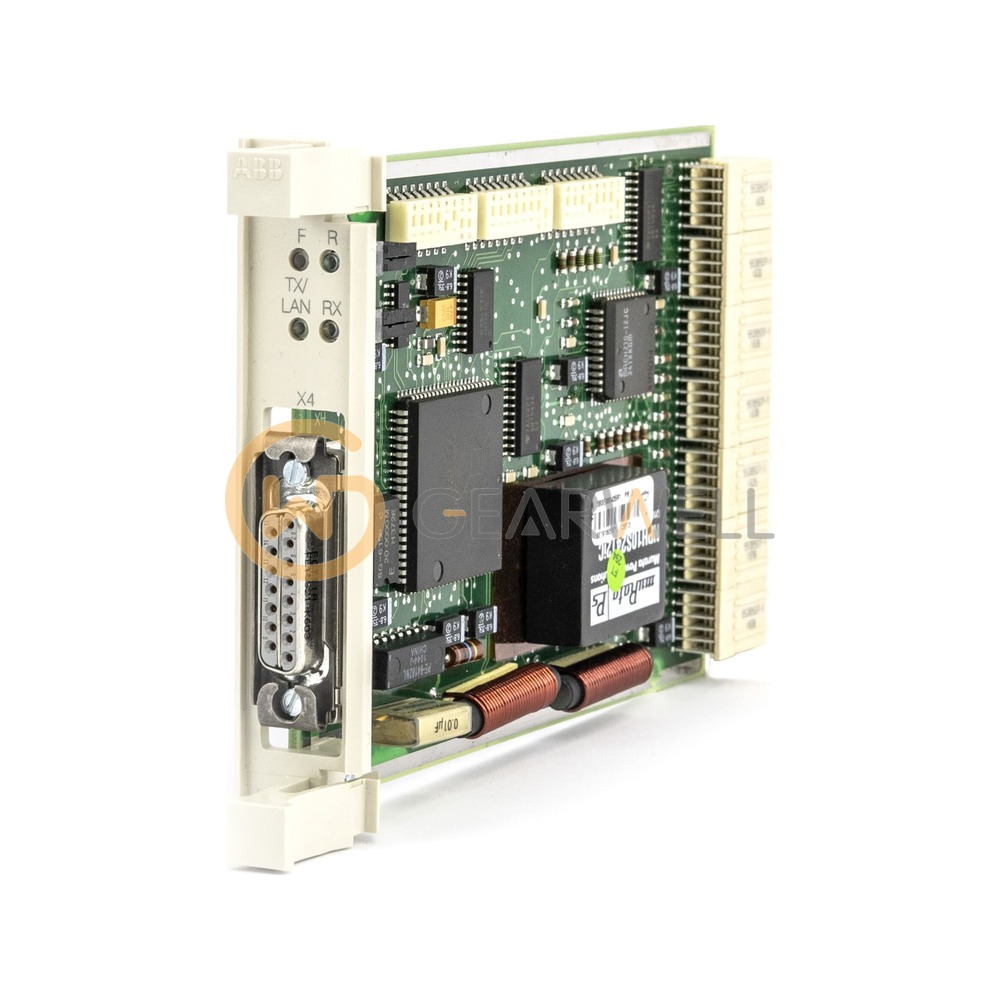

ABB CS513 IEEE 802.3 LAN module
- Brand
- ABB
- Model
- CS513
- GEARWELL SKU
- GWP-000014411
- Category
- Industrial Communication
Key specifications
- Network
- IEEE 802.3 LAN
- Protocol setting
- MB300 (std) / MB300E (extended) by switch
- Type designation
- CS513
- Product net width
- 108 mm
- Product net height
- 18 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CS513 is the MasterBus 300/300E interface of the Advant Controller 450, for communication with other stations of Advant OCS at the control network level. One controller takes up to 2 with execution in the main CPU (SC510/SC520 carrier) or up to 6 with execution in an SC520 slave CPU. Standard and low-load MasterBus 300/300E cannot coexist in the same controller.
Technical reference
| Product name | ABB CS513 IEEE 802.3 LAN module |
|---|---|
| Brand | ABB |
| Model | CS513 |
| Category | Industrial Communication |
| Network | IEEE 802.3 LAN |
| Protocol setting | MB300 (std) / MB300E (extended) by switch |
| Type designation | CS513 |
| Product net width | 108 mm |
| Product net height | 18 mm |
| Product net weight | 0.2 kg |
| Product net depth/length | 234 mm |
